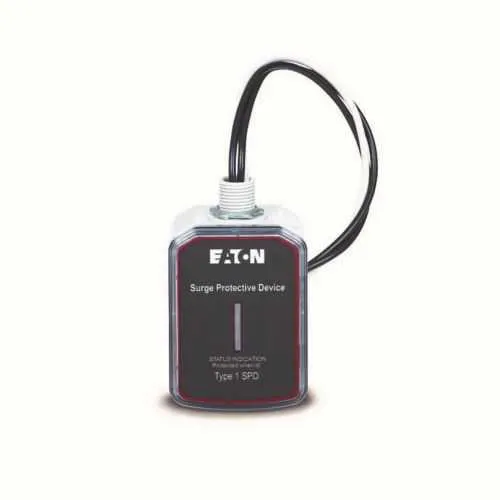

Eaton PX1-3Y101 Surge Protective Device - 50 kAIC
Part Number: PX1-3Y101
Quick Summary
The Eaton PX1-3Y101 surge protective device safeguards critical equipment from transient surges in three-phase power circuits. For engineers and maintenance teams, voltage spikes drive unplanned downtime, premature component wear, and higher repair costs. CE marking and IEC/EN safety alignment are common expectations for PX1 devices, with IP-rated enclosures and SIL considerations verified per application. The PX1-3Y101 integrates smoothly with 120/208V three-phase panels and Eaton protection schemes, delivering reliability, faster commissioning, and lower total cost of ownership. Secondary keywords like surge protection device, panel protection, and industrial power protection highlight the business value. By reducing nuisance trips and preserving sensitive loads, it supports longer uptime and predictable maintenance planning.
Product Information
Extended Description
PX1-3Y101 Eaton: Eaton Innovative Technology Protector surge protective device, Surge Protection Device, PX1 series, 50 kAIC, 120/208 wye, three phase
Product Name
Eaton PX1 surge protective device
Catalog Number
PX1-3Y101
UPC
786689805609
Product Length/Depth
2.5 in
Product Height
4.8 in
Product Width
2.9 in
Product Weight
1.25 lb
50 kAIC surge current rating delivers high-energy transient absorption for critical loads. This capability reduces insulation stress on transformers, drives, and control electronics, diminishing the likelihood of insulation breakdown or equipment misoperation that disrupts production. In practice, it supports protection for motor drives, PLCs, and panelboard assemblies across varied line conditions in manufacturing lines and process facilities. Three-phase protection across a 120/208V wye supply ensures synchronized clamping on all lines, preventing imbalanced transients that can degrade sensors and power electronics. Balanced protection minimizes phase-to-phase excursions, reducing nuisance trips and extending the life of connected loads. This arrangement is especially valuable in OEM-controlled panels, machine control rooms, and distribution blocks where uptime and reliability directly impact throughput. The PX1-3Y101 uses a compact footprint (2.5 in depth, 4.8 in height, 2.9 in width) and a modest 1.25 lb weight. That small form factor simplifies retrofits and enables installation in crowded panels or retrofit projects without extensive enclosure redesign. Its size also supports quicker commissioning, streamlined wiring, and compatibility with standard panel hardware used in industrial environments. As part of the Eaton PX1 series, PX1-3Y101 integrates with Eaton protection schemes and the broader SPD portfolio. This compatibility reduces procurement complexity and encourages a unified protection strategy across multiple machines, lines, and facilities. Wiring and footprint are aligned with common industrial practices, facilitating straightforward installation in new builds and upgrades. Deploying the PX1-3Y101 translates to measurable reliability gains, including fewer unplanned outages and lower spare-part consumption. The device helps protect power electronics, relays, and controls, driving improved process stability and predictability. Over time, this supports reduced maintenance costs and a clearer path to achieving uptime targets in critical production lines. Installation and accessibility considerations include ensuring adequate clearance for venting and service access, with the 2.5 inch depth allowing denser panel layouts. For engineers, the result is faster project timelines and lower field-change risk during upgrades.
