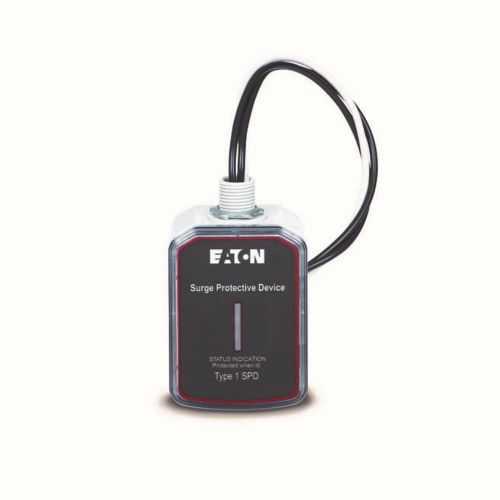

Eaton PX1-3Y300 Surge Protective Device - 50 kAIC
Part Number: PX1-3Y300
Quick Summary
The Eaton PX1-3Y300 surge protective device protects three-phase power systems in industrial facilities. Outages and equipment damage from voltage spikes threaten uptime and inflate maintenance costs. While regional certifications vary, devices in the PX1 family align with common safety standards such as CE marking and IP-rated enclosures to support compliant installations. Designed for 347/600 V three-phase systems, it helps protect critical assets, reduce downtime, and simplify procurement with a compact, standardized form factor. This combination delivers measurable business value by improving power reliability and extending asset life. Integrating the PX1-3Y300 into panel networks simplifies sourcing and supports a standardized protection strategy across facilities.
Product Information
Extended Description
PX1-3Y300 Eaton: Eaton Innovative Technology Protector surge protective device, Surge Protection Device, PX1 series, 50 kAIC, 347/600 wye, three-phase
Product Name
Eaton PX1 surge protective device
Catalog Number
PX1-3Y300
UPC
786689805647
Product Length/Depth
2.5 in
Product Height
4.8 in
Product Width
2.9 in
Product Weight
1.25 lb
50 kAIC surge capacity forms the core protection. It absorbs high-energy transients, limiting voltage excursions and protecting insulation and electronics from damage. In manufacturing lines, this reduces repair costs, minimizes unplanned downtime, and protects drives, PLCs, and motor controls from damaging spikes. Three-phase 347/600 V compatibility ensures the PX1-3Y300 integrates with common industrial power networks. This alignment supports protection of distribution panels, motor drives, and lighting circuits without reconfiguring existing equipment. The device responds quickly to transients, helping maintain stable performance across the system. Compact dimensions (2.5 in depth, 4.8 in height, 2.9 in width) and a 1.25 lb weight simplify retrofits in crowded panels. The small footprint enables easier door clearance, panel upgrades, and easier field mounting in retrofit projects. This compact form factor also reduces enclosure changes and minimizes installation time. PX1 series compatibility ensures standardized protection across the facility. Using a single family for SPD components simplifies stocking, training, and maintenance routines. This approach supports consistent protection strategies from main panels to localized subpanels. Clear cataloging with PX1-3Y300 and UPC 786689805647 improves ordering accuracy and traceability. Standardized part numbers streamline BOM creation, audits, and warranty claims. Shared documentation across sites accelerates procurement and reduces mismatch during upgrades. Industry practice shows that investing in robust surge protection reduces total cost of ownership over time. While initial costs are modest, the reduction in unplanned downtime, spare parts, and downtime-related productivity losses adds measurable ROI. The PX1-3Y300 offers a reliable, scalable solution for industrial protection programs.
Get a Quick Quote for a Eaton PX1-3Y300
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PX1-3Y300?
Enquire Now
FAQs
Install the PX1-3Y300 in the protected panel or switchgear enclosure following the manufacturer’s mounting and wiring guidelines. Verify correct three-phase wiring (L1, L2, L3) and ensure adequate clearance for the compact 2.5 x 4.8 x 2.9 inch housing. Use proper torque and secure terminations to maintain surge performance and reliability.
The PX1-3Y300 is a three-phase SPD rated for 347/600 V systems with a 50 kAIC surge capacity. It carries catalog number PX1-3Y300 and UPC 786689805647, and it weighs about 1.25 lb with dimensions of 2.5 in (depth), 4.8 in (height), and 2.9 in (width).
Yes. The PX1-3Y300 is part of Eaton’s PX1 surge protective devices family, designed for consistent protection performance and straightforward procurement across panels, subpanels, and distributed protection schemes.
The data provided does not specify explicit certifications. For regional compliance, verify CE marking and any local IP enclosure or safety standards required in your region, and confirm compatibility with your facility’s electrical reliability programs.
Investing in the PX1-3Y300 typically reduces unplanned downtime and spare-parts consumption by mitigating surge-related damage to critical equipment. ROI depends on site risk, downtime costs, and maintenance schedules, but the device supports a predictable protection strategy and lifecycle planning.
