Eaton PX1-NN501 PX1 surge protective device - 50 kAIC
Part Number: PX1-NN501
Quick Summary
The PX1 surge protective device from Eaton protects three-phase power systems in industrial automation and critical equipment. In practice, engineers face downtime and costly equipment damage from transient surges, especially in harsh factory environments with sensitive drives and PLCs. Designed to mitigate these events, the PX1 line targets fast impulse currents and voltage transients with robust response, helping you maintain uptime and extend asset life. Typical critical certifications for this class include CE marking, UL listing, and IEC standards, which support safe operation across global installations. With compatibility across standard 3-phase panels and straightforward wiring, this protection solution reduces maintenance costs while boosting system reliability and regulatory compliance.
Product Information
Extended Description

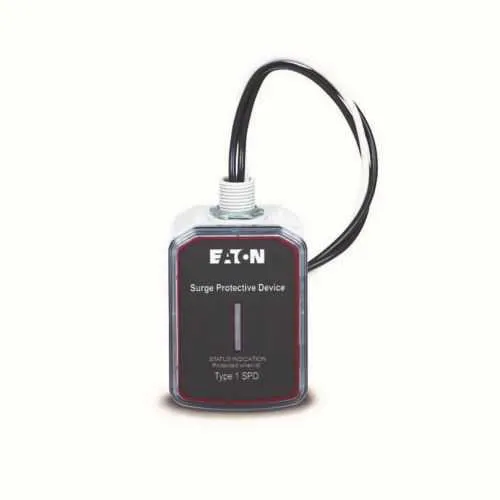

PX1-NN501 Eaton: Eaton Innovative Technology Protector surge protective device, Surge Protection Device, PX1 series, 50 kAIC, 600 delta, three phase
Product Name
Eaton PX1 surge protective device
Catalog Number
PX1-NN501
UPC
786689805654
Product Length/Depth
2.5 in
Product Height
4.8 in
Product Width
2.9 in
Product Weight
1.25 lb
Feature: 50 kAIC surge rating delivers high-energy transient protection. Business Impact: reduces the risk of insulation damage, minimizes unplanned downtime, and lowers maintenance costs for drive systems and PLCs. Application: suitable for three‑phase motor drives and control panels in manufacturing and process facilities. Feature: Three‑phase protection with 600 V delta rating ensures consistent clamping across all lines. Business Impact: prevents cascading faults in MCCs and panel boards, improving system reliability and uptime. Application: clean interfaces in automation cabinets, servo drives, and power distribution units. Feature: Compact footprint of 2.5 in depth, 4.8 in height, and 2.9 in width, with a 1.25 lb weight. Business Impact: enables easy retrofits in crowded switchgear and saves panel space, reducing enclosure costs. Application: ideal for retrofit projects and new builds in compact electrical rooms. Feature: Standard 3-phase mounting and simple wiring simplify installation. Business Impact: shortens commissioning times, reduces field wiring errors, and supports scalable protection as plants expand. Application: panel builders, OEM integrators, and service technicians configuring Eaton SPD protection in new panels. Feature: Eaton Innovative Technology Protector and reliable protection for harsh environments. Business Impact: improves asset uptime and supports compliance with electrical safety and protection standards. Application: applies to industrial automation, manufacturing, and process industries. Feature: Clear labeling and traceability with catalog numbers and UPC support procurement workflows. Business Impact: streamlines asset management and reduces order errors in maintenance programs. Application: ideal for OEMs and maintenance teams managing SPD inventories.
Get a Quick Quote for a Eaton PX1-NN501
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PX1-NN501?
Enquire Now
FAQs
To install PX1-NN501, shut down power and verify the circuit is de-energized. Mount the device in a compatible panel with adequate clearance for heat dissipation, then connect the three incoming phase conductors and any required neutral per the schematic. Apply proper torque to terminal screws, secure wiring with strain relief, and re-energize only after labeling and verification.
PX1-NN501 delivers a 50 kAIC surge rating for three-phase systems with a 600 V delta configuration. This high-energy rating captures large transient currents from switching events and grid faults, protecting downstream drives, motors, and PLCs while reducing insulation stress and maintenance costs.
Yes. The PX1-NN501 is designed for three-phase protection and is well suited for motor drives, PLC racks, and panel boards. It minimizes downtime from surge events, extends equipment life, and its compact form factor eases retrofit projects without sacrificing protection quality.
Typical certifications for this class include CE marking, UL listings, and IEC standards to support global compliance and electrical safety. Always verify the exact certifications on the product labeling or datasheet for your region, as listings may vary by variant and market.
PX1-NN501 measures 2.5 in in depth, 4.8 in in height, and 2.9 in in width, weighing 1.25 lb. These compact dimensions enable easy mounting in crowded panels and retrofit scenarios, while standard three-phase mounting simplifies integration with existing switchgear.
