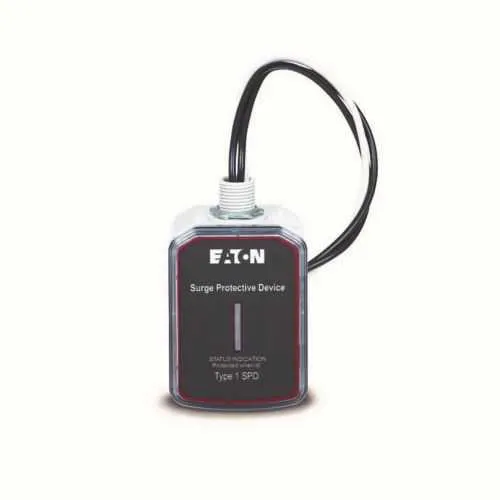

Eaton PX3-3Y101 Surge Protective Device - 50 kAIC
Part Number: PX3-3Y101
Quick Summary
The Eaton PX3-3Y101 Surge Protective Device protects electrical systems from transients in three-phase power networks. Lightning and switching surges can damage sensitive equipment, interrupt production, and drive up maintenance costs—this device helps prevent that. Key considerations for industrial protection include a robust surge rating, suitable voltage, and dependable enclosure performance; the PX3-3Y101 provides a 50 kAIC capacity and a 120/208 V wye configuration, aligning with common system requirements. Designed to integrate with typical panel builds, it supports fast procurement, predictable lead times, and reliable uptime. For engineers and procurement teams, it offers a balance of protection, compatibility, and total cost of ownership.
Product Information
Extended Description
PX3-3Y101 Eaton: Eaton Innovative Technology Protector surge protective device, Surge Protection Device, PX3 series, 50 kAIC, 120/208 wye, three phase
Product Name
Eaton PX3 surge protective device
Catalog Number
PX3-3Y101
UPC
786689805678
Product Length/Depth
2.5 in
Product Height
4.8 in
Product Width
2.9 in
Product Weight
1.25 lb
Feature → 50 kAIC surge rating → Business Impact → Protects critical loads from high-energy transients, reducing the likelihood of drive and PLC damage, leading to less unscheduled downtime and lower repair costs; Application → Ideal for industrial and commercial facilities with demanding transient environments. Feature → 120/208 V wye three-phase configuration → Business Impact → Ensures compatibility with common power distribution schemes, enabling straightforward integration into panelboards and switchgear; Application → Suitable for three-phase systems in data centers and manufacturing floors. Feature → Compact dimensions (2.5 in depth, 4.8 in height, 2.9 in width) and weight (1.25 lb) → Business Impact → Easier installation and panel fitment, saving space and labor during commissioning; Application → Fits tight electrical enclosures with minimal footprint. Feature → Catalog-driven procurement (PX3-3Y101) → Business Impact → Streamlines ordering, reduces lead times, and supports consistent protection strategies across facilities; Application → Useful for standardized protection across multiple panels. Feature → 120/208 V protection for three-phase systems → Business Impact → Maintains power quality for motors, drives, and control systems, improving reliability and reducing nuisance tripping; Application → Common in commercial and light-industrial environments.
Get a Quick Quote for a Eaton PX3-3Y101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PX3-3Y101?
Enquire Now
FAQs
To install the PX3-3Y101, mount the unit in a suitable panel ahead of critical loads in a three-phase 120/208 V system. Use the catalog number PX3-3Y101 for ordering, connect per the wiring diagram, and verify proper grounding. The device’s compact 2.5 in depth and 2.9 in width simplify enclosure fitment and reduce panel crowding, speeding commissioning.
With a 50 kAIC surge rating, the PX3-3Y101 absorbs and clamps transient energy before it reaches sensitive loads such as drives, PLCs, and sensors. This capability minimizes voltage excursions, preserves equipment life, and supports continuous operation in environments prone to lightning, switching transients, or grid disturbances—critical for uptime in manufacturing and data centers.
Yes. The PX3-3Y101 is designed to integrate into Eaton’s protection ecosystem and is listed with a standard 120/208 V wye three-phase configuration. It can be used alongside other PX3 family devices within the same panel or enclosure, simplifying procurement and stocking while ensuring consistent protection characteristics across the installation.
Certification details aren’t listed in the provided data. In practice, consult Eaton’s product specifications for CE marking, IP enclosure rating, and relevant safety standards in your region. When selecting a surge protector for critical equipment, verify compliance with your facility’s electrical codes, industry standards, and your project’s lifecycle requirements.
Investing in the PX3-3Y101 yields measurable uptime gains and reduced maintenance costs by limiting transient damage to motor drives, controllers, and sensors. Fewer unplanned outages translate to increased production throughput, lower spare part usage, and longer service intervals for protected equipment—key factors in a competitive, uptime-driven manufacturing environment.
