Eaton PXBCM-DISP-6-XV Power Xpert Branch Monitor Display - Color
Part Number: PXBCM-DISP-6-XV
Quick Summary
Power Xpert branch circuit monitor display from Eaton delivers real-time energy data and performance insights for electrical panels in industrial and commercial settings. Engineers often contend with fragmented metrics and delayed fault detection that hinder uptime and energy optimization. The device aligns with common certifications such as CE compliance and IP ratings, supporting safe operation in challenging environments; consult the Eaton datasheet for precise qualifications. By embedding this display in the Power Xpert ecosystem, teams gain faster visibility, improved commissioning, and measurable savings on energy management and maintenance.
Product Information
Extended Description

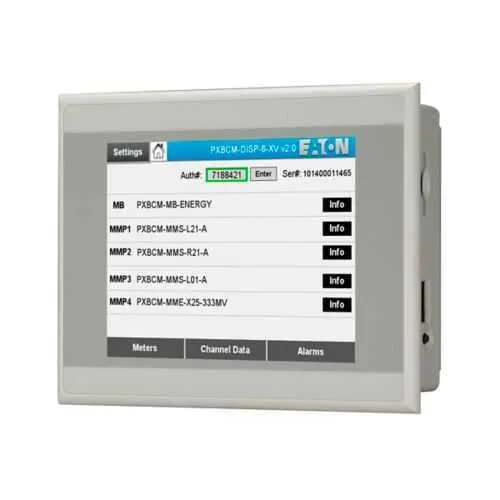

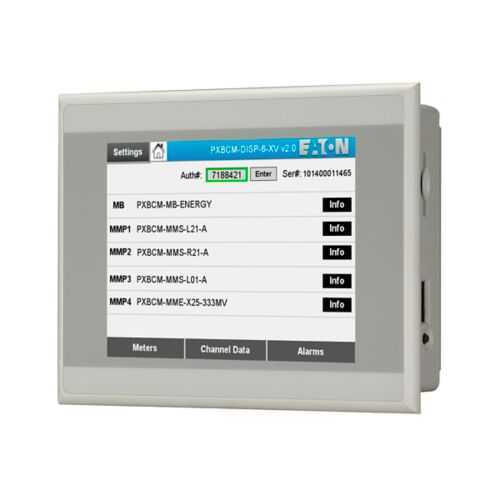

PXBCM-DISP-6-XV Eaton: Eaton Power Xpert branch circuit monitor, Color touchscreen display for Power Xpert Branch Circuit Monitor
Product Name
Eaton Power Xpert branch circuit monitor display
Catalog Number
PXBCM-DISP-6-XV
UPC
786689222451
Product Length/Depth
1.54 in
Product Height
5.24 in
Product Width
6.81 in
Product Weight
1.32 lb
Type
Accessory
Quantity
1
PXBCM meter color touchscreen display quick start guide
Power Xpert Branch Circuit Monitor 6 color touchscreen display features
Eaton's Power Xpert Branch Circuit Monitor
Eaton Specification Sheet - PXBCM-DISP-6-XV
The color touchscreen display delivers intuitive data visualization, accelerating decision-making and reducing commissioning time. This translates to lower operator error, quicker fault isolation, and more reliable panel operation in demanding environments. The compact form factor—1.54 in depth, 5.24 in height, and 6.81 in width—enables easy retrofits and clean installations across Eaton’s Power Xpert infrastructure, minimizing cabinet intrusion and enabling scalable deployments. Compatibility with the Power Xpert Branch Circuit Monitor ecosystem ensures seamless data integration, enabling centralized energy management and faster reporting for compliance and auditing. The included quick-start guides and downloadable datasheets support a smooth installation path, reducing on-site support needs and accelerating return on investment. Real-time measurements and clear visualization help teams optimize energy usage, reduce waste, and extend equipment life in manufacturing, facilities, and data centers.
Get a Quick Quote for a Eaton PXBCM-DISP-6-XV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXBCM-DISP-6-XV?
Enquire Now
FAQs
Begin by confirming catalog PXBCM-DISP-6-XV compatibility with your Power Xpert Branch Circuit Monitor lineup. Use the quick-start guide to wire the display to the monitor module, connect the touchscreen interface, and complete calibration in the Power Xpert software. The installation instructions PDF provides step-by-step visuals to reduce commissioning time.
Yes. The PXBCM-DISP-6-XV is designed as the color touchscreen display element for Power Xpert Branch Circuit Monitor systems, enabling real-time energy data visualization and seamless integration with existing Power Xpert dashboards for consistent monitoring across panels.
The device measures 1.54 in in depth, 5.24 in in height, and 6.81 in in width, with a weight of 1.32 lb. These compact dimensions support retrofit into crowded switchgear locations and standard electrical cabinets, reducing spatial constraints during installation.
The PXBCM-DISP-6-XV documentation references CE and IP considerations, supporting global compliance and enclosure protection expectations. For definitive certification statuses and region-specific approvals, consult the Eaton datasheet and regional compliance guidance before deployment.
Offering real-time energy visibility and fast fault detection, the display reduces downtime, improves energy management, and shortens commissioning cycles. When paired with Power Xpert, it enables more accurate reporting, supports compliance audits, and can lower total cost of ownership through enhanced asset reliability.
