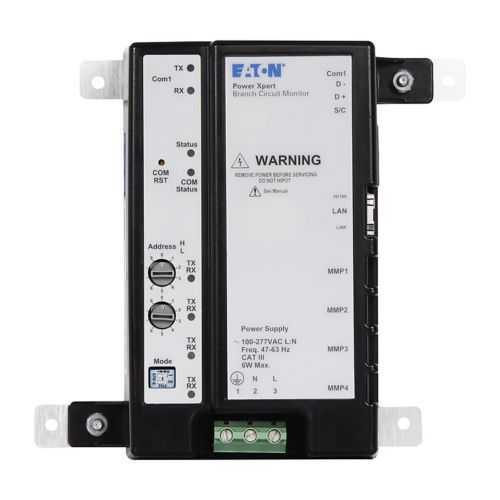

Eaton PXBCM-MB-BASIC Power Xpert branch circuit monitor meter base - UL Listed 61010-1
Part Number: PXBCM-MB-BASIC
Quick Summary
Power Xpert branch circuit monitor meter base provides precise electrical monitoring for single-phase distribution panels. Engineers often struggle to gain visibility into real-time current, voltage, and surge events across branch circuits, leading to delays and suboptimal energy management. This device carries UL Listed 61010-1, EN 61000-4-5 Surge, EN 61000-4-4 Electrical fast transient, and CSA standards, ensuring safety and regulatory compliance. As part of a modular PXBCM system, it integrates with network protocols like Modbus RTU, Modbus TCP, and BACnet/IP, enabling scalable energy management and reporting. For procurement teams, the compact form factor and external power source provide install flexibility and faster ROI through improved visibility and fault detection.
Product Information
Extended Description
PXBCM-MB-BASIC Eaton: Eaton Power Xpert branch circuit monitor meter base, External power source, 100-277 VAC, Single-phase, used with PXMBCM MMS or MME
Product Name
Eaton Power Xpert branch circuit monitor meter base
Catalog Number
PXBCM-MB-BASIC
UPC
786687035824
Product Length/Depth
6 in
Product Height
2.5 in
Product Width
6.8 in
Product Weight
1 lb
Warranty
1 year
Certifications
EN 61000-4-5 Surge CSA Std. C22.2 No. 1010.1.92 EN 61000-4-4 Electrical fast transient ANSI/IEEE Std C12.20 (0.5% accuracy) UL Listed 61010-1 File E185559
Model
External power source
Used with
PXBCM MMS or MME
ANSI % revenue accuracy
C12.20 (0.5)
Communications
Graphic Display (Local - Remote) Modbus RTU (RS - 485) BACnet/IP Modbus TCP
Current sensor input
333 mV
Number of CT inputs
Single-phase
Instrumentation
Watt Demand Current & Voltage - 3 Phase Max Vah Current & Voltage - 3 Phase Average Va demand Wh --Net Current Demand Va Wh --Positive & Negative Watts Current & Voltage - Per Phase
Voltage rating
100-277 V
Power Xpert Branch Circuit Monitor (PXBCM) installation guide
Accessing the PXBCM web interface IB150005EN
Eaton's Power Xpert Branch Circuit Monitor
Eaton Specification Sheet - PXBCM-MB-BASIC
Power Xpert Branch Circuit Monitor (PXBCM) system technical data sheet
Power Xpert Branch Circuit Monitor (PXBCM) system technical data sheet
Power Xpert Branch Circuit Monitor (PXBCM) system technical data sheet
Power Xpert Branch Circuit Monitor (PXBCM) system technical data sheet
External power source and 100-277 VAC operation enable installation in diverse facilities, including retrofit panels and new builds. This translates to greater deployment flexibility and reduced wiring complexity, delivering measurable energy visibility gains and faster commissioning. The device communicates via Modbus RTU RS-485, Modbus TCP, and BACnet/IP, simplifying integration with existing Building Management Systems and energy dashboards, which reduces engineering time and maintenance costs. Its instrumentation includes Watt Demand, Current & Voltage per phase, VA Demand, Wh, and Net/Positive/Negative energy, providing granular insights that improve demand response and power quality monitoring. Compliance ratings such as EN 61000-4-5 surge immunity, EN 61000-4-4 transient, and UL 61010-1 safety help minimize regulatory risk and noncompliance costs. The compact enclosure (6 in x 6.8 in x 2.5 in, 1 lb) with graphic display supports quick installation and local/remote visibility, reducing field service time.
Get a Quick Quote for a Eaton PXBCM-MB-BASIC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXBCM-MB-BASIC?
Enquire Now
FAQs
The PXBCM-MB-BASIC mounts as a meter base in single-phase panels and connects to PXBCM MMS or MME units. Ensure 100-277 VAC power is supplied externally, and wire the RS-485 Modbus or BACnet/IP network per the installation guide to enable communication.
Voltage rating is 100-277 V with 333 mV current sensor input. The instrument measures Watt Demand, Current & Voltage per phase, VA, and Wh with ANSI C12.20 0.5% accuracy, supporting reliable energy monitoring.
Yes. With Modbus TCP, BACnet/IP, and Modbus RTU interfaces, it integrates with building management systems and data-center energy dashboards, enabling centralized visibility and demand management for facilities of all sizes.
The unit is UL Listed 61010-1 and certified for EN 61000-4-5 surge and EN 61000-4-4 electrical fast transient immunity, alongside CSA C22.2 compliance, reducing regulatory risk and ensuring equipment safety.
A 1-year warranty accompanies the device. By delivering granular energy data, it enables faster fault diagnosis, improved energy efficiency, and predictable maintenance planning, contributing to faster ROI through reduced energy waste and downtime.
