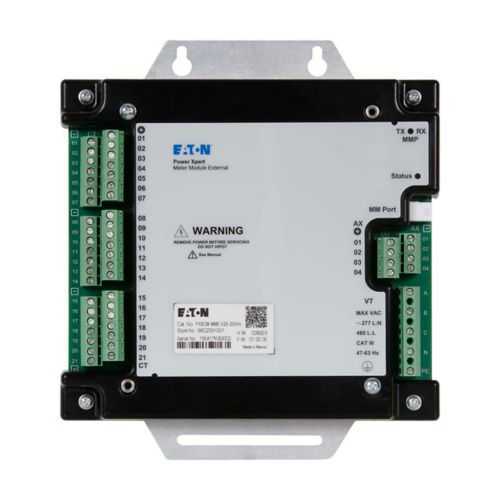

Eaton PXBCM-MME-X25-333MV Branch Circuit Monitor - 333mV CT
Part Number: PXBCM-MME-X25-333MV
Quick Summary
Power Xpert branch circuit monitor is a precise energy measurement tool used to optimize power usage in industrial facilities. Many engineers struggle with incomplete visibility into real-time energy usage and peak demand, leading to higher utility costs and missed optimization opportunities. It carries UL Listed 61010-1, ANSI/IEEE C12.20 (0.5% accuracy), and EN 61000-4-4/5 protections, ensuring robust performance in harsh electrical environments. When paired with the PXBCM-MB, it delivers modular, scalable monitoring with Modbus TCP/RTU compatibility for seamless integration into existing control architectures, helping teams meet commissioning timelines and demonstrate compliance to stakeholders.
Product Information
Extended Description
PXBCM-MME-X25-333MV Eaton: Eaton Power Xpert branch circuit monitor meter base 25 External 333 MV CT inputs, Max 277V L-N, 480V L-L, Single-, three-phase, used with PXMBCM-MB
Product Name
Eaton Power Xpert branch circuit monitor meter module external
Catalog Number
PXBCM-MME-X25-333MV
UPC
786685954769
Product Length/Depth
7.5 in
Product Height
1.5 in
Product Width
8.5 in
Product Weight
1 lb
Warranty
1 year
Compliances
Not Applicable
Certifications
EN 61000-4-4 Electrical fast transient EN 61000-4-5 Surge UL Listed 61010-1 File E185559 ANSI/IEEE Std C12.20 (0.5% accuracy) CSA Std. C22.2 No. 1010.1.92
Used with
PXBCM-MB
ANSI % revenue accuracy
C12.20 (0.5)
Communications
Modbus TCP Modbus RTU (RS - 485)
Current sensor input
333 mV
Number of CT inputs
Single-phase, three-phase
Instrumentation
Wh --Net Current & Voltage - 3 Phase Max Current Demand Watts Vah Current & Voltage - Per Phase Va demand Current & Voltage - 3 Phase Average Watt Demand Wh --Positive & Negative Va
Voltage rating
277V L-N, 480V L-L
Power Xpert Branch Circuit Monitor (PXBCM) installation guide
Eaton's Power Xpert Branch Circuit Monitor
Eaton Specification Sheet - PXBCM-MME-X25-333MV
Power Xpert Branch Circuit Monitor meter module external IL150002EN
Power Xpert Branch Circuit Monitor meter module external IL150002EN
The external meter module with 333 mV CT inputs enables precise current sensing across single-phase and three-phase systems. This reduces measurement error and improves billing accuracy, supporting more effective demand management. It is ideal for distribution panels in manufacturing plants, data centers, and large commercial facilities. Wide voltage compatibility of 277V L-N and 480V L-L ratings allows use across mixed systems without proxy transformers. This saves installation time and reduces equipment costs while enabling consistent monitoring across sites. Applications include facilities with mixed voltage infrastructure. Communications options include Modbus TCP and Modbus RTU (RS-485) supporting easy integration with PLCs and SCADA systems. The result is simplified wiring and faster deployment, lowering total cost of ownership. This compatibility is critical for multi-building campuses and data centers. Compliance and ruggedness are reinforced by UL Listed 61010-1, ANSI/IEEE C12.20, and EN 61000-4-4/5 protections, delivering reliable operation even in harsh electrical environments. A one-year warranty and extensive Eaton documentation support fast commissioning and long-term maintenance. Installation and compatibility with the PXBCM-MB base mean the unit slots into the Power Xpert monitoring ecosystem with minimal downtime. Installation guides IL150002EN and the system datasheets streamline setup and validation, while ongoing firmware updates keep the device current. Data capabilities include Wh Net, per-phase current and voltage, Watts, VA, and Watt Demand, delivering comprehensive energy visibility to drive optimization and regulatory reporting.
Get a Quick Quote for a Eaton PXBCM-MME-X25-333MV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXBCM-MME-X25-333MV?
Enquire Now
FAQs
Yes, the PXBCM-MME-X25-333MV external meter module is designed for use with the PXBCM-MB base. For installation, follow Eaton's IL150002EN guide: mount the module externally, connect the 333 mV CT inputs to the monitored circuits, and configure Modbus TCP/RTU in your PLC. The guide includes wiring diagrams, safety notes, and commissioning steps to ensure a smooth retrofit or new install.
The unit uses 333 mV current sensor inputs and supports voltage ratings of 277 V L-N and 480 V L-L, enabling monitoring of single-phase and three-phase loads. It provides 25 external CT inputs and delivers essential energy metrics such as Watts, VA, and Watt Demand, making it suitable for mixed-industrial electrical environments.
Yes. It is designed for commercial and industrial facilities requiring detailed energy visibility and demand management. With Modbus TCP/RTU integration and PXBCM-MB compatibility, it supports centralized monitoring across data centers, manufacturing floors, and large campuses, helping reduce peak charges and improve energy-related decision-making.
The monitor carries UL Listed 61010-1, EN 61000-4-4, EN 61000-4-5 surge protection, ANSI/IEEE C12.20 (0.5% accuracy), and CSA C22.2 No. 1010.1.92. These certifications verify safety, electromagnetic compatibility, and measurement accuracy, ensuring reliable operation in demanding environments and compliance with industry standards.
By delivering real-time energy and demand data, the PXBCM-MME-X25-333MV enables reduced peak charges, faster fault diagnosis, and improved regulatory reporting. Eaton provides a one-year warranty and extensive documentation, while integration with PXBCM-MB simplifies ongoing maintenance and firmware updates, contributing to a faster, measurable return on investment.
