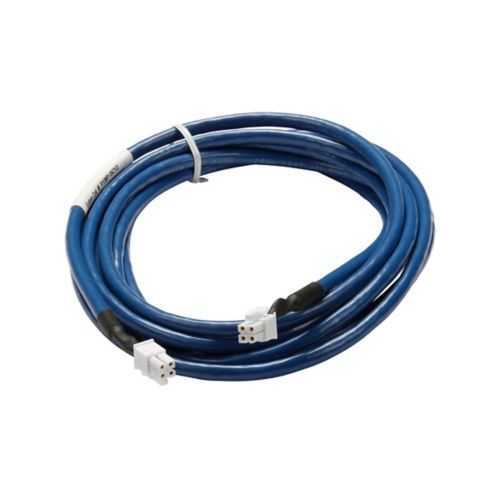

Eaton PXBCM-MMP-CBL03 Power Xpert branch circuit monitor cable - 1 year warranty
Part Number: PXBCM-MMP-CBL03
Quick Summary
Eaton Power Xpert branch circuit monitor cable enables real-time monitoring of branch circuits with PXBCM modules. Engineers often face wiring complexity and integration delays when adding monitoring capabilities to existing panels. This product carries a 1-year warranty and is designed for seamless compatibility with PXBCM-MB, PXBCM-MMS, and PXBCM-MME, helping reduce project risk and deployment time. In practice, it supports accurate data collection for energy analytics, improves panel reliability, and simplifies maintenance workflows. By leveraging these cables, electrical teams can accelerate qualification testing, shorten change orders, and deliver tangible cost savings through improved outage prevention and proactive fault detection.
Product Information
Extended Description
PXBCM-MMP-CBL03 Eaton: PXBCM Meter Module Port Cables - (2) Three foot cables used with PXBCM-MB and MMS or MME
Product Name
Eaton Power Xpert branch circuit monitor cable
Catalog Number
PXBCM-MMP-CBL03
UPC
786685954813
Product Length/Depth
10 in
Product Height
0.5 in
Product Width
0.5 in
Product Weight
0.9 lb
Warranty
1 year
Compliances
Contact Manufacturer
Special features
Used with PXBCM-MB and PXBCM-MMS and PXBCM-MME
Type
PXBCM Meter Module Port Cables
Used with
PXBCM-MB PXBCM-MME PXBCM-MMS
Feature: Two three-foot cables provided for PXBCM meter module port connections. Business Impact: Streamlines wiring, reduces misconnection risk, and speeds up initial setup. Application: Ideal for quick integration into existing Eaton PXBCM infrastructure in panel boards and switchgear. Feature: Compatibility with PXBCM-MB, PXBCM-MMS, and PXBCM-MME. Business Impact: Simplifies procurement and installation workflows, lowering engineering effort and project lead times. Application: Supports scalable deployments across multiple PXBCM modules in data centers and industrial facilities. Feature: Compact form factor (10 in length, 0.5 in height/width) and modest weight (0.9 lb). Business Impact: Easy to route within crowded panels and cabinets without special hardware; reduces cabinet modification needs. Application: Beneficial for retrofits and new builds where space is at a premium. Feature: Warranty and manufacturer guidance (Warranty: 1 year; Compliances: Contact Manufacturer). Business Impact: Ensures after-sales support and regulatory alignment, reducing ownership risk and ensuring traceability. Application: Suitable for regulated environments where formal confirmation of compliance is required before deployment. Feature: Product identification and traceability (UPC 786685954813). Business Impact: Facilitates stocking, BOM management, and warranty claims. Application: Useful for procurement, asset management, and maintenance planning in industrial automation projects.
Get a Quick Quote for a Eaton PXBCM-MMP-CBL03
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXBCM-MMP-CBL03?
Enquire Now
FAQs
The PXBCM-MMP-CBL03 ships as two 3-ft cables designed to plug into PXBCM-MB ports and connect to PXBCM-MMS. Route the cables so they avoid sharp bends and interference with other power conductors, then secure with standard cable ties. Verify correct port alignment per Eaton installation guidelines and test connectivity with the PXBCM software before commissioning.
Catalog number PXBCM-MMP-CBL03, UPC 786685954813, product length 10 in (per component data), weight 0.9 lb, warranty 1 year. Used with PXBCM-MB, PXBCM-MMS, and PXBCM-MME for Power Xpert branch circuit monitoring.
Yes. The cables are designed to interface with Eaton Power Xpert PXBCM modules, enabling reliable real-time data from branch circuits, which supports energy analytics and proactive capacity planning in data centers and other critical facilities.
Compliance indicates ‘Contact Manufacturer’ for formal certification confirmation. The product is backed by a 1-year warranty, and installation should follow Eaton’s recommended practices to maintain system integrity and regulatory alignment.
Benefits include faster wiring, reduced miswiring risk, and improved data quality for energy monitoring, which translate to lower downtime, fewer change orders, and better visibility into power usage—ultimately delivering measurable maintenance savings and uptime improvements.
