Eaton PXBCM-MMP-CBL04 Branch Circuit Monitor Cable - 1-yr
Part Number: PXBCM-MMP-CBL04
Quick Summary
The Eaton PXBCM-MMP-CBL04 is a branch circuit monitor cable used with Power Xpert meters in PXBCM networks. Field installations often suffer from unreliable cabling, limited space, and mis-wiring between the monitor module and port modules, leading to calibration delays. With a 1-year warranty and clear manufacturer guidance on compliance, this cable is optimized for PXBCM-MB, PXBCM-MMS, and PXBCM-MME assemblies, reducing installation time and risk. By delivering robust signal paths and compact form factors, it supports faster commissioning and improved data accuracy across industrial plants. Engineers value consistent connector interfaces, traceability via UPC 786685954820, and dependable performance in electrical protection and circuit control environments.
Product Information
Extended Description

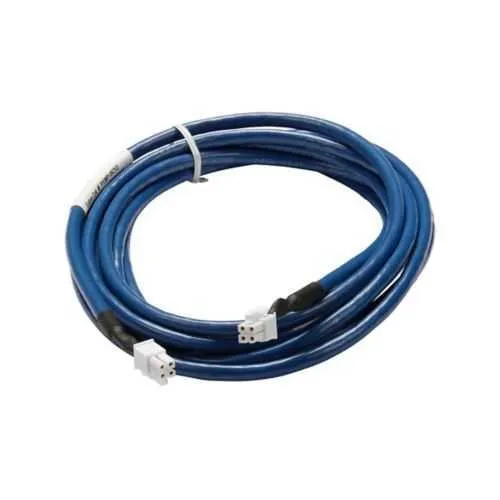

PXBCM-MMP-CBL04 Eaton: PXBCM Meter Module Port Cables - (2) Four foot cables used with PXBCM-MB and MMS or MME
Product Name
Eaton Power Xpert branch circuit monitor cable
Catalog Number
PXBCM-MMP-CBL04
UPC
786685954820
Product Length/Depth
10 in
Product Height
0.5 in
Product Width
0.5 in
Product Weight
0.9 lb
Warranty
1 year
Compliances
Contact Manufacturer
Special features
Used with PXBCM-MB and PXBCM-MMS and PXBCM-MME
Type
PXBCM Meter Module Port Cables
Used with
PXBCM-MB PXBCM-MMS PXBCM-MME
Feature: Includes two four-foot cables designed for PXBCM port connections. Business Impact: Streamlined installation reduces field labor time and limits mis-wiring, delivering faster project commissioning. Application: Ideal for Power Xpert branch circuit monitor networks connected to PXBCM-MB, PXBCM-MMS, and PXBCM-MME. Feature: Compact, robust form factor (approximately 0.5 in by 0.5 in with a 10 in length) and a total weight of 0.9 lb. Business Impact: Enables easy routing in tight electrical panels and improves connector reliability, lowering wiring fatigue and failure risk. Application: Suitable for panel installations with limited space in industrial environments and for high-density electrical protection layouts. Feature: Warranty coverage of 1 year. Business Impact: Reduces long-term maintenance costs and provides reassurance against early failures, supporting total cost of ownership (TCO) reduction. Application: Useful for OEMs and end users planning long-term asset management. Feature: Compatibility guidance and compliance approach. Business Impact: Provides clarity on regional certification needs, reducing project delays while ensuring traceability and safe operation. Application: Particularly valuable for multi-site deployments where compliance requirements vary by region. Feature: Clear interoperability with PXBCM-MB, PXBCM-MMS, and PXBCM-MME. Business Impact: Simplifies procurement and reduces integration risk by ensuring consistent interfaces across hardware variants. Application: Accelerates installation in Power Xpert monitoring ecosystems and supports scalable monitoring strategies.
