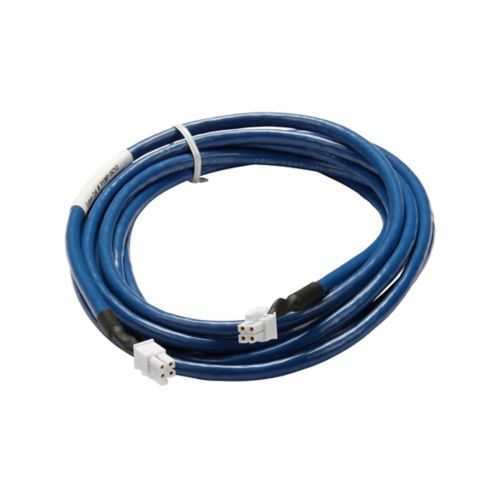

Eaton PXBCM-MMP-CBL08 Branch Circuit Monitor Cable - 8 ft Cables
Part Number: PXBCM-MMP-CBL08
Quick Summary
The Eaton Power Xpert branch circuit monitor cable delivers reliable signal transmission for PXBCM modules in panel-level monitoring. Installers often grapple with routing hassles and compatibility gaps that delay commissioning; this 2x8 ft cable set simplifies wiring and reduces downtime. Note that specific certifications should be confirmed with Eaton, with typical considerations for CE, IP, or SIL as applicable to your environment. Designed for PXBCM-MB, PXBCM-MMS, and PXBCM-MME integration, it supports accurate energy data, immediate fault visibility, and scalable deployments. By pairing robust hardware with Power Xpert monitoring workflows, it helps improve reliability and lower total cost of ownership for industrial facilities.
Product Information
Extended Description
PXBCM-MMP-CBL08 Eaton: PXBCM Meter Module Port Cables - (2) Eight foot cables used with PXMP-MB and MMS or MME
Product Name
Eaton Power Xpert branch circuit monitor cable
Catalog Number
PXBCM-MMP-CBL08
UPC
786685955209
Product Length/Depth
11.5 in
Product Height
3 in
Product Width
9 in
Product Weight
0.9 lb
Warranty
1 year
Compliances
Contact Manufacturer
Special features
Used with PXBCM-MB and PXBCM-MMS and PXBCM-MME
Type
PXBCM Meter Module Port Cables
Used with
PXBCM-MME PXBCM-MB PXBCM-MMS
The PXBCM-MMP-CBL08 includes two eight-foot cables that connect the PXBCM meters to the PXBCM-MB, PXBCM-MMS, or PXBCM-MME modules, reducing installation time and minimizing signal path interruptions for consistent data to the monitoring system. This setup is ideal for panel-level electrical protection in data centers, manufacturing floors, and facilities where precise load information is critical and downtime must be minimized. Compact packaging and a light 0.9 lb weight simplify handling, staging, and inventory management, enabling faster deployment in new builds or retrofit projects while maintaining robust signal integrity. The 1-year warranty supports maintenance planning and risk reduction, helping facilities budget for long-term monitoring without unexpected costs. Documentation and resources, including Eaton’s specification sheet and video overview, accelerate on-site training and reduce commissioning time, improving overall project ROI. Compatibility with PXBCM-MB, PXBCM-MMS, and PXBCM-MME ensures scalable deployments across multiple panels and sites.
Get a Quick Quote for a Eaton PXBCM-MMP-CBL08
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXBCM-MMP-CBL08?
Enquire Now
FAQs
The PXBCM-MMP-CBL08 is supplied as a paired, pre-cut cabling solution designed to directly connect PXBCM meters to the PXBCM-MB, PXBCM-MMS, or PXBCM-MME modules. Plan the run to minimize bends, secure cables away from high EMI sources, and ensure orientation matches module input ports. This approach streamlines commissioning and reduces field wiring errors, delivering a reliable data path for the monitoring system.
Two eight-foot cables deliver a consistent, short-run signal path between PXBCM components, minimizing potential attenuation. The cables are part of the Power Xpert branch circuit monitoring ecosystem, supported by a 1-year warranty. Key identifiers include the catalog PXBCM-MMP-CBL08 and UPC 786685955209, with packaging dimensions of 11.5 in by 9 in by 3 in and a weight of 0.9 lb for easy handling.
Yes. The PXBCM-MMP-CBL08 is designed for seamless use with PXBCM-MB, PXBCM-MMS, and PXBCM-MME configurations, enabling branch circuit monitoring directly in panel environments. Its compact form factor and straightforward routing support quick deployments in manufacturing sites, data centers, and other facilities where reliable energy data and fault visibility are essential for operations.
Compliances are listed as Contact Manufacturer for this model. When planning for CE, IP, or SIL certifications, consult Eaton’s technical support to confirm applicable standards for your region and installation. This ensures the cabling solution meets your regulatory requirements and site-specific safety and performance criteria.
Using PXBCM-MMP-CBL08 reduces installation time and wiring complexity, which lowers labor costs and commissioning duration. Its compatibility with PXBCM-MB, -MMS, and -MME enables scalable monitoring across panels, improving data accuracy and fault detection. The 1-year warranty adds predictable maintenance budgeting, contributing to a faster return on investment through minimized downtime and enhanced energy management.
