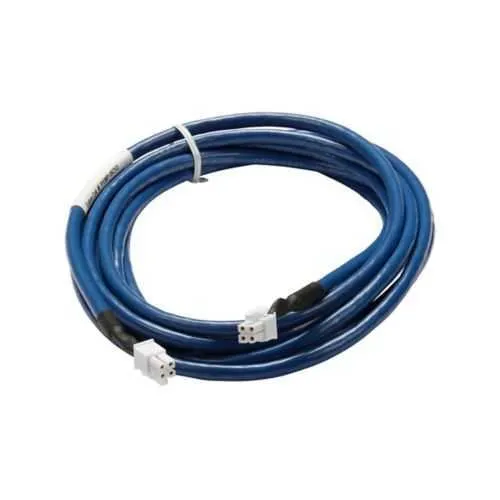

Eaton PXBCM-MMP-CBL12 Meter Module Port Cables - 12-Foot Length
Part Number: PXBCM-MMP-CBL12
Quick Summary
The Eaton Power Xpert branch circuit monitor cable provides reliable connections for PXBCM meters in panel-level energy monitoring. Engineers often encounter delays and wiring errors when sourcing cables that fit PXBCM-MB, PXBCM-MMS, and PXBCM-MME modules, which can slow commissioning and increase risk. Note that compliances are listed as 'Contact Manufacturer'; for safety-critical installations, verify CE, IP ratings and SIL readiness with Eaton. By pairing these cables with the PXBCM family, you simplify installation, improve signal integrity, and speed commissioning. This translates to reduced downtime and faster time-to-value for utilities, OEMs, and maintenance teams.
Product Information
Extended Description
PXBCM-MMP-CBL12 Eaton: PXBCM Meter Module Port Cables - (2) Twelve Foot cables used with PXMP-MB and MMS or MME
Product Name
Eaton Power Xpert branch circuit monitor cable
Catalog Number
PXBCM-MMP-CBL12
UPC
786685955216
Product Length/Depth
10 in
Product Height
0.5 in
Product Width
0.5 in
Product Weight
0.9 lb
Warranty
1 year
Compliances
Contact Manufacturer
Special features
Used with PXBCM-MB and PXBCM-MMS and PXBCM-MME
Type
PXBCM Meter Module Port Cables
Used with
PXBCM-MME PXBCM-MMS PXBCM-MB
Feature: Two 12-foot cables deliver a straightforward, ready-made connection between PXBCM modules and monitored circuits. Business Impact: Reduces field wiring errors and installation time, improving first-pass commissioning. Application: Ideal for PXBCM-MB, PXBCM-MMS, and PXBCM-MME installations where quick wiring is critical. Feature: Compact dimensions and light weight (0.5 in x 0.5 in x 10 in, 0.9 lb) plus a 1-year warranty. Business Impact: Easier handling and predictable lifecycle costs, lowering on-site fatigue and replacement risk. Application: Suitable for crowded panel spaces and serviceable by technicians with standard tools. Feature: Explicit compatibility with PXBCM-MB, PXBCM-MMS, and PXBCM-MME. Business Impact: Streamlines procurement and reduces integration errors across the Power Xpert monitoring family. Application: Suitable for end users deploying multi-module monitoring architectures. Feature: UPC 786685955216 and clear product identity; Compliances listed as Manufacturer contact. Business Impact: Improves traceability and audit readiness for regulated environments. Application: Useful for QA, procurement, and compliance checks. Feature: Includes multimedia resources (Eaton product video and specification sheet). Business Impact: Accelerates training and reduces interpretation errors during installation and maintenance. Application: Beneficial for field service teams and OEM training programs.
Get a Quick Quote for a Eaton PXBCM-MMP-CBL12
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXBCM-MMP-CBL12?
Enquire Now
FAQs
The PXBCM-MMP-CBL12 cables are designed for use with Eaton PXBCM-MB, PXBCM-MMS, and PXBCM-MME modules in Power Xpert branch circuit monitoring systems, simplifying integration and reducing wiring errors during panel installations.
Each cable set consists of two 12-foot cables suitable for PXBCM meter module ports. They are designed to fit within standard panel spaces; the product footprint is compact (0.5 in x 0.5 in cross-section) with a total length of 10 inches per cable assembly and a total weight around 0.9 lb.
Compliances are listed as Contact Manufacturer, so for harsh or safety-critical environments confirm CE, IP ratings, and SIL readiness with Eaton prior to deployment. The unit is intended for integration with Power Xpert monitoring systems and should be evaluated within your facility's specific requirements.
A specification sheet and an informational video are available. The Eaton specification sheet provides detailed electrical and mechanical data, while the video covers installation guidance and best practices for PXBCM module port cables.
The PXBCM-MMP-CBL12 carries a 1-year warranty. Routine maintenance involves inspecting cable integrity during PXBCM system servicing, replacing cables if signs of wear or damage are observed, and using the provided datasheet to ensure proper mating with PXBCM modules.
