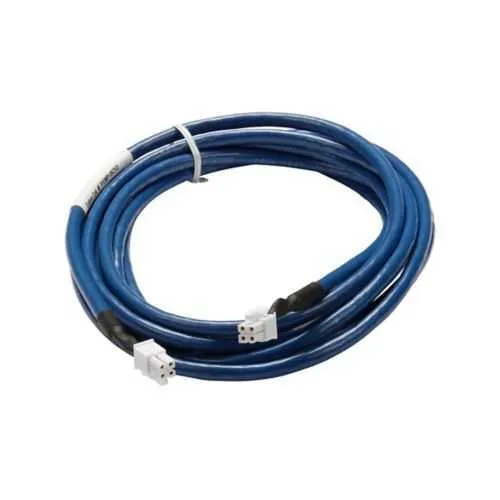

Eaton PXBCM-MMP-CBL6I Power Xpert Cables - 1-Year Warranty
Part Number: PXBCM-MMP-CBL6I
Quick Summary
Power Xpert branch circuit monitor cable enables direct connection to PXBCM modules for accurate current monitoring in panelboards. Without the right cables, wiring errors and signal integrity problems can trigger misreads, extend installation time, and increase downtime. Public certifications for this accessory are not listed; please verify CE, IP, or SIL status with Eaton. Designed for seamless compatibility with PXBCM-MB, PXBCM-MMS, and PXBCM-MME, it simplifies field wiring and accelerates commissioning. Engineers value the consistent 10 in length and 0.9 lb weight, aiding routing, inventory, and overall reliability of Power Xpert monitoring deployments. This combination supports faster deployments, improved asset visibility, and a lower total cost of ownership across critical electrical distributions.
Product Information
Extended Description
PXBCM-MMP-CBL6I Eaton: PXBCM Meter Module Port Cables - (2) Six inch cables used with PXBCM-MB and MMS or MME
Product Name
Eaton Power Xpert branch circuit monitor cable
Catalog Number
PXBCM-MMP-CBL6I
UPC
786685954783
Product Length/Depth
10 in
Product Height
0.2 in
Product Width
0.2 in
Product Weight
0.9 lb
Warranty
1 year
Compliances
Contact Manufacturer
Special features
Used with PXBCM-MB and PXBCM-MMS and PXBCM-MME
Type
PXBCM Meter Module Port Cables
Used with
PXBCM-MB PXBCM-MME PXBCM-MMS
Feature: Two six-inch cables for PXBCM module connections. Business Impact: Reduces harness complexity and wiring errors, enabling faster commissioning. Application: Panelboard wiring where PXBCM monitoring is deployed. The result is tighter signal routing and improved setup time. Feature: Overall cable length of 10 inches with a compact cross section (0.2 in x 0.2 in) and weight of 0.9 lb. Business Impact: Easier handling, cleaner installations, and improved inventory management. Application: Dense electrical rooms and retrofit projects where space is at a premium. Feature: 1-year warranty. Business Impact: Lower ownership risk and predictable maintenance costs. Application: Ongoing field support and service planning. Feature: Compatibility with PXBCM-MB, PXBCM-MMS, and PXBCM-MME. Business Impact: Reduced engineering effort and fewer inter‑vendor integration issues. Application: Seamless integration across Eaton’s Power Xpert monitoring ecosystem. Feature: Delivery program notes that these cables are used with PXBCM-MB, PXBCM-MMS, and PXBCM-MME. Business Impact: Streamlined procurement and standardized spares. Application: Multi‑panel deployments requiring consistent cabling across modules.
Get a Quick Quote for a Eaton PXBCM-MMP-CBL6I
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXBCM-MMP-CBL6I?
Enquire Now
FAQs
Power down the PXBCM system and follow site safety procedures. Route the two six‑inch cables from the PXBCM module ports to the designated field connections, keeping runs tidy and away from high‑heat sources. Verify correct polarity and secure each connector. The PXBCM-MMP-CBL6I cables are designed for straightforward, interference‑resistant installation, helping reduce wiring errors and speed up commissioning in panelboards.
Key performance specs include two six‑inch cables that connect PXBCM modules, a 10 in overall length with 0.2 in width and 0.2 in height, and a total weight of 0.9 lb. The assembly carries a 1‑year warranty and UPC 786685954783, with public compliance not listed. It is designed for compatibility with PXBCM‑MB, PXBCM‑MMS, and PXBCM‑MME to ensure reliable measurement signals.
Yes for typical panelboard environments when used with the PXBCM family, but the listing does not provide IP or temperature ratings. For harsh environments or extreme temperatures, verify with Eaton and follow your enclosure specifications. The small profile and low weight support flexible routing and faster field installs, minimizing thermal or vibration concerns when positioned away from heat sources.
The product shows 'Compliances: Contact Manufacturer' in the specifications. There are no public CE, IP, or SIL listings in the data provided. For compliance guarantees, consult Eaton's technical support or the specification sheet to confirm the exact certifications applicable to your region and application.
Using the PXBCM-MMP-CBL6I cables supports reliable monitoring with fewer misreads, reducing downtime and troubleshooting time. The 1-year warranty and proven compatibility with PXBCM‑MB, MME, and MMS help streamline procurement and spare‑part planning, lowering total cost of ownership across multi‑panel deployments and ongoing maintenance cycles.
