Eaton PXBCM-MMS-L09-A Power Xpert Monitor - UL Listed
Part Number: PXBCM-MMS-L09-A
Quick Summary
Power Xpert Monitor module strips provide real-time branch circuit monitoring for electrical distributions in industrial facilities. This solution helps engineers gain visibility into energy usage across multiple feeders, enabling quicker fault detection and targeted optimization. The module is CE marked and UL Listed with EN 61000-4-4/5 surge and ANSI/IEEE C12.20 accuracy, ensuring reliability in harsh plant environments. By integrating with Eaton's PXBCM-MB backplane, it delivers scalable monitoring without invasive rewiring. This approach reduces energy waste, improves power quality, and supports regulatory compliance. For procurement teams, the compact form factor and compatibility with common 277V L-N and 480V L-L systems simplify installation while delivering actionable insight for maintenance planning and ROI optimization.
Product Information
Extended Description

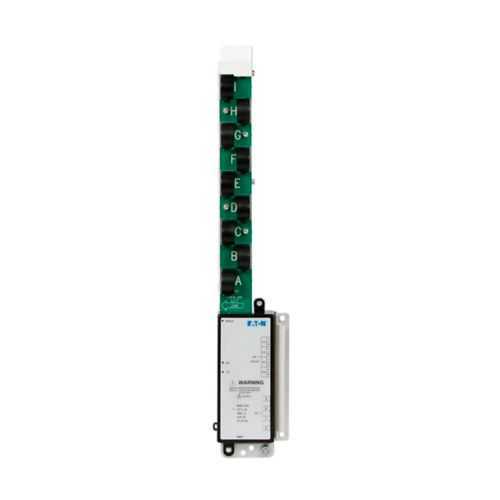

PXBCM-MMS-L09-A Eaton: Power Xpert Branch Circuit Monitor Meter Module Strip, Left 9 100A CTs, 1" Spacing, Max 277 VAC L-N, 480VAC L-L, Single/Three phase, used with PXMBCM-MB
Product Name
Eaton Power Xpert branch circuit monitor meter module strip
Catalog Number
PXBCM-MMS-L09-A
UPC
786685954745
Product Length/Depth
3 in
Product Height
2.8 in
Product Width
16.5 in
Product Weight
1 lb
Warranty
1 year
Compliances
CE Marked
Certifications
EN 61000-4-4 Electrical fast transient EN 61000-4-5 Surge UL Listed 61010-1 File E185559 ANSI/IEEE Std C12.20 (0.5% accuracy) CSA Std. C22.2 No. 1010.1.92
Used with
PXBCM-MB
Current sensor input
333 mV
Number of CT inputs
Single-phase, three-phase
Instrumentation
Watts Watt Demand Wh --Positive & Negative Wh --Net Current & Voltage - 3 Phase Average Current & Voltage - Per Phase Va Va demand Vah Current Demand Current & Voltage - 3 Phase Max
Voltage rating
277V L-N, 480V L-L
Feature: Nine 100A CT inputs arranged on a left strip with 1 inch spacing, supporting 277V L-N and 480V L-L operation. Business Impact: enables comprehensive feeder monitoring in a compact footprint, accelerating data-driven decisions and reducing wiring complexity. Application: ideal for mid-to-large electrical panels in manufacturing or data centers. Feature: Full instrumentation including Watts, Watt Demand, Wh (Positive, Negative, Net), Current & Voltage (3 Phase Average and Per Phase), VA, VA demand, Vah, Current Demand, and 3 Phase Max. Business Impact: delivers rich energy analytics for peak shaving, demand management, and power quality improvement. Application: supports energy optimization programs and compliance reporting. Feature: Current sensor input at 333 mV and compatibility with both single-phase and three-phase CT configurations. Business Impact: simplifies sensor integration and minimizes external components, lowering total installed cost. Application: seamless retrofit in existing Eaton Power Xpert installations. Feature: Comprehensive compliance and certifications including CE Marked, UL Listed to 61010-1, EN 61000-4-4/5, ANSI/IEEE C12.20 0.5% accuracy, CSA 1010.1.92. Business Impact: reduces risk during audits and accelerates regulatory approvals. Application: suitable for industrial environments with strict conformity needs. Feature: PXBCM-MMS-L09-A’s physical footprint and PXBCM-MB compatibility enable quick installation and scalable monitoring. Business Impact: minimizes downtime during deployment and supports phased expansion. Application: ideal for upgrading existing power monitoring architectures.
Get a Quick Quote for a Eaton PXBCM-MMS-L09-A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXBCM-MMS-L09-A?
Enquire Now
FAQs
The module integrates nine 100A CT inputs on the left side, designed for flexible feeder monitoring. It uses a 333 mV current sensor output, simplifying CT pairing and streamlining installation for both single-phase and three-phase configurations.
Yes. The PXBCM-MMS-L09-A is designed to be used with Eaton’s PXBCM-MB backplane, enabling plug‑and‑play deployment within the Power Xpert system and scalable expansion as monitoring needs grow.
It supports 277V L-N and 480V L-L operation, which covers standard commercial and industrial power distribution configurations, making it suitable for a wide range of feeder designs.
The module is CE Marked and UL Listed to 61010-1, with EN 61000-4-4/5 surge immunity, ANSI/IEEE C12.20 accuracy (0.5%), and CSA C22.2 No. 1010.1.92, ensuring compliance for regulated industrial environments.
It reports Watts, Watt Demand, Wh (Positive, Negative, Net), Current & Voltage (3 Phase Avg and Per Phase), VA, VA demand, Vah, Current Demand, and 3-Phase Max. These analytics enable energy optimization, reduced demand charges, and better maintenance planning, improving total cost of ownership.
