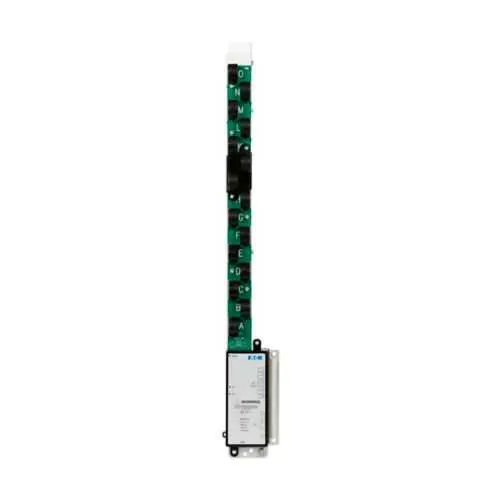

Eaton PXBCM-MMS-L15-A Power Xpert Monitor Strip - UL Listed
Part Number: PXBCM-MMS-L15-A
Quick Summary
Eaton PXBCM-MMS-L15-A power Xpert branch circuit monitor module strip enables precise watt, voltage, and current monitoring for electrical panels. Engineers often contend with siloed data and limited visibility during power audits. It carries CE marking and UL Listed 61010-1 certification, plus EN 61000-4-4/4-5 and ANSI/IEEE C12.20 compliance. Designed to integrate with PXMBCM-MB and support both single-phase and three-phase configurations, it enables faster diagnostics, accurate reporting, and energy cost reduction.
Product Information
Extended Description
PXBCM-MMS-L15-A Eaton: Eaton Power Xpert Branch Circuit Monitor Meter Module Strip, Left 15 100A CTs, 1 in Spacing, Max 277V L-N, 480V L-L, Single-phase, three-phase, used with PXMBCM-MB
Product Name
Eaton Power Xpert branch circuit monitor meter module strip
Catalog Number
PXBCM-MMS-L15-A
UPC
786685954738
Product Length/Depth
25.75 in
Product Height
4.5 in
Product Width
5.5 in
Product Weight
2.2 lb
Warranty
1 year
Compliances
CE Marked
Certifications
EN 61000-4-4 Electrical fast transient EN 61000-4-5 Surge UL Listed 61010-1 File E185559 ANSI/IEEE Std C12.20 (0.5% accuracy) CSA Std. C22.2 No. 1010.1.92
Used with
PXBCM-MB
Current sensor input
333 mV
Number of CT inputs
Single-phase, three-phase
Instrumentation
Watt Demand Current & Voltage - 3 Phase Max Current & Voltage - Per Phase Vah Current Demand Current & Voltage - 3 Phase Average Va Va demand Watts Wh --Net Wh --Positive & Negative
Voltage rating
277V L-N, 480V L-L
Feature → Business Impact → Application: The PXBCM-MMS-L15-A is a compact meter strip with left-side mounting, 25.75 in length, 4.5 in height, 5.5 in width, and 2.2 lb weight, enabling space-efficient panel installation while maintaining robust sensing compatibility. This translates to streamlined installation in existing Eaton Power Xpert assemblies and easier retrofit in limited-access panels. Application: Data centers and manufacturing floors benefit from easy integration with PXBCM-MB and minimal reconfiguration when upgrading to advanced power quality monitoring. Feature → Business Impact → Application: Current sensor input of 333 mV and CT inputs capable of single-phase and three-phase measurements deliver accurate watt, volt, and current data for precise energy accounting. This improves reporting accuracy and supports demand-based control strategies in mid- to large-size facilities. Feature → Business Impact → Application: Instrumentation includes Watt Demand, Current & Voltage, Va, Wh, and net/positive & negative energy, enabling comprehensive energy analytics. Practical outcome: faster fault isolation, better power quality management, and data-driven maintenance planning. Feature → Business Impact → Application: Compliance and protection are reinforced by CE Marking, UL Listed 61010-1, EN 61000-4-4/4-5, ANSI/IEEE C12.20, and CSA C22.2 standards. Benefit: reduced regulatory risk, smoother audits, and enhanced safety in electrical panels. Feature → Business Impact → Application: Compatibility with PXBCM-MB and 1-in spacing supports scalable installations across multi-panel environments, reducing wiring complexity and allowing incremental upgrades without system downtime.
Get a Quick Quote for a Eaton PXBCM-MMS-L15-A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXBCM-MMS-L15-A?
Enquire Now
FAQs
The PXBCM-MMS-L15-A is designed to fit left-side within Eaton Power Xpert bundles and pairs with the PXBCM-MB module strip. Ensure 1 in spacing, confirm voltage rating compatibility (277V L-N or 480V L-L), and connect the CT inputs for single-phase or three-phase configurations. Use the supplied mounting hardware and verify secure enclosure sealing for panel environments to minimize impedance on measurements.
Key specs include a voltage rating of 277V L-N and 480V L-L, current sensor input of 333 mV, and CT input flexibility for single-phase and three-phase configurations. Instrumentation covers Watt Demand, Current & Voltage, per-phase values, and energy metrics (Wh, Va, Vah) to support detailed energy accounting and demand management.
The module is CE marked and UL Listed to 61010-1, with compliance to EN 61000-4-4 and EN 61000-4-5 for electrical fast transient and surge, as well as ANSI/IEEE C12.20 and CSA C22.2 No. 1010.1.92. These certifications support safety, reliability, and regulatory alignment in industrial environments.
By delivering precise energy data, improved fault isolation, and enhanced power quality monitoring, facilities can reduce energy waste and respond faster to anomalies. The single-device integration with existing Power Xpert infrastructure lowers wiring and commissioning time, leading to shorter project timelines and lower total cost of ownership.
The product carries a 1-year warranty, with access to Eaton’s technical support and datasheet resources. The equipment’s robust certifications and documented compatibility with PXBCM-MB help ensure predictable performance, streamlined troubleshooting, and long-term reliability for critical electrical monitoring applications.
