Eaton PXBCM-MMS-R09-A Branch Circuit Monitor - CE Marked
Part Number: PXBCM-MMS-R09-A
Quick Summary
Eaton Power Xpert branch circuit monitor meter module strip provides real-time electrical measurement for panelboards and data centers. Engineering teams often wrestle with gaps in accuracy, alarm reliability, and scalability when monitoring across single- and multi-CT configurations. This module strip is CE Marked, UL Listed to 61010-1, and compliant with ANSI/IEEE Std C12.20 (0.5% accuracy) to support safe, precise operation. Used with PXBCM-MB, it handles 9 CT inputs at 100 A and supports 277 VAC L-N and 480 VAC L-L in single- or three-phase systems, helping drive efficiency and regulatory compliance.
Product Information
Extended Description

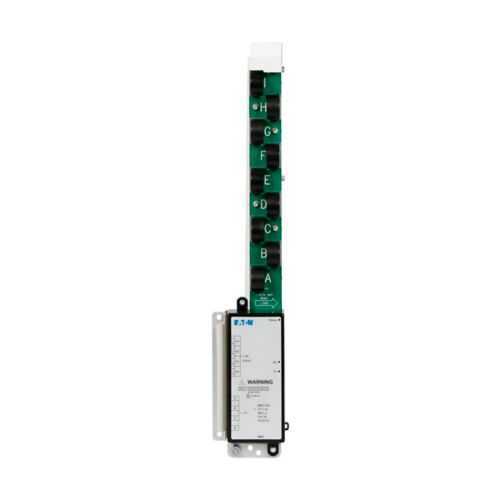

PXBCM-MMS-R09-A Eaton: Power Xpert Branch Circuit Monitor Meter Module Strip, Right 9 100A CTs, 1" Spacing, Max 277 VAC L-N, 480VAC L-L, Single/Three phase, used with PXMBCM-MB
Product Name
Eaton Power Xpert branch circuit monitor meter module strip
Catalog Number
PXBCM-MMS-R09-A
UPC
786685954752
Product Length/Depth
20.7 in
Product Height
4.7 in
Product Width
5.6 in
Product Weight
1.75 lb
Warranty
1 year
Compliances
CE Marked
Certifications
EN 61000-4-4 Electrical fast transient EN 61000-4-5 Surge UL Listed 61010-1 File E185559 ANSI/IEEE Std C12.20 (0.5% accuracy) CSA Std. C22.2 No. 1010.1.92
Used with
PXBCM-MB
Current sensor input
333 mV
Number of CT inputs
Single-phase, three-phase
Instrumentation
Wh --Positive & Negative Current Demand Current & Voltage - 3 Phase Max Current & Voltage - Per Phase Watt Demand Va Watts Vah Wh --Net Current & Voltage - 3 Phase Average Va demand
Voltage rating
277V L-N, 480V L-L
Nine current transformer inputs with up to 100 A per CT deliver comprehensive metering for single-phase and three-phase systems. Business impact: enhances visibility across feeders, reducing energy waste and accelerating fault detection and demand response. Application: ideal for panel retrofits, multi-branch circuits, and industrial energy management. The compact form factor with 1 inch spacing simplifies installation in crowded enclosures, saving commissioning time and reducing wiring errors. Application: works seamlessly with standard Eaton rail layouts and PXBCM-MB for scalable monitoring upgrades. A wide voltage rating of 277 V L-N and 480 V L-L covers most industrial distributions, enabling cross-site deployments without extra adapters. Application: data centers, manufacturing floors, and commercial facilities benefit from reduced inventory. Full instrumentation includes Wh (Positive & Negative), Current Demand, Watt Demand, VA, Watts, Vah, Wh Net, and per-phase views. Application: advanced energy analytics and precise consumption forecasting. Compliance and safety are reinforced by CE Marking, UL Listed 61010-1, EN 61000-4-4, EN 61000-4-5, and ANSI/IEEE C12.20 accuracy, ensuring regulatory readiness for regulated environments. Application: regulated facilities seeking auditable energy data and reliable alarms. Weight, dimensions, and warranty support field deployment: 1.75 lb, 20.7 in length, 4.7 in height, 5.6 in width, and a 1-year warranty. Application: easy handling, quick replacement, and predictable maintenance planning.
Get a Quick Quote for a Eaton PXBCM-MMS-R09-A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXBCM-MMS-R09-A?
Enquire Now
FAQs
Install PXBCM-MMS-R09-A alongside the PXBCM-MB within Eaton's Power Xpert monitoring ecosystem. Verify correct mounting with 1 inch spacing, secure CT wiring to the nine inputs, and confirm the supply is 277 V L-N or 480 V L-L. Use proper conductors and follow NEC guidelines during field wiring to ensure reliable performance.
The module provides nine CT inputs capable of monitoring currents up to 100 A per CT. It supports single-phase and three-phase configurations, enabling comprehensive submetering across multiple feeders in a single rack or panel assembly.
Yes. It delivers real-time energy data and demand analytics for panelboards in data centers and industrial environments. The 277/480 V rating supports common distribution schemes, while UL and CE certifications ensure regulatory compliance. Its integration with PXBCM-MB enables scalable submetering across diverse facility layouts.
The module is CE Marked and UL Listed to 61010-1. It also aligns with ANSI/IEEE Std C12.20 (0.5% accuracy) and EN 61000-4-4/61000-4-5 electromagnetic standards, underscoring safety, reliability, and measurement precision in critical electrical systems.
By delivering precise, per-feeder energy data and fast fault detection, PXBCM-MMS-R09-A enables better energy management, reduced waste, and lower demand charges. The 1-year warranty and straightforward PXBCM-MB compatibility also shorten downtime and maintenance costs, contributing to a favorable total cost of ownership in productive facilities.
