Eaton PXBCM-MMS-R15-A Power Xpert Branch Circuit Monitor - CE Marked
Part Number: PXBCM-MMS-R15-A
Quick Summary
Power Xpert branch circuit monitor PXBCM-MMS-R15-A provides real-time energy and demand data for electrical feeders. Instead of juggling separate meters and fragmented data sources, engineers gain a single, authoritative view of load performance across industrial facilities. Key certifications include CE marking, UL Listed to 61010-1, and EN 61000-4-4/4-5 surge protection, supporting robust and compliant installations in demanding environments. This module integrates seamlessly with Eaton’s monitoring ecosystem, delivering energy visibility and demand trends while simplifying panel upgrades and data-driven decision making for ongoing efficiency and reliability.
Product Information
Extended Description

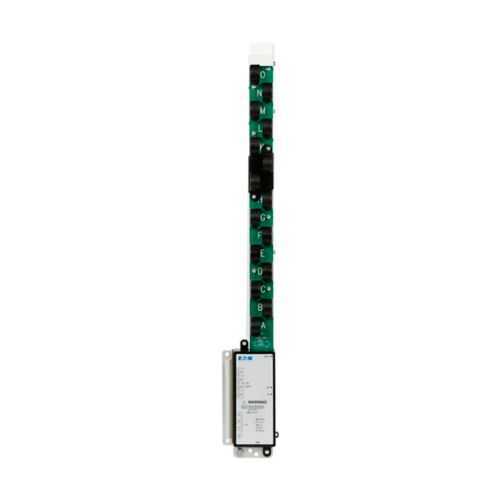

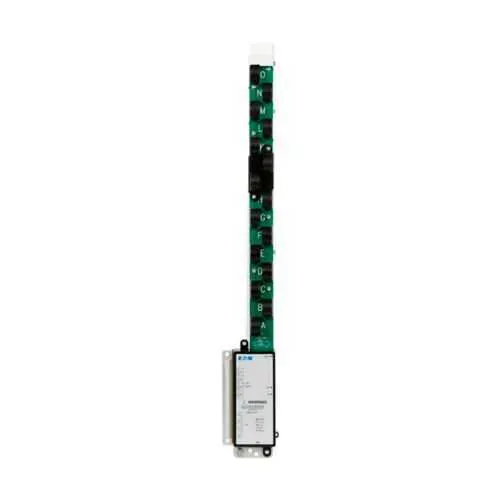

PXBCM-MMS-R15-A Eaton: Eaton Power Xpert Branch Circuit Monitor Meter Module Strip, Right 15 100A CTs, 1" Spacing, Max 277 VAC L-N, 480VAC L-L, Single/Three phase, used with PXMBCM-MB
Product Name
Eaton Power Xpert branch circuit monitor meter module strip
Catalog Number
PXBCM-MMS-R15-A
UPC
786685954721
Product Length/Depth
25.75 in
Product Height
4.5 in
Product Width
5.5 in
Product Weight
2.2 lb
Warranty
1 year
Compliances
CE Marked
Certifications
EN 61000-4-4 Electrical fast transient EN 61000-4-5 Surge UL Listed 61010-1 File E185559 ANSI/IEEE Std C12.20 (0.5% accuracy) CSA Std. C22.2 No. 1010.1.92
Used with
PXBCM-MB
Current sensor input
333 mV
Number of CT inputs
Single-phase, three-phase
Instrumentation
Wh --Net Current & Voltage - 3 Phase Max Current & Voltage - Per Phase Watts Current Demand Vah Current & Voltage - 3 Phase Average Wh --Positive & Negative Watt Demand Va demand Va
Voltage rating
277V L-N, 480V L-L
Feature → Business Impact → Application: Real-time energy and demand data capture, including Wh Net, Current & Voltage - 3 Phase Max Current & Voltage - Per Phase, Watts, Current Demand, and VA Demand, enables precise load profiling and energy cost allocation. This leads to measurable efficiency gains and better budgeting for utilities in manufacturing lines and data centers. Application: ideal for industrial facilities aiming to optimize power usage and demonstrate compliance in energy reporting. Feature → Compatibility and installation ease, including use with PXBCM-MB and right-side 15 CT strip with 1" spacing, reduces wiring errors and shortens panel deployment time. Business impact: faster commissioning, lower labor costs, and reliable performance in new builds or retrofit projects. Application: panel upgrades, control cabinet installations, and modular monitoring expansions. Feature → Electrical protection and safety compliance, with CE marking, UL Listed 61010-1, and surge/EMI protection (EN 61000-4-4, EN 61000-4-5). Business impact: mitigates regulatory risk, lowers incident costs, and supports audit readiness. Application: industrial plants with strict safety and regulatory requirements. Feature → Physical footprint and installation efficiency, with dimensions of 25.75 in length, 4.5 in height, 5.5 in width, and 2.2 lb weight. Business impact: compact form factor enables deeper panel integration and easier serviceability. Application: space-constrained switchgear and distribution panels. Feature → Robust data instrumentation and CT integration, including 333 mV current sensor input and 15 CT inputs for single/three-phase systems. Business impact: precise current measurement, improved demand calculations, and more accurate energy reporting. Application: critical facilities, data centers, and process industries that require per-phase visibility and accurate billing.
Get a Quick Quote for a Eaton PXBCM-MMS-R15-A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXBCM-MMS-R15-A?
Enquire Now
FAQs
Install PXBCM-MMS-R15-A as a right-side module strip in the Eaton Power Xpert family. Use the 1" spacing and connect the 15 CT inputs to the monitor, ensuring the system supports single-phase or three-phase configurations. Mount in a standard control panel, wire the 277V L-N and 480V L-L supply paths per the datasheet, and link to the PXBCM-MB for full data integration.
The monitor supports 277V L-N and 480V L-L voltage ratings, with 15 CT inputs for single-phase or three-phase configurations. It uses a 333 mV current sensor input and provides instrumentation such as Watt, Watt Demand, VA Demand, and phase-level measurements for accurate energy profiling.
Yes. The PXBCM-MMS-R15-A is CE marked and UL Listed (61010-1). It also meets EN 61000-4-4 and EN 61000-4-5 surge specifications, along with ANSI/IEEE C12.20 and CSA standards, ensuring robust performance and regulatory compliance in industrial environments.
The PXBCM-MMS-R15-A includes a 1-year limited warranty covering manufacturing defects and performance. Eaton provides technical documentation, specification sheets, and access to product support to assist with installation, commissioning, and troubleshooting.
By delivering real-time energy and demand data for accurate load profiling, it enables precise energy budgeting, improved demand management, and compliant reporting. The seamless PXBCM-MB integration reduces installation time, supports ROI through energy savings, and enhances reliability across industrial, commercial, and data-center environments.
