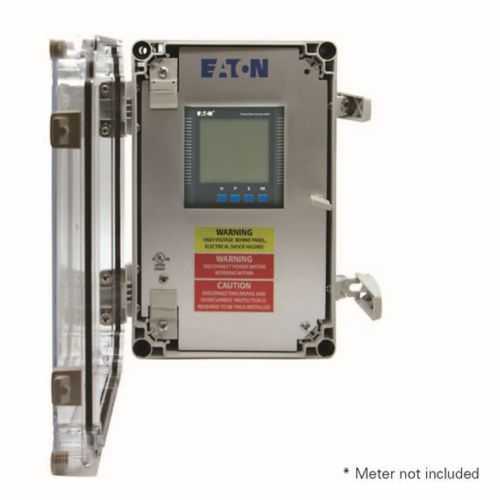

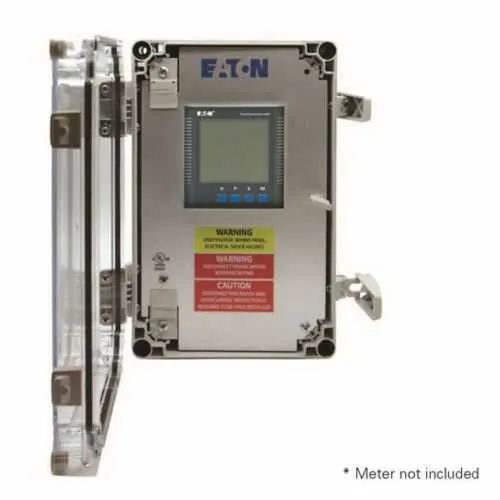

Eaton PXE-ENCL-C Energy Meter Enclosure - NEMA 4X
Part Number: PXE-ENCL-C
Quick Summary
Eaton PXE-ENCL-C energy meter enclosure protects Power Xpert meters in industrial electrical panels. This enclosure helps address space constraints and messy wiring by providing a compact, rugged housing for critical metering hardware. While its NEMA 4X construction and 600 VAC compatibility offer robust protection, exact compliance certifications should be confirmed with the manufacturer. The PXE enclosure supports efficient installation and reliable data monitoring, delivering value through streamlined maintenance, consistent energy measurements, and easier upgrades within power-management and distribution systems.
Product Information
Extended Description
PXE-ENCL-C Eaton: Eaton Power Xpert energy meter accessory PXE ENCLOSURE, NEMA 4X, 600VAC POWER SUPPLY
Product Name
Eaton Power Xpert energy meter enclosure
Catalog Number
PXE-ENCL-C
UPC
786687080435
Product Length/Depth
11.81 in
Product Height
7.88 in
Product Width
7.34 in
Product Weight
8 lb
Compliances
Contact Manufacturer
Type
PXE enclosure, NEMA 4X
Enclosure
NEMA 4X
Series
PXE
Feature → Business Impact → Application: The PXE-ENCL-C utilizes a rugged NEMA 4X enclosure to withstand washdown, corrosion, and harsh environments, reducing downtime and maintenance costs while protecting sensitive metering electronics in plant floors and outdoor substations. This translates into improved data integrity for energy analytics and lower total cost of ownership for utility and industrial facilities. Application-wise, it’s ideal for industrial control rooms, equipment rooms, and outdoor enclosures where reliability and footprint are critical. Feature → Business Impact → Application: With compact dimensions (11.81 in L x 7.88 in H x 7.34 in W) and a nominal 8 lb weight, installation is faster, easier to retrofit into existing racks or cabinets, and reduces labor time during panel upgrades. Application includes retrofits and new build-outs in power distribution and energy monitoring setups. Feature → Business Impact → Application: 600 VAC compatibility supports direct integration with Power Xpert energy meters, simplifying wiring schemes, improving safety margins, and ensuring compliant operation in high-energy environments. Application includes voltage monitoring in manufacturing lines and utility-scale panels. Feature → Business Impact → Application: PXE compatibility and available PXE pre-wired enclosure data sheets offer installation efficiency and consistent field wiring, reducing on-site errors and enabling quicker commissioning in new projects. Application spans data centers, process industries, and commercial facilities where energy monitoring is critical. Feature → Business Impact → Application: The enclosure’s protection and organized layout minimize sprawl and boost ongoing maintenance efficiency, supporting longer meter life, fewer replacements, and measurable reliability gains across energy management programs. Application includes upgrades to existing energy metering infrastructure and scalable monitoring deployments.
Get a Quick Quote for a Eaton PXE-ENCL-C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXE-ENCL-C?
Enquire Now
FAQs
The PXE-ENCL-C is designed to house Power Xpert energy meters, offering a compact NEMA 4X enclosure that simplifies mounting inside electrical panels or cabinets. Its dimensions (11.81 in L, 7.88 in H, 7.34 in W) support easy alignment with standard rail and backboard layouts, while maintaining clean cable management and straightforward access for commissioning.
The enclosure employs a NEMA 4X rating, delivering robust ingress protection suitable for washdown and corrosive environments found in many industrial settings. It is designed to accommodate up to 600 VAC power supplies, ensuring safe and reliable operation of Power Xpert meters in demanding electrical distributions.
Yes, the NEMA 4X enclosure design makes the PXE-ENCL-C appropriate for outdoor or exposed installations where resistance to moisture, dust, and chemical exposure is required. For outdoor use, verify manufacturer-approved mounting methods and confirm any regional installation standards or additional weatherproofing needs.
The product provides NEMA 4X enclosure protection and specifies 600 VAC operation; however, formal certifications such as SIL, CE, or IP ratings should be confirmed with the manufacturer or official datasheets. The available compliance note indicates 'Contact Manufacturer' for further details on regulatory approvals.
The enclosure protects meter electronics from environmental damage, reducing replacement costs and downtime. Its organized layout and compatible dimensions streamline installation, shorten commissioning time, and support easier future upgrades to energy-monitoring systems, delivering tangible ROI through improved uptime, data reliability, and lower maintenance labor over the system’s life cycle.
