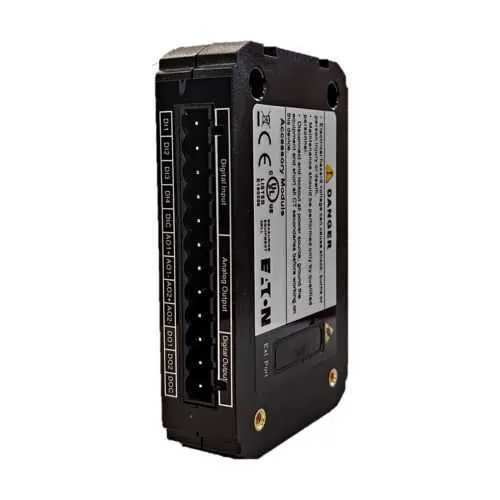

Eaton PXE-IO1 I/O Module - 6DI, 24Vdc Supply for Power Meter
Part Number: PXE-IO1
Quick Summary
Eaton Power Xpert energy meter I/O module enables seamless data sharing between metering and control systems for energy management. For engineers balancing accuracy with uptime, fragmented data streams and I/O misconfigurations are a common pain point. Certification considerations like CE marking and IP-rated ruggedness are central to compliance and field reliability when deployed in harsh industrial environments. The PXE-IO1 supports logic address configurability, six digital inputs, and a 24V DC DI power supply, helping you achieve real-time visibility without overhauling your existing architecture. This module also complements broader Power Xpert solutions, delivering scalable monitoring, faster troubleshooting, and a lower total cost of ownership through tighter integration.
Product Information
Extended Description
PXE-IO1 Eaton: Eaton Power Xpert energy meter, PXE I/O module, logic address configurable (1,2) RO, 6DI, with DI power supply 24Vdc
Product Name
Eaton Power Xpert energy meter I/O module
Catalog Number
PXE-IO1
UPC
786689875657
Product Length/Depth
3.5 in
Product Height
1 in
Product Width
2.25 in
Product Weight
0.25 lb
Type
I/O Module
Frequency rating
60 Hz
Six digital inputs with an integrated 24Vdc DI power supply simplify wiring, reduce installation time, and lower the risk of field wiring errors. This directly improves data integrity at the source and accelerates time-to-insight for energy analytics in manufacturing lines and data centers. Logic address configurability (1,2) streamlines multi-device deployments, minimizing commissioning effort and avoiding address conflicts, which translates to lower engineering costs during line expansions or retrofits. The 60 Hz frequency rating ensures compatibility with regional power networks, reducing sampling mismatches in energy reporting and billing. Its compact footprint—3.5 in L, 2.25 in W, 1 in H—and light weight enable easy retrofits in crowded cabinets with minimal disruption to existing hardware. As part of the Power Xpert family, PXE-IO1 enables scalable data aggregation and centralized diagnostics for proactive maintenance and uptime optimization.
Get a Quick Quote for a Eaton PXE-IO1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXE-IO1?
Enquire Now
FAQs
PXE-IO1 is designed to integrate with Eaton Power Xpert energy meters and related control architectures. It provides six digital inputs and a 24Vdc DI supply, with configurable logic addresses to simplify multi-device deployments. Ideal for panel-level energy monitoring in industrial facilities, data centers, and manufacturing lines where reliable data capture and streamlined wiring are critical.
The PXE-IO1 supports configurable logic addresses, typically set to 1 or 2, to prevent address conflicts in multi-device installations. Access the Power Xpert interface or device configuration utility, assign a unique address to each PXE-IO1, and verify cross-device communication. This minimizes commissioning time and reduces runtime wiring errors in complex control networks.
Benefits include reduced wiring complexity due to the integrated 24Vdc DI supply, improved data quality from close-to-sensor inputs, faster fault isolation through centralized diagnostics, and scalable integration within the Power Xpert ecosystem. These improvements translate to lower maintenance costs, shorter downtime, and stronger energy analytics across lines, plants, and facilities.
Certification specifics for PXE-IO1 are not listed in the provided data. When sourcing, confirm applicable CE, IP ratings, and SIL considerations with the datasheet or vendor. In industrial deployments, verify regulatory compliance for your region and ensure compatibility with your facility’s electrical and safety standards.
PXE-IO1 measures 3.5 inches in length, 2.25 inches in width, and 1 inch in height, and weighs 0.25 pounds. This compact footprint supports easy DIN-rail mounting and retrofits in crowded control cabinets, reducing panel modification needs during upgrades or expansions.
