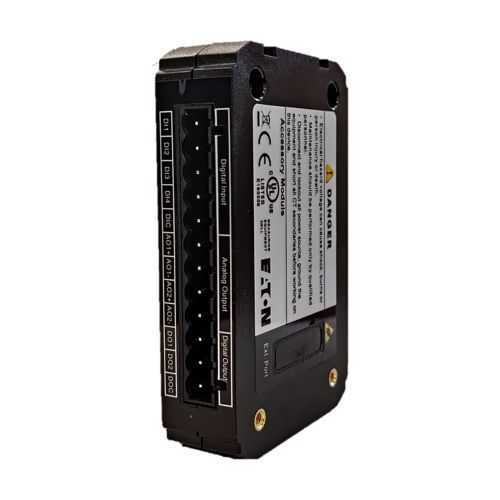

Eaton PXE-IO2 I/O Module - Power Xpert interface 60 Hz
Part Number: PXE-IO2
Quick Summary
PXE-IO2 I/O module from Eaton delivers integrated energy metering and I/O for industrial control systems. Operational teams face wiring complexity and data silos when linking meters to PLCs, which slows commissioning. Common industry certifications and ratings include CE marking, SIL safety considerations, and IP ratings that influence installation safety and environmental resilience. The PXE-IO2 consolidates metering with flexible I/O, enabling faster deployments and improved data accuracy for energy management and production optimization. By simplifying address configuration and reducing wiring, it lowers total cost of ownership while supporting scalable automation across Power Xpert ecosystems.
Product Information
Extended Description
PXE-IO2 Eaton: Eaton Power Xpert energy meter, PXE I/O module, logic address configurable (1,2) 4 DI, 2 DO, 2AO configurable (0-20mA, 4-20mA, 0-5V, 1-5V)
Product Name
Eaton Power Xpert energy meter I/O module
Catalog Number
PXE-IO2
UPC
786689875664
Product Length/Depth
3.5 in
Product Height
1 in
Product Width
2.25 in
Product Weight
0.25 lb
Type
I/O Module
Frequency rating
60 Hz
Feature: Logic-address configurability. Business Impact: simplifies network design, reduces misaddressing, and accelerates commissioning. Application: deploy across multi-meter installations and distributed control architectures within Power Xpert ecosystems. Feature: Four digital inputs, two digital outputs, and two analog outputs. Business Impact: provides versatile signaling and control from a single module, cutting cabinet clutter and wiring time. Application: monitor machine states and drive basic actuation in packaging lines or fabrication cells. Feature: Analog outputs configurable to 0-20 mA, 4-20 mA, 0-5 V, and 1-5 V. Business Impact: flexible signal interfacing to varied controllers and instruments, reducing need for adapters. Application: precise process control loops in energy management and process automation. Feature: 60 Hz frequency rating. Business Impact: ensures seamless operation with North American and other 60 Hz power networks. Application: plant-wide metering and I/O integration without special frequency converters. Feature: Compact form factor (3.5 in L, 2.25 in W, 1 in H) and light weight (0.25 lb). Business Impact: easier panel mounting, reduced enclosure space, and faster installation. Application: retrofits and dense control panels in automotive, food & beverage, and electronics manufacturing. Feature: Seamless compatibility with Eaton Power Xpert energy meters. Business Impact: streamlined commissioning and simplified maintenance with a single vendor ecosystem. Application: scalable energy monitoring across production lines with consistent data models.
Get a Quick Quote for a Eaton PXE-IO2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXE-IO2?
Enquire Now
FAQs
Begin by mounting the PXE-IO2 in a suitable enclosure or DIN rail space within the control panel. Connect the four digital inputs, two digital outputs, and two analog outputs to the process signals, and configure the logic address in the Eaton Power Xpert interface. Use the Power Xpert software to verify channel mapping, then perform a staged functional test under nominal load to confirm timing and signaling integrity.
The PXE-IO2 provides four digital inputs, two digital outputs, and two analog outputs. The analog outputs are configurable as 0-20 mA, 4-20 mA, 0-5 V, or 1-5 V. The unit operates with a 60 Hz frequency rating, making it suitable for standard industrial networks and Power Xpert integrations.
Yes. PXE-IO2 is designed for 60 Hz operation, aligning with North American and other 60 Hz power systems. This compatibility simplifies installation in facilities that run standard 60 Hz grids and helps ensure consistent metering and I/O performance across the Power Xpert ecosystem.
When deploying PXE-IO2, ensure conformity with your regional electrical safety standards and enclosure requirements. Even though generic industry norms like CE marking are common in this category, verify any site-specific compliance for electrical enclosures, wiring practices, and environmental ratings. Follow Eaton installation guides to maintain safety margins and maintain data integrity in harsh environments.
The PXE-IO2 reduces wiring complexity by consolidating energy metering and I/O in a single module, which shortens commissioning time and lowers labor costs. Its flexible I/O and configurable addresses improve data accuracy and traceability, enabling faster fault isolation and predictive maintenance. Over the life of a line, these efficiencies translate to lower downtime and a faster payback on automation upgrades.
