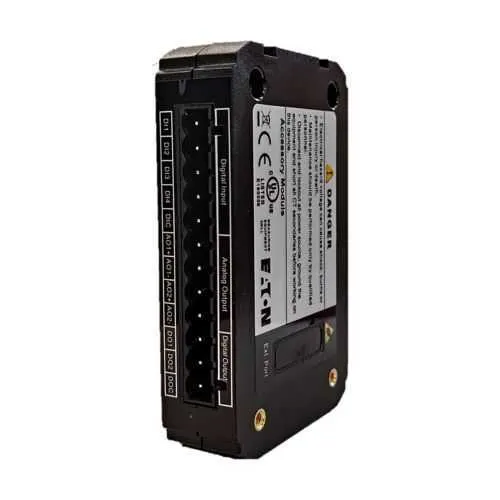

Eaton PXE2MB1V3 Power Xpert energy meter - UL Recognized
Part Number: PXE2MB1V3
Quick Summary
Power Xpert energy meter is a precision instrument from Eaton designed to monitor electrical energy consumption in industrial power distribution. This device helps engineers gain real-time visibility into energy usage, enabling faster fault detection and proactive optimization of loads. With UL Recognized certification and CE marking alongside ANSI C12.20 Class 0.1 accuracy, it supports strict compliance and accurate billing. The PXE2MB1V3 features a 400Vac L-N and 690Vac L-L rating and an RS485 port with Modbus-RTU and DNP3.0, simplifying integration into existing control systems. By aligning energy data with maintenance planning and cost accounting, organizations can reduce waste, improve decision-making, and drive measurable efficiency across production lines and powered equipment.
Product Information
Extended Description
PXE2MB1V3 Eaton: Eaton Power Xpert energy meter, LCD display, Frequency range 45-65Hz, Nominal current input 5A, Power supply 20-60Vdc, Built-in RS485 port with Modbus-RTU and DNP3.0 protocol
Product Name
Eaton Power Xpert energy meter
Catalog Number
PXE2MB1V3
UPC
786689875435
Product Length/Depth
4 in
Product Height
4 in
Product Width
2.5 in
Product Weight
1 lb
Compliances
Contact Manufacturer CE Marked
Certifications
UL Recognized
Type
Meter
Voltage rating
400Vac L-N, 690Vac L-L
Frequency rating
50/60 Hz
Waveform capture sampling rate
512 samples/cycle
ANSI % revenue accuracy
ANSI C12.20 Class 0.1
Compact, panel-friendly form factor enables easy installation in standard electrical enclosures, saving cabinet space and reducing wiring complexity. This translates to faster commissioning, reduced labor costs, and a cleaner power monitoring setup for scalable energy management projects. The meter supports 400Vac L-N and 690Vac L-L voltage ranges and 50/60 Hz operation, ensuring compatibility with global industrial feeders and multi-site deployments. With 512 samples per cycle for waveform capture, you gain high-resolution power quality data to identify transients, harmonic distortion, and abnormal loading patterns, driving proactive maintenance and improved reliability. The built-in RS485 port with Modbus-RTU and DNP3.0 enables seamless integration with SCADA, energy management systems, and PLCs, minimizing custom interfacing work and accelerating ROI. ANSI C12.20 Class 0.1 accuracy provides trusted measurement for energy billing, compliance reporting, and performance benchmarking, reducing the risk of revenue leakage. UL Recognized and CE Marked, the PXE2MB1V3 meets rigorous regulatory requirements, helping you satisfy supplier audits and customer contracts. Its LCD display offers local readouts for quick verification during commissioning and commissioning-free diagnostics, supporting field technicians and maintenance teams in day-to-day operations.
Get a Quick Quote for a Eaton PXE2MB1V3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXE2MB1V3?
Enquire Now
FAQs
The PXE2MB1V3 fits standard electrical enclosures with its compact 4x4x2.5 inch form factor and 1 lb weight. It supports 400Vac L-N and 690Vac L-L and 50/60 Hz, making it suitable for most global power distribution panels. Its RS485 port with Modbus-RTU and DNP3.0 minimizes integration effort with existing SCADA or energy management systems, reducing engineering time and risk during installation.
Key specs include 400Vac L-N and 690Vac L-L voltage ratings, 50/60 Hz frequency, 512 samples per cycle for waveform capture, and ANSI C12.20 Class 0.1 revenue accuracy. It features a built-in RS485 port supporting Modbus-RTU and DNP3.0, a 4 inch depth, 4 inch height, and 2.5 inch width, plus UL Recognized and CE Marked certifications for compliance and reliability in industrial environments.
Yes. The meter provides high-accuracy energy data, transient capture, and compatibility with standard industrial networks, making it ideal for manufacturing lines and plant-wide energy management initiatives. Its Modbus-RTU and DNP3.0 interfaces support integration with plant SCADA and analytics platforms, enabling real-time monitoring, load shedding, and demand management to reduce energy costs.
Absolutely. The device carries UL Recognized certification and CE marking, confirming compliance with safety and performance standards. ANSI C12.20 Class 0.1 accuracy further supports regulatory reporting and billing accuracy, while its robust electrical ratings ensure reliable operation in industrial environments.
The meter delivers faster commissioning, improved energy visibility, and better fault detection, reducing energy waste and unplanned downtime. Its durable build and standard communication interfaces lower lifecycle costs by simplifying upgrades, scaling to additional panels, and enabling data-driven maintenance planning, resulting in measurable energy cost reductions over time.
