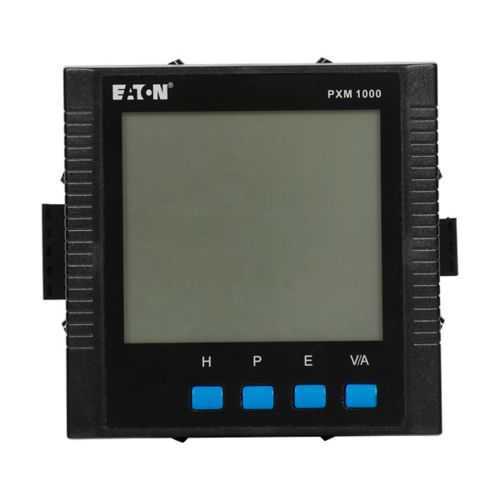

Eaton Power Xpert meter 1000 PXM1000MA11 - UL Recognized
Part Number: PXM1000MA11
Quick Summary
Eaton Power Xpert meter 1000 delivers precise energy measurement for industrial power distribution. This compact energy meter helps facilities monitor consumption, detect inefficiencies, and streamline reporting across a plant floor. Too often, teams confront siloed readings and manual data collection that delay optimization and waste energy. It carries CE Marked and UL Recognized certifications to meet common safety and interoperability standards, supporting reliable operation across global sites. With Modbus RTU RS-485 and DNP3.0, it integrates smoothly with energy management systems and control platforms. Its 1A current input and flexible power-supply options enable fast, scalable deployment within power management and distribution initiatives, delivering measurable improvements in accuracy and operational insight.
Product Information
Extended Description
PXM1000MA11 Eaton: Eaton Power Xpert meter 1000, Energy meter, LCD display, Frequency range 45-65Hz, Nominal current input 1A, Power supply 100-415Vac or 100-300Vdc, Built-in RS485 port with Modbus-RTU and DNP3.0 protocol
Product Name
Eaton Power Xpert meter 1000
Catalog Number
PXM1000MA11
UPC
786680173769
Product Length/Depth
4 in
Product Height
4 in
Product Width
2.5 in
Product Weight
1 lb
Warranty
1 year
Compliances
Contact Manufacturer CE Marked
Certifications
UL Recognized
Type
Meter
ANSI % revenue accuracy
C12.20 (0.2)
Communications
Modbus RTU (RS - 485)
Current sensor input
1A
I/O capability
Digital Input/Output Analog Input/Output Prog. Pulse Output --Wh, Varh, Vah
Memory
None
Power quality analysis
K-Factor & Crest Factor
Waveform capture sampling rate
None
Frequency rating
60 Hz
Voltage rating
100-415 Vac, 100-300 Vdc
Power Systems Experience Center Tour – Metering Focus
Power Systems Experience Center Tour – Metering Focus
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1000MA11
Feature: Current sensor input of 1A enables direct measurement with minimal interface hardware, reducing wiring complexity and overall install cost. Business Impact: Faster commissioning and lower capital expenditure for panel upgrades. Application: Ideal for motor feeders and panel meters where space and simplicity matter. Feature: Power supply options of 100-415 Vac or 100-300 Vdc provide flexible installation across diverse sites. Business Impact: Unified device footprint across facilities with mixed electrical infrastructures, reducing stock and training needs. Application: Useful in multi-plant rollouts and retrofit projects where supply diversity exists. Feature: Built-in Modbus RTU RS-485 and DNP3.0 communications. Business Impact: Seamless SCADA/EMS integration, fewer external gateways, and improved data reliability. Application: Central energy management, remote monitoring, and interconnection with PLCs. Feature: Digital I/O, Analog I/O, and Programmable Pulse Output (Wh, Varh, Vah). Business Impact: Local signaling, event-driven control, and flexible revenue metering without extra interface hardware. Application: Alarms, control loops, and pulse-based energy settlements. Feature: Power quality analysis via KP factors such as K-Factor and Crest Factor. Business Impact: Enhanced visibility into non-linear loads and transient events, supporting preventive maintenance. Application: Data centers, sheet-metal shops, and manufacturing lines. Feature: ANSI revenue accuracy of C12.20 (0.2%). Business Impact: High-fidelity energy accounting improves billing, chargeback accuracy, and regulatory reporting. Application: Industrial energy auditing and tariff compliance. Feature: Memory: None; relies on external logging via Modbus. Business Impact: Simplified device design with external historians or MES integration. Application: Long-term trending when paired with a historian or ERP integration. Feature: Warranty of 1 year and CE UL certifications. Business Impact: Assurance of quality and compliance, supporting maintenance planning and vendor support. Application: Enterprise deployments requiring formal vendor commitments and standard certifications.
Get a Quick Quote for a Eaton PXM1000MA11
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1000MA11?
Enquire Now
FAQs
Connect the RS-485 Modbus RTU port and set the device address as per your SCADA or EMS. Power the meter from 100-415 Vac or 100-300 Vdc, and wire the 1A current sensor input to the load path. Use the LCD for basic verification and ensure CE UL compliance before commissioning.
The meter operates at 60 Hz with voltage ratings of 100-415 Vac or 100-300 Vdc and a 1A current input. It provides 0.2% ANSI revenue accuracy (C12.20), supports Modbus RTU RS-485 and DNP3.0, and offers Digital/Analog I/O with programmable pulse outputs for Wh, Varh, and Vah.
Yes. Its flexible power options, 1A input, and Modbus/ DNP3.0 communications enable real-time monitoring and integration with MES/SCADA. The device’s power-quality analysis and pulse outputs support line-level energy accounting and fine-grained control on production lines.
The PXM1000MA11 is CE Marked and UL Recognized, meeting common safety and interoperability standards for global deployment. It ships with a 1-year warranty, providing reliability and vendor support for maintenance planning.
ROI comes from reduced wiring complexity, faster deployment, and improved energy visibility. With onboard communication and external logging compatibility, you gain accurate billing, better energy management, and quicker fault detection, all contributing to lower energy costs and higher uptime.
