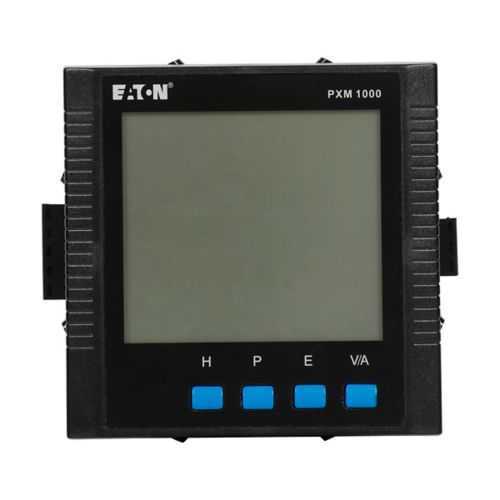

Eaton PXM1000MB13 Power Xpert Meter - UL Recognized
Part Number: PXM1000MB13
Quick Summary
Power Xpert meter 1000 is a multifunction power and energy meter for industrial electrical monitoring. Engineers frequently contend with meters that fail to integrate smoothly with Modbus-RTU and DNP3.0 or that struggle in variable power conditions. UL Recognized and CE Marked certifications support reliability and regulatory compliance in challenging environments. For procurement and engineering teams, this means faster commissioning, lower integration costs, and clearer energy insights across multiple sites. The device's compact footprint and flexible 100-415Vac or 100-300Vdc supply enable seamless deployment within existing automation architectures, accelerating energy management initiatives and improving overall power quality visibility.
Product Information
Extended Description
PXM1000MB13 Eaton: Eaton Power Xpert meter 1000, multifunction power and energy meter, LCD display,, Frequency range 45-65Hz, Nominal current input 333mV, Power supply 100-415Vac or 100-300Vdc, Built-in RS485 port with Modbus-RTU and DNP3.0 protocol
Product Name
Eaton Power Xpert meter 1000
Catalog Number
PXM1000MB13
UPC
786689771645
Product Length/Depth
4 in
Product Height
4 in
Product Width
2.5 in
Product Weight
0.93 lb
Compliances
Contact Manufacturer CE Marked
Certifications
UL Recognized
Power Systems Experience Center Tour – Metering Focus
Power Systems Experience Center Tour – Metering Focus
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1000MB13
Feature: RS485 port with Modbus-RTU and DNP3.0. Benefit: Enables seamless integration with SCADA, BMS, and EMS platforms, reducing wiring complexity and commissioning time. Application: Suitable for data centers, manufacturing lines, and control panels needing real-time energy data. Feature: Flexible power supply 100-415Vac or 100-300Vdc. Benefit: Supports diverse site voltages, simplifying retrofit projects and minimizing cabinet changes. Application: Ideal for multi-site installations and retrofits without a dedicated DC power rail. Feature: Compact 4 in L x 4 in H x 2.5 in W form factor and LCD display. Benefit: Easy panel mounting, quicker installations, and readable local diagnostics to cut maintenance cycles. Application: Retrofit of crowded electrical cabinets where space is at a premium. Feature: Frequency range 45-65 Hz and nominal current input 333 mV. Benefit: Maintains measurement accuracy across regional grids and low-current sensing for precise energy profiling. Application: Industrial processes with variable frequencies and tight energy budgeting. Feature: Certifications and compliance with UL Recognized and CE Marked. Benefit: Streamlined supplier qualification and regulatory alignment, reducing risk and audit effort. Application: Global rollout across plants with stringent procurement standards and supplier qualification processes.
Get a Quick Quote for a Eaton PXM1000MB13
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1000MB13?
Enquire Now
FAQs
Install the PXM1000MB13 in a panel with the compact 4 in L x 4 in H x 2.5 in W footprint, ensuring proper clearance for the LCD display. Connect the nominal 333 mV current input and wire the RS485 Modbus-RTU and DNP3.0 ports to your SCADA or EMS network. Use the 100-415Vac or 100-300Vdc power rails to power the unit, and verify CE and UL labeling for compliance. The meter ships with clear mounting guidelines and simple terminal access to minimize commissioning time and wiring errors.
Key specs include a frequency range of 45-65 Hz, nominal current input of 333 mV, and a flexible power supply range of 100-415Vac or 100-300Vdc. The device includes an LCD display for local readouts and an RS485 port supporting Modbus-RTU and DNP3.0. Confirm the UPC 786689771645 and that the unit carries UL Recognized certification and CE Marked compliance for regulatory alignment.
Yes. The meter includes a built-in RS485 port that supports both Modbus-RTU and DNP3.0 protocols, enabling straightforward integration with common industrial control, SCADA, and energy-management systems. This compatibility reduces integration risk, speeds commissioning, and improves interoperability across disparate device vendors in data centers, manufacturing floors, and utility panels.
The PXM1000MB13 carries UL Recognized certification and CE marking. UL Recognized confirms electrical and reliability standards for critical equipment, while CE marking indicates conformity with European safety and performance regulations. Together, they reduce supplier qualification effort, support regulatory compliance across markets, and enhance supplier confidence during audits and certifications.
Expected ROI comes from faster commissioning due to ready-made Modbus-RTU and DNP3.0 connectivity, reduced wiring complexity thanks to the flexible power input, and improved energy visibility enabling targeted energy-management initiatives. The LCD display and compact form factor simplify maintenance checks, while UL and CE certifications lower audit risk. Over time, accurate energy data supports better load management and potential energy cost reductions.
