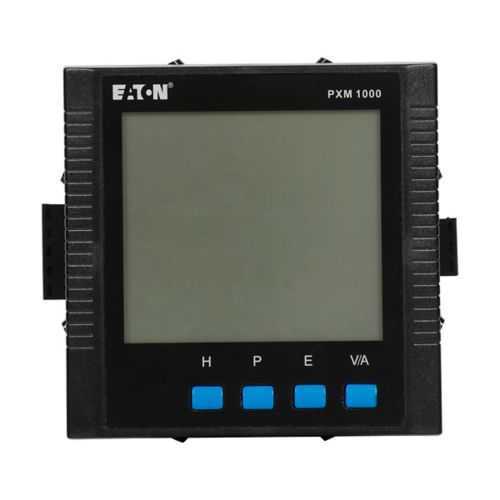

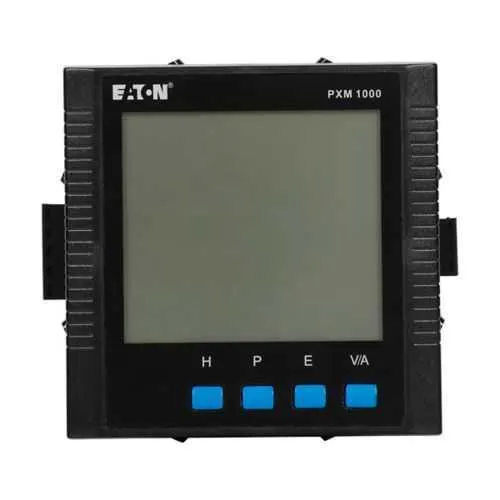

Eaton PXM1000MB15 Power Xpert Meter - UL Recognized
Part Number: PXM1000MB15
Quick Summary
Power Xpert Meter PXM1000MB15 is a multifunction power and energy meter designed for electrical panels and energy management systems. Engineers often struggle with data silos and integration frictions when monitoring power usage across assets. This meter carries UL Recognized and CE marks, includes an RS485 port with Modbus-RTU/DNP3.0, and supports a wide input range. A compact 4x4x2.5 in package with a clear LCD display makes on-site readouts straightforward while enabling scalable energy analytics. With 100-415Vac or 100-300Vdc power supply and a 5A nominal input, it fits diverse industrial installations and reduces wiring diversity.
Product Information
Extended Description
PXM1000MB15 Eaton: PXM 1000 multifunction power and energy meter, LCD display, Frequency range 45-65Hz,, Nominal current input 5A, Power supply 100-415Vac or 100-300Vdc, Built-in RS485 port with Modbus-RTU and DNP3.0 protocol
Product Name
Eaton Power Xpert meter 1000
Catalog Number
PXM1000MB15
UPC
786689771690
Product Length/Depth
4 in
Product Height
4 in
Product Width
2.5 in
Product Weight
1 lb
Compliances
Contact Manufacturer CE Marked
Certifications
UL Recognized
Power Systems Experience Center Tour – Metering Focus
Power Systems Experience Center Tour – Metering Focus
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1000MB15
Flexible power supply compatibility reduces dedicated power circuits and simplifies panel integration, resulting in faster installation and lower hardware costs. The built-in RS485 port with Modbus-RTU and DNP3.0 interfaces enables seamless integration with existing SCADA and energy management systems, cutting commissioning time and enabling real-time data-driven decisions. The LCD display provides on-site visibility, while modular software updates from Power Xpert Meter software v3.7.3 ensure continued performance and security; these capabilities translate into fewer field visits and lower maintenance costs. Its compact 4 in L x 4 in H x 2.5 in W footprint fits crowded enclosures, enabling scalable deployments across multiple panels. Certifications including UL Recognized and CE Marked help meet regulatory requirements and reduce risk when specifying meters for critical infrastructure. The 45-65 Hz frequency range supports utility-compatible measurement with standard power systems, ensuring accurate reporting across diverse facilities.
Get a Quick Quote for a Eaton PXM1000MB15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1000MB15?
Enquire Now
FAQs
The PXM1000MB15 is a compact meter designed for electrical panels, switchgear, and energy-management systems. It supports 100-415Vac or 100-300Vdc, a 5A nominal input, and a 45-65 Hz operating range, with an RS485 port for Modbus-RTU and DNP3.0 communication. This combination ensures reliable metering across diverse industrial environments and eases panel integration.
Key performance specs include a 5A nominal input, wide supply range (100-415Vac or 100-300Vdc) and 45-65 Hz compatibility, ensuring accurate energy measurement across utility and industrial systems. The built-in RS485 interfaces Modbus-RTU and DNP3.0, enable reliable data collection for SCADA and energy analytics, reducing integration time and project risk.
Yes. The meter is UL Recognized and CE marked, addressing common regulatory requirements for electrical devices used in critical facilities. These certifications reduce compliance risk in regulated environments and support validation workflows for deployments in manufacturing, data centers, and infrastructure projects seeking standardization.
Integration is straightforward thanks to the RS485 port and dual protocol support. Modbus-RTU and DNP3.0 enable seamless data exchange with SCADA, EMS, and facility meters across multiple panels. The compact form factor also eases retrofit projects where space in electrical enclosures is constrained, enabling scalable deployments.
Total cost of ownership is lowered by built‑in features and lifecycle support. With software options like Power Xpert Meter software version 3.7.3, remote firmware updates, and UL/CE compliance reducing validation efforts, ongoing maintenance is minimized. The meter’s data capabilities support energy analytics and faster ROI through improved asset utilization.
