Eaton PXM1000MB15-1 Power Xpert Meter 1000 - UL Recognized
Part Number: PXM1000MB15-1
Quick Summary
Eaton Power Xpert meter 1000 measures power and energy for industrial electrical distributions. Designed for panel-level monitoring, it helps you detect energy waste and prevent overloads without interrupting operations. CE marked and UL Recognized, it supports 45–65 Hz operation and flexible power options from 100-415Vac or 100-300Vdc, enabling regulatory compliance in diverse environments. With built-in RS485 communications featuring Modbus-RTU and DNP3.0, it integrates smoothly with SCADA, MES, and energy-management software. This compact metering solution delivers fast ROI through accurate data, improved asset reliability, and actionable insights for your facility’s energy strategy.
Product Information
Extended Description

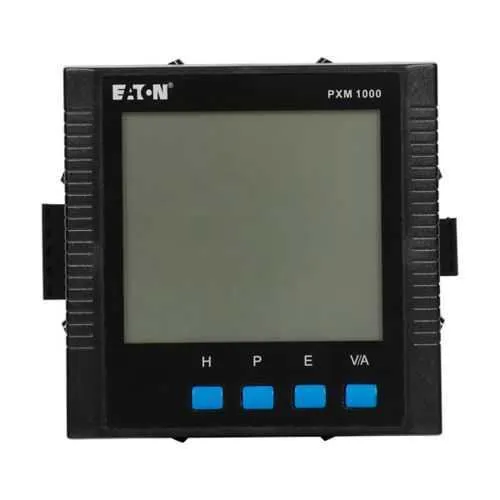

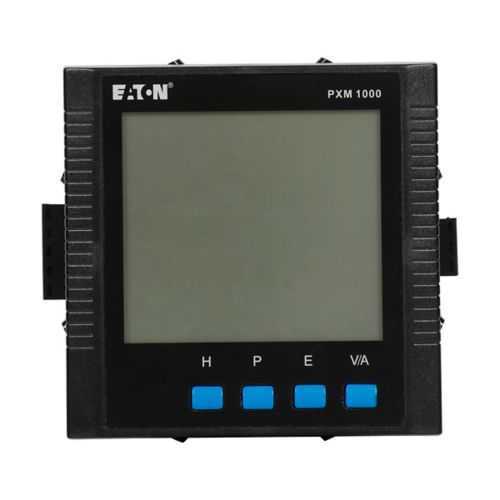

PXM1000MB15-1 Eaton: PXM 1000 power and energy meter,, Ring terminal, LCD display, Frequency range 45-65Hz,, Nominal current input 5A, Power supply 100-415Vac or 100-300Vdc, Built-in RS485 port with Modbus-RTU and DNP3.0 protocol
Product Name
Eaton Power Xpert meter 1000
Catalog Number
PXM1000MB15-1
UPC
786689771706
Product Length/Depth
4 in
Product Height
4 in
Product Width
2.5 in
Product Weight
1 lb
Compliances
Contact Manufacturer CE Marked
Certifications
UL Recognized
Power Systems Experience Center Tour – Metering Focus
Power Systems Experience Center Tour – Metering Focus
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1000MB15-1
Feature → Business Impact → Application: Built-in RS485 with Modbus-RTU and DNP3.0 enables seamless integration with SCADA, MES, and energy software, delivering centralized visibility and reducing commissioning time across manufacturing lines and data centers. Result: faster fault detection and energy optimization. Application: retrofits or new panel installations requiring reliable communications. Feature → Flexible power input: 100-415Vac or 100-300Vdc with nominal 5A input supports diverse installation scenarios, simplifying procurement and minimizing transformers or adapters. Result: reduced installation cost and downtime. Application: mixed-power environments and equipment rooms. Feature → Compact form factor (4 in L, 4 in H, 2.5 in W) and 1 lb weight with ring terminals and LCD display streamline panel mounting, wiring, and on-site verification. Result: easier upgrades and faster commissioning. Application: tight electrical enclosures and retrofit projects. Feature → Compliance posture with CE Mark and UL Recognized ensures regulatory compliance and safe operation in critical facilities. Result: lower risk of non-conformance and faster audits. Application: control panels, switchgear assemblies, and energy-monitoring networks. Feature → Software compatibility with Power Xpert Meter 1000 software (v3.7.3) provides up-to-date features and firmware, reducing maintenance overhead. Result: improved accuracy and reliability. Application: ongoing energy-data management and reporting. This combination of specifications supports professionals seeking reliable, standards-compliant metering that accelerates energy insights and operational efficiency.
Get a Quick Quote for a Eaton PXM1000MB15-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1000MB15-1?
Enquire Now
FAQs
The PXM1000MB15-1 mounts in a compatible panel enclosure using the provided ring terminals for the input connection and standard wiring practices. It features an RS485 port with Modbus-RTU and DNP3.0, allowing straightforward integration with existing SCADA or energy-management systems. Ensure the supply is within 100-415Vac or 100-300Vdc and set the Modbus address according to your field network plan. Validate communication with a loopback test or through the connected HMI software to confirm data is reported accurately.
Key specifications include a nominal input current of 5A, a voltage supply range of 100-415Vac or 100-300Vdc, and a frequency range of 45-65 Hz. Communication is via built-in RS485 supporting Modbus-RTU and DNP3.0. The meter includes a 4 x 4 in footprint with 4 in depth and a 2.5 in width, and it is UL Recognized with CE compliance, providing assurance for panel installations and data integration.
Yes. Its accurate power and energy measurement, combined with Modbus-RTU and DNP3.0 communication, supports centralized energy monitoring in data centers and manufacturing environments. The compact form factor and LCD display simplify installation in restricted spaces, while UL and CE certifications help meet industry compliance standards. The meter’s data can feed into energy dashboards to drive efficiency improvements and cost reductions.
The PXM1000MB15-1 is UL Recognized and CE Marked, indicating safety and regulatory compliance for global panel installations. These certifications support regulatory audits, ensure safety in electrical enclosures, and facilitate approvals in multinational facilities. For engineers, this minimizes risk when integrating the meter into compliance-driven energy-management programs.
Eaton provides software updates for the Power Xpert Meter 1000 series, with the latest version referenced as v3.7.3 for the PXM1000MB15-1. Regular firmware and software updates improve measurement accuracy, security, and compatibility with evolving SCADA or MES systems. This reduces maintenance costs, extends device life, and enhances ROI through more reliable energy analytics and faster fault diagnosis.
