Eaton PXM1000MB1R-1 Power Xpert meter 1000 - UL Recognized
Part Number: PXM1000MB1R-1
Quick Summary
Power Xpert meter 1000 from Eaton provides precise power and energy monitoring for industrial electrical systems. Engineers often struggle with data silos and limited visibility into real-time consumption, demand, and losses across feeders. The device carries UL Recognized certification and CE Marking, supporting audit readiness and safe operation in diverse markets. It accepts a wide power range—100-415Vac or 100-300Vdc—and features an RS485 port with Modbus-RTU and DNP3.0 for seamless integration into existing SCADA and energy-management workflows. Built to work exclusively with PXM 1000 Rogowski Coil CTs, this meter delivers reliable, on-site diagnostics, while the LCD display and ring-terminal connections simplify commissioning and diagnostics across the facility.
Product Information
Extended Description
PXM1000MB1R-1 Eaton: PXM 1000 power and energy meter, Ring Terminal, LCD Display, Frequency range 45-65Hz,, Works exclusively with PXM 1000 Rogowski Coil CTs, Power supply 100-415Vac or 100-300Vdc, Built-in RS485 port with Modbus-RTU and DNP3.0 protocol
Product Name

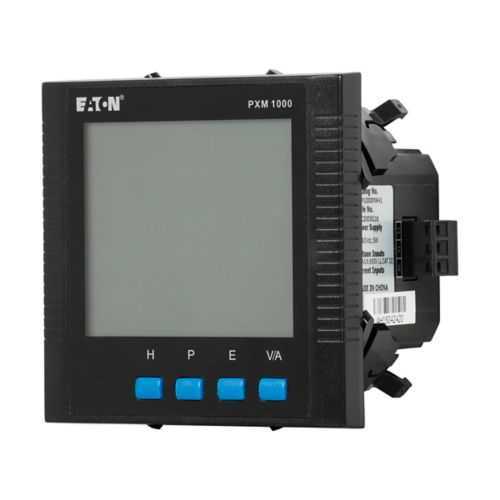

Eaton Power Xpert meter 1000
Catalog Number
PXM1000MB1R-1
UPC
786689771720
Product Length/Depth
5 in
Product Height
4.5 in
Product Width
5 in
Product Weight
0.9 lb
Compliances
Contact Manufacturer CE Marked
Certifications
UL Recognized
Power Xpert Meters
Power Xpert Meters
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1000MB1R-1
Rogowski coil CT compatibility is a core feature, enabling precise current sensing without bulky transformers. Business impact: reduces installation complexity, lowers wiring, and improves measurement accuracy for high-current loads. Application: ideal for data centers and manufacturing lines where conductor routing is tight and retrofits require minimal downtime. Built-in RS485 port with Modbus-RTU and DNP3.0 ensures standard industrial communication, enabling straightforward integration with existing SCADA and energy-management systems. This accelerates data consolidation, streamlines reporting, and supports regulatory compliance. The meter's wide power supply range of 100-415Vac or 100-300Vdc, plus an LCD display and ring-terminal connections, simplifies on-site installation and field diagnostics. Application scenarios include retrofit projects and new-build facilities seeking fast commissioning and reliable operation. Compact dimensions (5 in x 5 in) and a light 0.9 lb weight aid mounting in crowded electrical panels, while UL Recognized and CE Marked status support audits and cross-border deployment. Compatibility with PXM 1000 Rogowski Coil CTs enables precise, non-invasive current measurements for challenging installations, such as data centers, switchgear rooms, and automated manufacturing lines.
Get a Quick Quote for a Eaton PXM1000MB1R-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1000MB1R-1?
Enquire Now
FAQs
The PXM1000MB1R-1 is designed to pair with PXM 1000 Rogowski Coil CTs for non-invasive current sensing. Installers should mount the CTs on target feeders, wire the meter’s Ring Terminal power connection to a 100-415Vac or 100-300Vdc supply, and connect the RS485 Modbus-RTU or DNP3.0 bus to the control system. Ensure proper enclosure, secure conduit routing, and verify communication addresses to prevent bus conflicts. This setup minimizes downtime and simplifies commissioning in retrofit projects.
Key specifications include a frequency range of 45-65 Hz, a power supply range of 100-415Vac or 100-300Vdc, and built-in RS485 with Modbus-RTU and DNP3.0 protocols. It supports operation with PXM 1000 Rogowski Coil CTs, features an LCD display, and uses ring-terminal connections for reliable field wiring. These specs enable flexible integration into varied electrical networks while maintaining accurate power and energy measurements.
Yes. The PXM1000MB1R-1 carries UL Recognized certification and CE Marking, reflecting compliance with safety and regulatory requirements for North American and European deployments. This supports audit readiness, smoother vendor qualification, and safer integration into corporate risk-management programs across multiple regions.
Expect improved energy visibility and accurate usage data, enabling better demand management and cost reduction. The Modbus-RTU and DNP3.0 support simplify SCADA integration, reducing integration time and maintenance costs. UL CE certifications help with compliance audits, while Rogowski CT compatibility allows non-invasive retrofits, minimizing downtime during installation.
The built-in RS485 port provides standardized, industry-proven communication. Modbus-RTU enables straightforward data exchange with common PLCs and SCADA systems, while DNP3.0 supports robust, substation-grade data communication. Together, they streamline real-time monitoring, event reporting, and energy analytics, reducing integration risk and accelerating time-to-value for energy-management initiatives.
