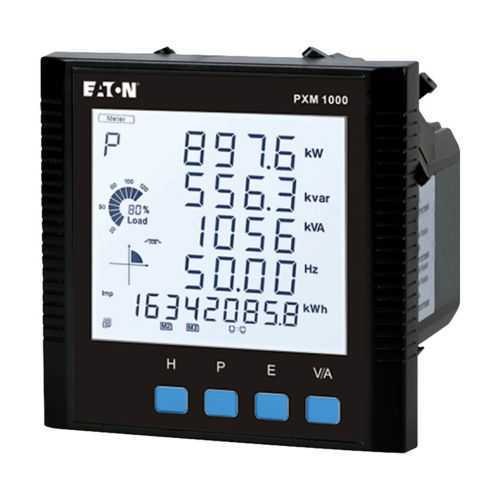

Eaton Power Xpert meter 1000 PXM1000MB41 - UL Recognized
Part Number: PXM1000MB41
Quick Summary
Power Xpert meter 1000 by Eaton provides precise energy monitoring for low-voltage distribution and industrial equipment. Engineers often grapple with integrating meters into existing Modbus-RTU and DNP3.0 networks while ensuring accuracy and uptime. CE marking and UL Recognized certification demonstrate compliance with essential safety and performance standards, helping you meet regulatory requirements and avoid costly testing. With built-in RS485, a compact 4 x 4 inch footprint, and universal 20–60VDC power, this meter minimizes cabinet changes and installation time. Optimized for panel builders and integrators, it supports scalable energy analytics and reliable data collection, delivering measurable improvements in energy visibility, asset utilization, and maintenance planning. Its footprint and LCD display streamline commissioning in retrofit projects.
Product Information
Extended Description
PXM1000MB41 Eaton: PXM 1000 multifunction power and energy meter, LCD display, Frequency range 45-65Hz,, Nominal current input 1A, Power supply 20-60Vdc, Built-in RS485 port with Modbus-RTU and DNP3.0 protocol
Product Name
Eaton Power Xpert meter 1000
Catalog Number
PXM1000MB41
UPC
786689771775
Product Length/Depth
4 in
Product Height
4 in
Product Width
2.5 in
Product Weight
1 lb
Compliances
Contact Manufacturer CE Marked
Certifications
UL Recognized
Power Xpert Meters
Power Xpert Meters
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1000MB41
Feature: Multifunction power and energy meter with an onboard LCD display. Business Impact: Delivers real-time power and energy data within a single device, reducing the need for separate meters and simplifying reporting. Application: Ideal for panel-level energy management in low-voltage distributions and industrial equipment stacks, enabling faster decision-making and improved energy accountability. Feature: Nominal current input of 1 A and flexible power supply from 20 to 60 VDC. Business Impact: Lowers installation complexity by accommodating a wide range of supply configurations and minimizing shunt requirements. Application: Retrofit projects and new builds alike, where space and wiring simplicity matter for installation efficiency. Feature: Built-in RS485 port supporting Modbus-RTU and DNP3.0 protocols. Business Impact: Seamless integration with existing SCADA, remote monitoring, data logging, and interoperability across vendors. Application: Utility-scale and industrial facilities that rely on standard protocols for centralized energy analytics. Feature: Compact footprint of 4 in x 4 in x 2.5 in and 1 lb weight, with CE marking and UL Recognized certification. Business Impact: Easy installation in crowded panel enclosures and reduced risk through recognized safety standards. Application: OEM panel builders and service contractors needing reliable, compliant metering in restricted spaces. Feature: Compatibility with Eaton Power Xpert ecosystem and software updates (Power Xpert Meter 1000 software v3.7.3). Business Impact: Ensures firmware updates, long-term support, and alignment with enterprise energy management strategies. Application: Deployment in digital energy management programs, asset performance improvement, and maintenance planning.
Get a Quick Quote for a Eaton PXM1000MB41
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1000MB41?
Enquire Now
FAQs
The PXM1000MB41 is a compact 4 in × 4 in × 2.5 in meter weighing about 1 lb. Mount it in any suitable low-voltage panel, ensuring adequate clearance for wiring and the LCD display. Connect the 20–60 VDC power supply, the 1 A current input, and the RS485 bus for Modbus-RTU or DNP3.0 communication. Align with CE and UL requirements and verify secure terminal connections for reliable operation.
Key specifications include nominal current input of 1 A, a supply range of 20–60 VDC, and a frequency range of 45–65 Hz. The device features a built-in RS485 port supporting Modbus-RTU and DNP3.0, and it provides energy and power data through an LCD display for easy local viewing and verification during commissioning.
Yes. The meter is designed for panel-level energy management in low-voltage distributions and industrial equipment. Its compact form factor, RS485 communications, and 1 A sensing input enable accurate real-time monitoring, fault detection, and integration with SCADA/EMIS systems, supporting data-driven efficiency improvements and energy transparency across facilities.
The PXM1000MB41 is CE marked and UL Recognized, indicating adherence to essential safety and performance standards. These certifications reduce regulatory risk, streamline acceptance in regulated environments, and provide assurances for durable operation in commercial and industrial applications.
The meter supports firmware updates via Eaton’s Power Xpert ecosystem (software version 3.7.3 available), enabling ongoing improvements and compatibility with evolving energy management strategies. By consolidating power and energy data in one device, it reduces wiring, lowers maintenance costs, and enables more accurate energy analytics for ROI through better asset utilization and maintenance planning.
