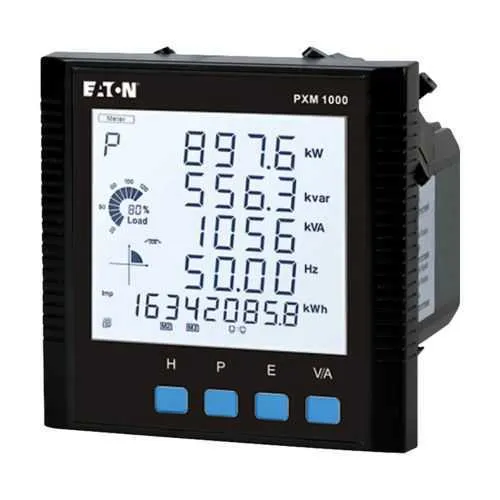

Eaton PXM1000MB43 Power Xpert Meter - UL Recognized
Part Number: PXM1000MB43
Quick Summary
Power Xpert meter 1000 by Eaton provides precise energy monitoring for industrial power systems. Facilities struggle with energy waste, inconsistent data, and downtime that erode margins. It is CE marked and UL Recognized, ensuring safety and interoperability across global sites. With a built-in LCD display and RS485 port supporting Modbus-RTU and DNP3.0, this meter delivers real-time analytics and fault visibility while fitting neatly inside standard control cabinets. By translating raw electrical measurements into actionable insight, it supports energy-management initiatives, regulatory reporting, and helps procurement and maintenance teams optimize ROI across plant-wide operations.
Product Information
Extended Description
PXM1000MB43 Eaton: PXM 1000 multifunction power and energy meter, LCD display, Frequency range 45-65Hz,, Nominal current input 333mV, Power supply 20-60Vdc, Built-in RS485 port with Modbus-RTU and DNP3.0 protocol
Product Name
Eaton Power Xpert meter 1000
Catalog Number
PXM1000MB43
UPC
786689771799
Product Length/Depth
5 in
Product Height
4.5 in
Product Width
5 in
Product Weight
1 lb
Compliances
Contact Manufacturer CE Marked
Certifications
UL Recognized
Power Xpert Meters
Power Xpert Meters
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1000MB43
Feature: Multifunction power and energy measurement with an LCD display provides on-site visibility of voltage, current, power, and energy usage. Business impact: Real-time data accelerates fault detection, reduces energy waste, and supports accurate billing and KPI tracking. Application: ideal for electrical panels and machine enclosures in manufacturing and process facilities. Feature: 45-65 Hz frequency range enables accurate monitoring across regional grids, reducing the need for multiple meters. Business impact: supports global deployments and consistent reporting. Application: international plants and multi-site operations. Feature: Built-in RS485 port with Modbus-RTU and DNP3.0 enables straightforward integration with SCADA and energy-management systems. Business impact: lowers commissioning time and wiring costs while improving data integrity. Application: connects to plant-wide energy analytics. Feature: Power supply 20-60 Vdc offers flexible powering from control circuits. Business impact: simplifies retrofits and reduces cabling complexity. Application: panel-mounted installations. Feature: Compact 5 in x 5 in footprint and 1 lb weight support easy retrofits in space-constrained enclosures. Business impact: minimizes panel disruption and thermal load. Application: upgrade projects in crowded cabinets. Feature: CE Marked and UL Recognized certifications reduce procurement risk and compliance overhead. Business impact: accelerates approvals and cross-site deployments. Application: regulated manufacturing environments and global facilities.
Get a Quick Quote for a Eaton PXM1000MB43
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1000MB43?
Enquire Now
FAQs
Begin by mounting the compact meter in a standard electrical enclosure. Connect the 333 mV input and 20–60 Vdc supply from the local control circuit, then wire the RS485 Modbus-RTU and DNP3.0 lines to your SCADA or energy-management system. The built-in LCD provides on-site verification during commissioning, and the Modbus-RTU/DNP3.0 support ensures compatibility with common energy analytics software without extra adapters.
The PXM1000MB43 supports 45–65 Hz operation, a 333 mV nominal input, and a 20–60 Vdc power supply. It includes an RS485 port with Modbus-RTU and DNP3.0 protocols, enabling robust, industry-standard communications. Its CE Marked and UL Recognized certifications provide safety and regulatory confidence, while the LCD display offers immediate local visibility for quick checks.
Yes. The meter is designed for industrial power monitoring and energy management across manufacturing, process industries, and multi-site facilities. Its RS485 communications and supported protocols facilitate integration with existing SCADA and MES systems, while the CE UL certifications support deployments in regulated environments. Its compact form factor eases retrofits in space-constrained electrical panels.
The PXM1000MB43 carries CE Marking compliance and UL Recognized certification. These credentials indicate conformance with essential safety, compatibility, and performance standards, enabling smoother procurement and faster approval processes in global operations. When paired with standard installation practices, these certifications help reduce project risk and support ongoing compliance reporting.
ROI is driven by real-time energy visibility, which enables targeted energy-reduction initiatives and improved billing accuracy. The meter’s Modbus-RTU and DNP3.0 interfaces simplify ongoing data integration, reducing maintenance overhead. With CE UL compliance and a reliable power supply, long-term reliability lowers maintenance costs and extends asset life in critical electrical systems.
