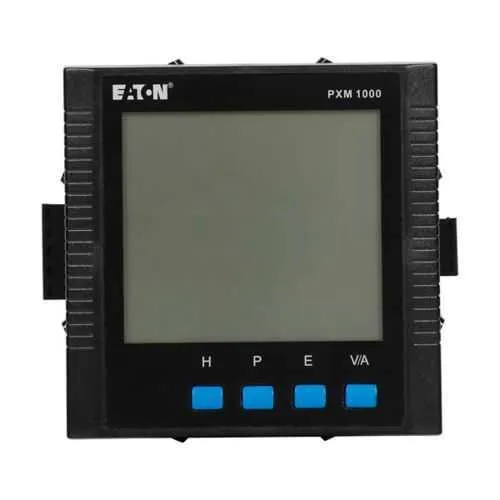

Eaton PXM1000MB43-1 Power Xpert Meter 1000 - UL Recognized
Part Number: PXM1000MB43-1
Quick Summary
Power Xpert meter 1000 from Eaton delivers accurate energy and power measurements for low- to mid-voltage distribution panels. Facility teams often struggle with fragmented data from multiple meters and manual reporting, creating blind spots in energy use and cost control. This unit carries UL Recognized and CE Marked certifications, ensuring safety and European compliance for inspections and installations. With built-in RS485, Modbus-RTU and DNP3.0, a clear LCD display, and a convenient ring-terminal connection, it delivers reliable local visibility and scalable data integration into existing SCADA and energy-management workflows. In short, it combines precise metering with easy deployment, reducing commissioning time while supporting ongoing compliance and reporting across the plant.
Product Information
Extended Description
PXM1000MB43-1 Eaton: PXM 1000 power and energy meter, Ring terminal, LCD display, Frequency range 45-65Hz,, Nominal current input 333mV, Power supply 20-60Vdc, Built-in RS485 port with Modbus-RTU and DNP3.0 protocol
Product Name
Eaton Power Xpert meter 1000
Catalog Number
PXM1000MB43-1
UPC
786689771805
Product Length/Depth
4 in
Product Height
4 in
Product Width
2.5 in
Product Weight
1 lb
Compliances
Contact Manufacturer CE Marked
Certifications
UL Recognized
Power Xpert Meters
Power Xpert Meters
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1000MB43-1
Built-in RS485 port with Modbus-RTU and DNP3.0 enables direct integration with SCADA and EMS networks, reducing wiring complexity and commissioning time while ensuring reliable data for energy analytics. The compact 4x4x2.5 inch footprint with ring-terminal connections simplifies panel mounting in crowded switchgear cabinets, helping installers meet tight space constraints without sacrificing accessibility for maintenance. The LCD display provides immediate local visibility, allowing technicians to verify readings during commissioning and routine checks without a laptop or handheld device, which shortens downtime. The meter supports a wide frequency range of 45-65 Hz and a nominal current input of 333 mV with a 20-60 Vdc power supply, offering broad compatibility across diverse electrical systems and configurations. CE marking and UL recognition deliver confidence to procurement and compliance teams, reducing project risk and smoothing audits. Designed for the Eaton Power Xpert ecosystem, it plugs into existing energy-management workflows and supports scalable deployment across facilities, data centers, and manufacturing lines, with predictable performance and straightforward maintenance.
Get a Quick Quote for a Eaton PXM1000MB43-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1000MB43-1?
Enquire Now
FAQs
Begin by selecting a suitable panel space for the 4x4x2.5 in enclosure. Mount the meter, attach ring-terminal connections to the monitored circuit with proper torque, and provide a 20–60 Vdc supply. Connect the RS485 port for Modbus-RTU or DNP3.0 to your SCADA/EMS network, power up, and verify the LCD readout and signal integrity. Ensure commissioning follows UL and CE guidelines.
Yes. The meter includes a built-in RS485 port that supports both Modbus-RTU and DNP3.0 protocols, enabling straightforward integration with existing SCADA and energy-management systems without additional adapters or converters.
The device is UL Recognized and CE Marked. UL Recognition confirms safety and suitability for electrical product use in the United States, while CE Marking demonstrates compliance with European safety and performance requirements. Together, they reduce procurement risk and simplify regulatory approvals for multi-region deployments.
The meter measures 4 inches in length, 4 inches in height, and 2.5 inches in width, weighing about 1 pound. It is designed for ring-terminal connections, enabling straightforward wiring in standard electrical panels and cabinets with limited space.
Ideal for electrical distribution panels, data centers, and manufacturing lines requiring accurate power and energy metering, the PXM1000MB43-1 integrates with SCADA and EMS platforms via RS485. It supports energy accounting, demand trending, and compliance reporting, helping facilities optimize energy usage and reduce operating costs.
