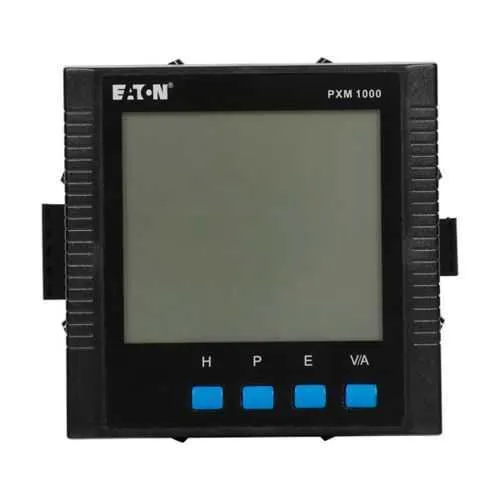

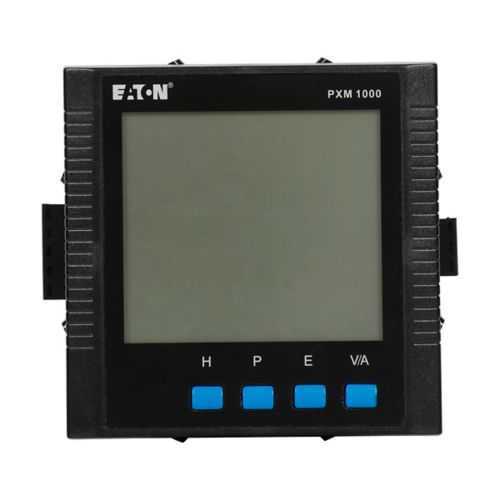

Eaton Power Xpert meter 1000 PXM1000MB45 - UL Recognized
Part Number: PXM1000MB45
Quick Summary
Power Xpert meter 1000 provides multifunction power and energy measurement for industrial automation and facilities. Engineers often struggle with fragmented data and limited integration into control systems. UL Recognized and CE Marked certifications help ensure compliance, safety, and reliability, while Modbus-RTU and DNP3.0 enable seamless integration with existing SCADA and PLC networks. By combining a compact 4 x 4 inch footprint with RS485 connectivity and a clear LCD display, it supports fast deployment in panels and enhances energy-management ROI. Designed for panel mounting and rugged environments, this meter delivers accurate measurements across 45–65 Hz systems and simplifies ongoing maintenance.
Product Information
Extended Description
PXM1000MB45 Eaton: PXM 1000 multifunction power and energy meter, LCD display, Frequency range 45-65Hz,, Nominal current input 5A, Power supply 20-60Vdc, Built-in RS485 port with Modbus-RTU and DNP3.0 protocol
Product Name
Eaton Power Xpert meter 1000
Catalog Number
PXM1000MB45
UPC
786689771850
Product Length/Depth
4 in
Product Height
4 in
Product Width
2.5 in
Product Weight
0.7 lb
Compliances
Contact Manufacturer CE Marked
Certifications
UL Recognized
Power Systems Experience Center Tour – Metering Focus
Power Systems Experience Center Tour – Metering Focus
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1000MB45
The PXM1000MB45 is a multifunction energy meter with an LCD display, delivering clear local readings and enabling faster decision-making in electrical rooms. This compact 4 x 4 inch footprint fits tight panels, reducing enclosure space and installation time, while improving overall space efficiency for retrofit projects in factories and data centers. Nominal current input of 5 A paired with a 20-60 Vdc supply supports flexible wiring schemes, lowering wiring costs and simplifying new installs. Built-in RS485 port with Modbus-RTU and DNP3.0 enables standardized data exchange with SCADA and PLC systems, cutting custom communication development and shortening commissioning. The 45-65 Hz frequency range expands applicability to diverse equipment, including drives and motors, without sacrificing accuracy. UL Recognized and CE Marked certifications reduce regulatory risk, supporting global deployments, audits, and maintenance planning. Its compact enclosure and lightweight design also streamline field replacement and serviceability, helping maintenance teams minimize downtime and extend asset life.
Get a Quick Quote for a Eaton PXM1000MB45
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1000MB45?
Enquire Now
FAQs
Mount the unit in a 4x4 in panel space with the 2.5 in width orientation as specified. Provide a 20-60 Vdc power supply, connect the 5 A current input, and wire the RS485 port to Modbus-RTU or DNP3.0-enabled devices. Verify USB/RS485 terminations as required by the environment and ensure CE/UL documentation is accessible during commissioning.
The meter includes a built-in RS485 port that supports Modbus-RTU and DNP3.0, enabling standard data exchange with SCADA, PLCs, and other control systems, reducing custom driver development and speeding up integration.
Yes. The device is specified to operate across a 45–65 Hz frequency range, making it compatible with a variety of equipment, including drives and equipment configured for non-60 Hz utilities.
The unit is UL Recognized and CE Marked. These certifications help support regulatory compliance, safety and reliability in global deployments, simplify audits, and reduce risk during procurement and installation.
It provides enhanced energy visibility, enabling data-driven optimization of energy use, reduces commissioning time through standard protocols, and supports faster return on investment through improved plant efficiency and reduced energy costs.
