Eaton PXM1000MB45-1 Power Xpert meter 1000 - UL Recognized
Part Number: PXM1000MB45-1
Quick Summary
Power Xpert meter 1000 is a compact energy meter designed for precise monitoring of industrial electrical distributions. Engineers often struggle to obtain consistent, real-time visibility across large panels and multiple loads. The device carries UL Recognized and CE Marked certifications, reinforcing safety, reliability, and regulatory compliance in demanding environments. With a 5A input, 20–60Vdc supply, and a built-in RS485 port supporting Modbus-RTU and DNP3.0, it plugs into existing control architectures and energy-management workflows, delivering actionable data for maintenance, efficiency, and cost reduction. This combination supports deeper sub-metering, enhanced power quality analysis, and streamlined commissioning across production lines.
Product Information
Extended Description

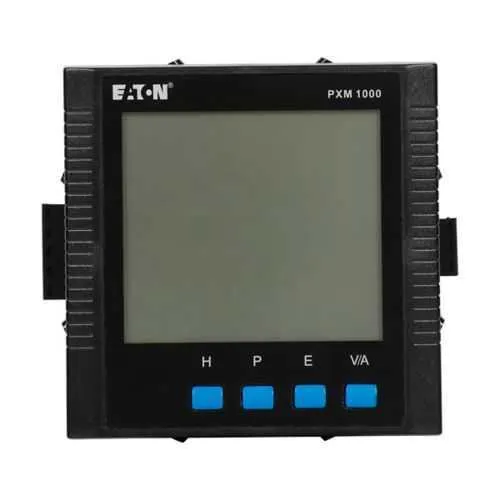

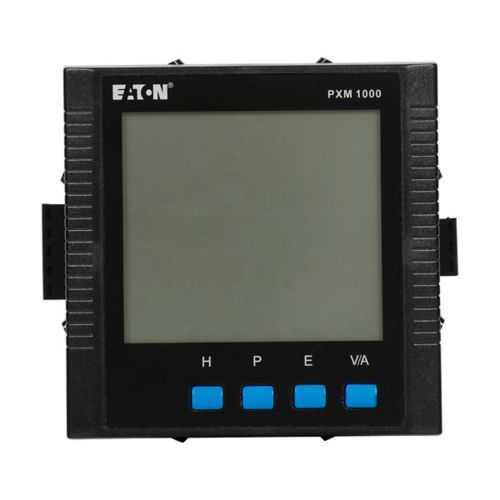

PXM1000MB45-1 Eaton: PXM 1000 power and energy meter, Ring terminal, LCD display, Frequency range 45-65Hz,, Nominal current input 5A, Power supply 20-60Vdc, Built-in RS485 port with Modbus-RTU and DNP3.0 protocol
Product Name
Eaton Power Xpert meter 1000
Catalog Number
PXM1000MB45-1
UPC
786689771867
Product Length/Depth
4 in
Product Height
4 in
Product Width
2.5 in
Product Weight
1 lb
Compliances
Contact Manufacturer CE Marked
Certifications
UL Recognized
Power Systems Experience Center Tour – Metering Focus
Power Systems Experience Center Tour – Metering Focus
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1000MB45-1
Feature → Business Impact → Application: The PXM1000MB45-1 delivers accurate power and energy measurements in a compact 4 in by 4 in by 2.5 in form factor (1 lb), enabling panel-level metering in tight electrical spaces. The nominal 5A input and 20–60Vdc supply simplify installation with standard power rails and ring terminal connections, reducing wiring costs and commissioning time, while ensuring reliable operation in harsh environments. This device’s built-in RS485 port with Modbus-RTU and DNP3.0 supports seamless integration with existing PLCs, SCADA, and energy-management software, improving data visibility and control across assets. Its 45–65 Hz frequency range makes it suitable for mixed-supply environments, including utilities and manufacturing floors, reducing the need for multiple meters. UL Recognized and CE Marked certifications provide compliance confidence, enabling faster audits and smoother procurement decisions. In practice, users see measurable efficiency gains and lower maintenance overhead when energy data informs maintenance planning and process optimization. The meter’s compact footprint also streamlines retrofit projects and enables scalable deployment in growing facilities, aligning with e-mobility, data-center, and grid-edge initiatives.
Get a Quick Quote for a Eaton PXM1000MB45-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1000MB45-1?
Enquire Now
FAQs
The meter fits standard panel spaces with a compact 4 x 4 x 2.5 inch footprint and weighs 1 lb. Use ring-terminal connections for the 5A input and connect the 20–60Vdc power supply. Its RS485 port supports Modbus-RTU and DNP3.0 for straightforward integration into existing control networks.
Nominal input: 5A; Power supply: 20–60Vdc; Frequency range: 45–65 Hz; Communications: RS485 with Modbus-RTU and DNP3.0; Certifications: UL Recognized and CE Marked.
Yes. It provides precise power and energy measurements and supports standards-based communications (Modbus-RTU and DNP3.0) for integration with energy-management systems, SCADA, and PLCs, enabling enhanced visibility and control across multiple loads.
The meter is UL Recognized and CE Marked, signifying compliance with safety and regulatory requirements for electrical equipment in North America and Europe, which can simplify procurement and audits in regulated environments.
By delivering real-time energy data and enabling faster fault detection, the meter supports energy waste reductions, improved regulatory compliance, and data-driven maintenance planning, which collectively drive faster ROI in manufacturing and data-center applications.
