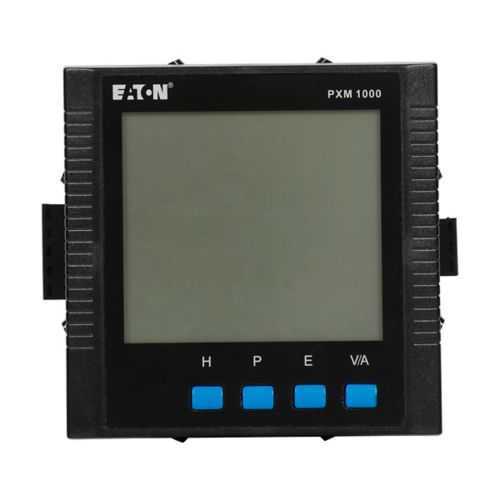

Eaton PXM1000MB4R Power Xpert meter 1000 - UL Recognized
Part Number: PXM1000MB4R
Quick Summary
Power Xpert meter 1000 from Eaton provides multifunction power and energy measurement for industrial electrical systems. Engineers often struggle with disparate meters and slow data access that impede real-time decision making. CE marked and UL Recognized certifications support safety, reliability, and global deployment in demanding environments. Built to work with PXM 1000 Rogowski Coil CTs and communicate via RS485 Modbus-RTU and DNP3.0, it enables accurate, unified energy data across facilities. This combination reduces wiring, improves visibility, and speeds audits.
Product Information
Extended Description
PXM1000MB4R Eaton: PXM 1000 multifunction power and energy meter, LCD display, Frequency range 45-65Hz,, Works exclusively with PXM 1000 Rogowski Coil CTs, Power supply 20-60Vdc, Built-in RS485 port with Modbus-RTU and DNP3.0 protocol
Product Name
Eaton Power Xpert meter 1000
Catalog Number
PXM1000MB4R
UPC
786689771874
Product Length/Depth
4 in
Product Height
4 in
Product Width
2.5 in
Product Weight
1 lb
Compliances
Contact Manufacturer CE Marked
Certifications
UL Recognized
Power Systems Experience Center Tour – Metering Focus
Power Systems Experience Center Tour – Metering Focus
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1000MB4R
Feature: Multifunction power and energy metering with an LCD display. Business Impact: Delivers consolidated measurements and a clear readout, reducing panel clutter and the need for multiple devices. Application: Ideal for main distribution panels, machine rooms, and data centers where quick energy visibility accelerates decision-making. Feature: Built-in RS485 port with Modbus-RTU and DNP3.0 protocols. Business Impact: Enables seamless integration with existing SCADA and energy-management systems, shortening commissioning and improving data reliability. Application: Industrial facilities and utilities deploying digital energy analytics across sites. Feature: Exclusive compatibility with PXM1000 Rogowski Coil CTs. Business Impact: Enhances current measurement accuracy while simplifying wiring and calibration. Application: Retrofit projects and new installations in high-current environments such as motor drives and switchgear. Feature: Wide power supply range of 20-60 Vdc and frequency range 45-65 Hz. Business Impact: Supports diverse control architectures and global operations without auxiliary changes. Application: Panels in multi-region facilities and equipment with variable power sources. Feature: Compact 4 x 4 x 2.5 inch footprint and 1 lb weight. Business Impact: Saves panel space and simplifies mounting in tight electrical enclosures. Application: Metering inserts in compact control cabinets and distributed energy applications. Feature: CE marking and UL Recognized certifications. Business Impact: Reduces procurement risk and accelerates regulatory approval for global deployments. Application: Projects requiring safety certification and standardized documentation across industries.
Get a Quick Quote for a Eaton PXM1000MB4R
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1000MB4R?
Enquire Now
FAQs
The PXM1000MB4R includes an RS485 port supporting Modbus-RTU and DNP3.0. Connect the RS485 lines to your PLC or SCADA gateway, assign a unique Modbus address, configure baud rate and parity per the system specification, and verify network communication with a basic read of voltage or energy parameters to confirm data flow.
This meter is designed to work exclusively with PXM1000 Rogowski Coil CTs, which simplifies current measurement and reduces wiring complexity. Rogowski CTs provide wide dynamic range and flexibility in tight spaces, improving accuracy in high-current environments while minimizing magnetic core saturation concerns.
The meter measures 4 inches in height and width, 4 inches in depth, and weighs about 1 pound. It is powered by a 20–60 Vdc supply, suitable for common control panels and remote installations, with a frequency tolerance of 45–65 Hz to accommodate regional power systems.
The PXM1000MB4R carries CE marking and UL Recognized certification, signaling compliance with European safety directives and North American safety standards. These certifications reduce regulatory risk, ease cross-border procurement, and support audit readiness for regulated industries.
Expect streamlined energy data collection, faster commissioning, and improved visibility for energy management initiatives. With Modbus-RTU and DNP3.0 integration, you gain reliable data for SCADA analytics, better tracking of energy usage, and a clearer path to ROI through efficiency gains and proactive maintenance planning.
