Eaton PXM1000MB4R-1 Power Xpert Meter 1000 - UL Recognized
Part Number: PXM1000MB4R-1
Quick Summary
Power Xpert meter 1000 is Eaton's high-precision energy meter designed for commercial and industrial power systems. Integrating this device into an existing energy management system can be challenging due to protocol gaps and data consistency across meters. UL Recognized and CE Marked certifications support regulatory compliance and electrical safety, while built-in RS485 with Modbus-RTU and DNP3.0 enables seamless integration with EMS and other automation platforms. The compact 4 by 4 inch form factor, 1 lb weight, and Rogowski Coil CT compatibility simplify installation in tight panels. This combination delivers actionable energy insight, supporting efficiency projects, demand reduction, and cost optimization for facilities and manufacturers.
Product Information
Extended Description

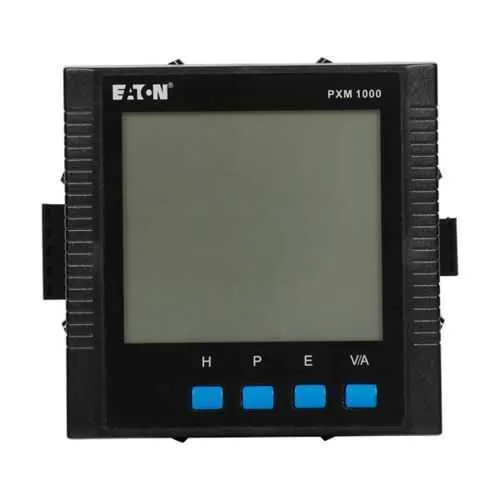

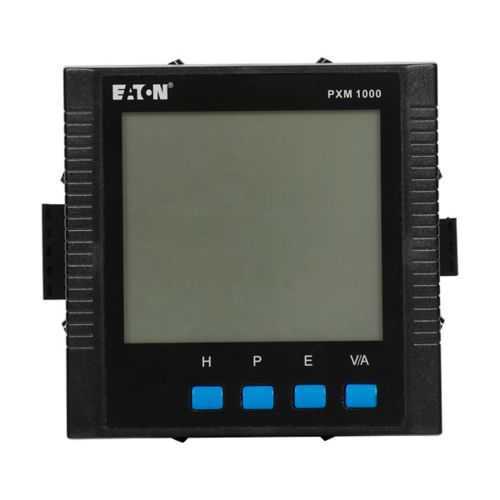

PXM1000MB4R-1 Eaton: PXM 1000 power and energy meter, Ring terminal, LCD display, Frequency range 45-65Hz,, Works exclusively with PXM 1000 Rogowski Coil CTs, Power supply 20-60Vdc, Built-in RS485 port with Modbus-RTU and DNP3.0 protocol
Product Name
Eaton Power Xpert meter 1000
Catalog Number
PXM1000MB4R-1
UPC
786689771881
Product Length/Depth
4 in
Product Height
4 in
Product Width
2.5 in
Product Weight
1 lb
Compliances
Contact Manufacturer CE Marked
Certifications
UL Recognized
Power Xpert Meters
Power Xpert Meters
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1000MB4R-1
Feature: Rogowski Coil CT compatibility enables accurate current measurement without bulky hardware. Business impact: reduces panel footprint and installation time while preserving measurement accuracy for high-current loads. Application: retrofit or new-build electrical distribution where space is at a premium and CTs are already in use. The meter’s compatibility with PXM 1000 Rogowski Coil CTs simplifies upgrade paths and ensures consistent data across devices. Feature: 20-60Vdc power supply provides flexible installation options. Business impact: simplifies wiring in spaces with limited AC distribution, improving reliability and reducing wiring costs. Application: panel-mounted metering in industrial facilities and switchgear rooms where DC supply is available. Feature: Built-in RS485 port with Modbus-RTU and DNP3.0 supports open integration. Business impact: accelerates EMS and SCADA integration, enabling centralized energy monitoring and automated reporting. Application: building automation and plant-wide energy dashboards with standardized protocols. Feature: LCD display and user-friendly interface reduce field service time. Business impact: faster commissioning and troubleshooting, lowering maintenance labor. Application: on-site diagnostics and status checks during commissioning or audits. Feature: Compact dimensions and ring-terminal wiring simplify installation. Business impact: minimizes panel interference and wiring complexity, cutting installation time and risk. Application: confined electrical panels in manufacturing lines and data centers. Certification and compliance: UL Recognized and CE Marked provide regulatory assurance for electrical safety and performance. Business impact: supports procurement approvals, audits, and compliance in regulated environments. Application: healthcare, food and beverage, and industrial facilities requiring certified metering.
Get a Quick Quote for a Eaton PXM1000MB4R-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1000MB4R-1?
Enquire Now
FAQs
The PXM1000MB4R-1 is designed to pair with PXM 1000 Rogowski Coil CTs for high-current measurement without bulky transformers. Install the CTs around the conductor, connect the ring-terminal wiring to the meter's power input (20-60 Vdc) and RS485 port for Modbus-RTU/DNP3.0 communications, then use the LCD display for quick verification during commissioning. The compact form factor simplifies panel mounting and wiring in tight spaces.
Key specs include 45-65 Hz operation, 20-60 Vdc power supply, RS485 port with Modbus-RTU and DNP3.0 protocols, and compatibility with PXM 1000 Rogowski Coil CTs. The meter weighs 1 lb and measures 4 in x 4 in x 2.5 in, with an LCD display for local readings. These ensure reliable data for EMS and SCADA integrations.
Yes. The PXM1000MB4R-1 is designed for industrial and commercial energy monitoring, featuring RS485 communications for EMS/SCADA, Rogowski CT compatibility for high-current circuits, and UL CE certifications to support regulated environments. It provides accurate energy data essential for efficiency projects and demand management.
The meter is UL Recognized and CE Marked, indicating compliance with safety and performance standards recognized in North America and the EU. These certifications support regulatory approvals, audits, and procurement in industries with strict safety requirements, reducing risk and enabling smoother project approvals.
The meter reduces maintenance needs through solid-state electronics, provides improved data quality for energy accounting, and simplifies integration with EMS via Modbus-RTU and DNP3.0. Combined with Rogowski CT compatibility, it accelerates commissioning, lowers wiring complexity, and supports ongoing energy optimization initiatives in facilities.
