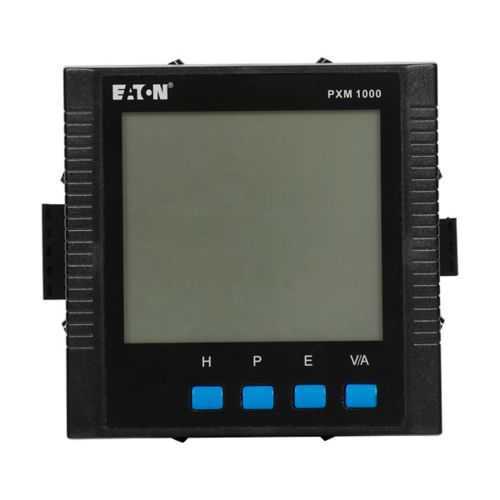

Eaton PXM1000TA14 Power Xpert Meter - UL Recognized
Part Number: PXM1000TA14
Quick Summary
Power Xpert meter 1000 provides precise electrical metering for industrial power management in panel builds and data centers. Engineers often struggle with compact installs and flexible input options in tight control panels. This unit is CE marked and UL Recognized, and it supports 400 Hz operation to fit aerospace and manufacturing environments. Designed for industrial metering and RS485 Modbus-RTU and DNP3.0 connectivity, it streamlines configuration and reduces wiring costs, while offering reliable measurement and easy integration with existing BMS and SCADA systems. The meter’s DIN-rail mounting and no-display design simplify installation, while the selectable current input and wide voltage range accommodate a variety of power architectures, delivering consistent data for energy management initiatives.
Product Information
Extended Description
PXM1000TA14 Eaton: Eaton Power Xpert meter 1000, Din-rail mount transducer no display, Frequency 400Hz, Selectable current input 1A or 5A, Power supply 100-415Vac or 100-300Vdc, RS485 port with Modbus-RTU and DNP3.0
Product Name
Eaton Power Xpert meter 1000
Catalog Number
PXM1000TA14
UPC
786687034124
Product Length/Depth
4 in
Product Height
4 in
Product Width
2.5 in
Product Weight
1 lb
Warranty
1 year
Compliances
CE Marked
Certifications
UL Recognized
Type
Meter
Voltage rating
100-415 Vac, 100-300 Vdc
Power Systems Experience Center Tour – Metering Focus
Power Systems Experience Center Tour – Metering Focus
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1000TA14
Feature: DIN-rail mounting and no-display design. Benefit: saves panel space and reduces wiring complexity, enabling quick retrofits in crowded control cabinets. Application: ideal for compact industrial panels where visibility is provided through software and SCADA dashboards. Feature: Wide voltage range 100-415 Vac or 100-300 Vdc. Benefit: supports diverse plant power sources without multiple meters, lowering inventory and installation time. Application: data centers, manufacturing lines, and hybrid power architectures. Feature: Selectable current input of 1A or 5A. Benefit: accommodates primary/secondary metering options and reduces the need for external CTs in many setups. Application: motor drives, conveyors, and machine groups. Feature: RS485 port with Modbus-RTU and DNP3.0. Benefit: seamless integration with existing SCADA/BMS systems and remote monitoring capabilities. Application: control panels and energy management networks. Feature: 400 Hz operation. Benefit: enables use in aerospace and high-speed equipment environments where precise metering is critical. Application: avionics racks, turbine test stands, and specialized manufacturing lines. Feature: Power Xpert Meter 1000 software version 3.7.3. Benefit: accelerates commissioning, simplifies configuration, and enables ongoing diagnostics without on-site hardware changes. Application: engineering and maintenance workflows across plants.
Get a Quick Quote for a Eaton PXM1000TA14
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1000TA14?
Enquire Now
FAQs
To install the PXM1000TA14 you need a standard DIN-rail mounting space and a power supply within the 100-415 Vac or 100-300 Vdc range. The device uses a selectable 1A or 5A input and an RS485 port supporting Modbus-RTU and DNP3.0 for communication. As there is no local display, you will configure and monitor the meter via Power Xpert Meter 1000 software (v3.7.3) and your SCADA/BMS system, enabling remote diagnostics and faster commissioning.
Key specs include voltage rating 100-415 Vac or 100-300 Vdc, selectable current input 1A or 5A, and 400 Hz operation. The meter is DIN-rail mounted with a compact 4 x 4 x 2.5 inch footprint and a weight of about 1 lb. It features RS485 communications (Modbus-RTU and DNP3.0) and comes with Eaton software for configuration and monitoring.
Yes. Its wide voltage range, flexible current input, and RS485 communication capabilities make it ideal for data centers and manufacturing environments. The 400 Hz capability and protocol support (Modbus-RTU, DNP3.0) ensure reliable integration with common BMS/SCADA systems, while the compact DIN-rail form factor supports dense panel layouts.
The PXM1000TA14 is CE Marked and UL Recognized, signaling compliance with international safety and performance standards. This helps support global deployments, simplifies supplier qualification, and reduces certification lead times for projects in regulated industries.
Eaton provides Power Xpert Meter 1000 software version 3.7.3 for configuration, monitoring, and diagnostics. Using the software accelerates commissioning, enables remote troubleshooting, and supports ongoing energy management initiatives, which can shorten project timelines and lower total cost of ownership over the meter’s lifecycle.
