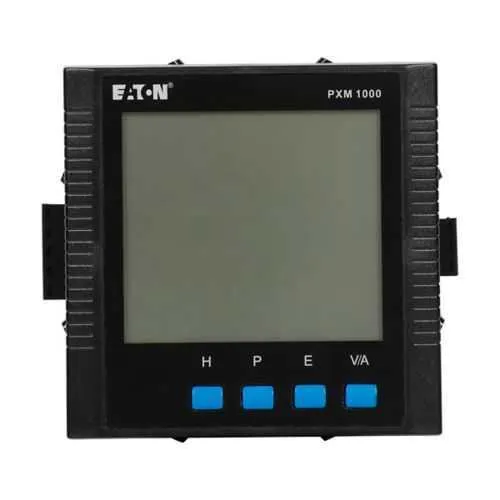

Eaton PXM1000TA44 Power Meter - UL Recognized
Part Number: PXM1000TA44
Quick Summary
Eaton Power Xpert meter 1000 monitors electrical parameters for industrial panels. Users often struggle with integrating meters into compact control enclosures without sacrificing visibility or data access. With CE Marked and UL Recognized certifications, plus 400 Hz capability and selectable 1 A or 5 A inputs, it fits demanding environments. This device enhances energy visibility and panel-level analytics, while compatible with Modbus RTU, DNP3.0, and Eaton software ecosystems to drive efficiency and cost savings for industrial automation and energy management initiatives.
Product Information
Extended Description
PXM1000TA44 Eaton: Eaton Power Xpert meter 1000, Din-rail mount transducer no display, Frequency 400Hz, Selectable current input 1A or 5A, Power supply 20-60Vdc, RS485 port with Modbus-RTU and DNP3.0
Product Name
Eaton Power Xpert meter 1000
Catalog Number
PXM1000TA44
UPC
786687034131
Product Length/Depth
4 in
Product Height
4 in
Product Width
2.5 in
Product Weight
1 lb
Warranty
1 year
Compliances
CE Marked
Certifications
UL Recognized
Type
Meter
Voltage rating
20-60 Vdc
Power Systems Experience Center Tour – Metering Focus
Power Systems Experience Center Tour – Metering Focus
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1000TA44
DIN-rail mounted, no-display design reduces panel clutter and simplifies retrofits, delivering faster installation and fewer wiring errors. This directly improves serviceability and reliability in busy control rooms, enabling quick integration with existing automation networks for factory floors and data centers. Selectable current input of 1 A or 5 A provides flexible sensing across a range of loads without exchanging hardware, cutting spare parts and maintenance costs while maintaining accurate monitoring for power quality and load profiling. A 20-60 Vdc power supply supports common industrial DC rails, ensuring stable operation in mixed energy environments and reducing the need for additional power converters in control cabinets. The RS485 interface with Modbus-RTU and DNP3.0 enables seamless data exchange with SCADA, MES, and Power Xpert software, facilitating centralized energy dashboards and real-time decision making. The 400 Hz capability makes it suitable for aviation, defense, and high-frequency power systems, expanding application scope without compromising accuracy or speed. CE Marked and UL Recognized certifications provide regulatory assurance and supplier confidence, while a compact 4x4x2.5 in footprint and 1 lb weight simplify mounting in tight spaces and streamline panel integration for cost-sensitive projects.
Get a Quick Quote for a Eaton PXM1000TA44
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1000TA44?
Enquire Now
FAQs
Install the PXM1000TA44 on a DIN rail inside a compact enclosure. Connect the DC supply to the 20-60 Vdc input and choose the 1 A or 5 A current input as required by your load. Use the RS485 port for Modbus-RTU or DNP3.0 communication to your SCADA or energy management system. The unit has no local display, so plan for a remote display or software-based monitoring.
Key specs include a voltage rating of 20-60 Vdc, selectable current input of 1 A or 5 A, and 400 Hz operation. It provides RS485 communication with Modbus-RTU and DNP3.0, and a compact 4x4 inch footprint weighing 1 lb. The device is CE Marked and UL Recognized for regulatory compliance and reliability in industrial settings.
Yes. The meter includes an RS485 port that supports both Modbus-RTU and DNP3.0, enabling straightforward integration with existing SCADA, DCS, and energy dashboards. It is designed to work with Power Xpert software and other Eaton ecosystem tools, providing centralized data collection and improved visibility across the plant.
The PXM1000TA44 carries CE Marking and UL Recognized certification, which support regulatory compliance and reliability in diverse industrial environments. This helps reduce procurement risk for regulated industries and simplifies supplier audits while ensuring safe operation within standard electrical panels.
Expect improved energy visibility and faster fault isolation due to remote data access via Modbus-RTU and DNP3.0, reducing downtime and enabling data-driven optimization. The no-display design lowers panel space usage and maintenance effort, while flexible 1 A/5 A inputs and 20-60 Vdc supply streamline installation across multiple lines, delivering cost savings over time.
