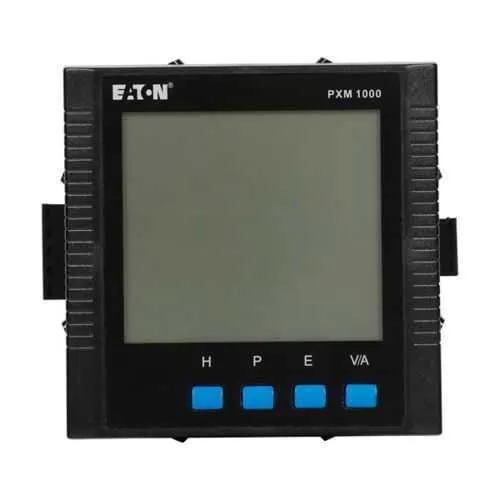

Eaton PXM1000TA44-1 Power Xpert Meter 1000 - UL Recognized
Part Number: PXM1000TA44-1
Quick Summary
Power Xpert meter 1000 by Eaton precisely measures electrical parameters for industrial facilities and data centers. Engineers often contend with incomplete data, slow integration, and difficult field setups that delay projects. This device carries CE Marked compliance, UL Recognized certification, plus robust 20-60 Vdc power and 400 Hz compatibility to fit diverse environments. Its DIN-rail mounting and RS485 communications simplify deployment and ongoing monitoring, while 1 A or 5 A input options reduce wiring complexity. With Eaton's Power Xpert Meter 1000, you gain reliable visibility and faster energy management workflows.
Product Information
Extended Description
PXM1000TA44-1 Eaton: Eaton Power Xpert meter 1000, Ring terminal, Din-rail mount transducer no display, Frequency 400Hz, Selectable current input 1A or 5A, Power supply 20-60Vdc, RS485 port with Modbus-RTU and DNP3.0
Product Name
Eaton Power Xpert meter 1000
Catalog Number
PXM1000TA44-1
UPC
786687034018
Product Length/Depth
4 in
Product Height
4 in
Product Width
2.5 in
Product Weight
1 lb
Warranty
1 year
Compliances
CE Marked
Certifications
UL Recognized
Type
Meter
Voltage rating
20-60 Vdc
Power Xpert Meters
Power Xpert Meters
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1000TA44-1
The PXM1000TA44-1 is a compact DIN-rail mounted power meter designed for easy integration into low-voltage panels, delivering precise energy data without consuming valuable cabinet space. The 20-60 Vdc power supply supports common industrial DC rails, simplifying installation and reducing the need for additional power converters. By offering selectable current input of 1 A or 5 A, it accommodates existing sensing schemes and minimizes wiring changes during retrofits. The device operates in 400 Hz environments, expanding usability into specialized sectors such as avionics or defense where applicable. An RS485 interface with Modbus-RTU and DNP3.0 enables seamless EMS/SCADA integration, lowering commissioning time and improving data interoperability with existing energy dashboards. CE Marked and UL Recognized, it provides regulatory confidence and safer supplier qualification across multi-site deployments, while the DIN-rail mount and ring terminal connection streamline field installation and maintenance. Overall, this meter supports faster project timelines, reduced wiring complexity, and robust compliance for energy management programs.
Get a Quick Quote for a Eaton PXM1000TA44-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1000TA44-1?
Enquire Now
FAQs
Begin by locating a suitable DIN-rail enclosure with enough clearance for the 4 x 4 x 2.5 inch footprint. Attach the meter to the DIN rail using the ring terminal connection for secure grounding. Connect the RS485 port to your EMS/SCADA network using Modbus-RTU or DNP3.0, ensuring the 20-60 Vdc power supply is steady and within tolerance. Verify polarity and confirm field wiring adheres to local codes before powering up. The device’s selectable 1 A or 5 A input reduces wiring changes when retrofitting legacy panels, accelerating commissioning and enabling quick fault isolation if needed.
The meter operates on 20-60 Vdc with a 400 Hz frequency range. It offers selectable current input options of 1 A or 5 A to match existing sensor configurations, and includes a 20-60 Vdc power supply for integrated operation. Its RS485 interface supports Modbus-RTU and DNP3.0, enabling interoperable communication with EMS and SCADA systems. This combination delivers flexible installation and reliable data collection across diverse power networks.
Yes, the device is specified for 400 Hz operation, making it suitable for applications that require higher frequency monitoring such as certain aerospace, defense, or specialized industrial systems. In practice, it is deployed in low-voltage distribution panels within manufacturing facilities, data centers, and control cabinets where precise energy monitoring, logging, and integration with Modbus/ DNP3-based EMS are required.
The PXM1000TA44-1 carries CE Marked compliance for European safety and regulatory alignment and UL Recognized certification for component suitability in electrical assemblies. These certifications help streamline supplier qualification, support regulatory adherence in multi-site deployments, and contribute to overall risk reduction in energy monitoring projects.
The meter delivers improved visibility into energy usage, enabling targeted conservation and efficiency initiatives that reduce energy costs. Quick DIN-rail installation and straightforward RS485 integration cut commissioning time. With a 1-year warranty and robust compliance, ongoing maintenance is minimal, primarily involving periodic firmware checks and ensuring secure communications with EMS/SCADA, which helps sustain long-term monitoring reliability and favorable total cost of ownership.
