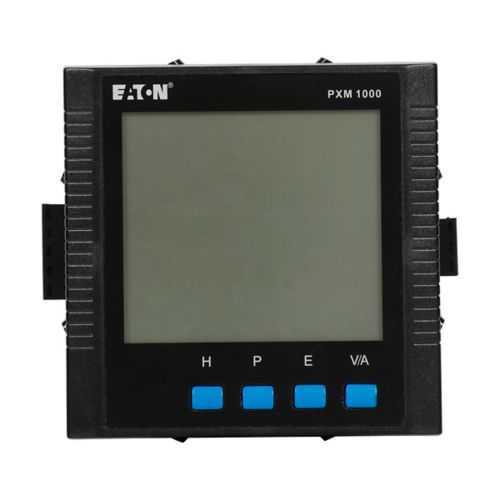

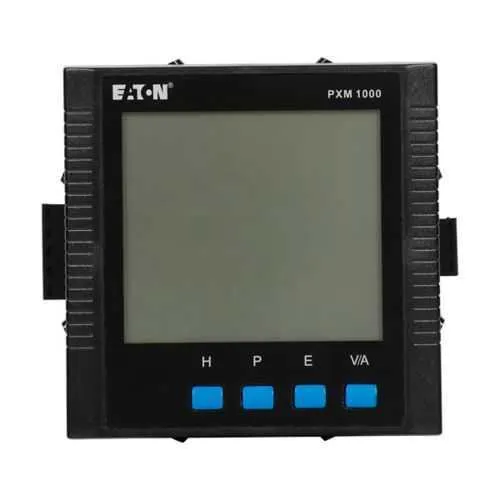

Eaton PXM1000TB1R Power Xpert meter 1000 - UL Recognized
Part Number: PXM1000TB1R
Quick Summary
Power Xpert meter 1000 is a multifunction power and energy meter designed for industrial control panels and electrical distribution applications. It addresses the common challenge of limited visibility and fragmented energy data by providing integrated metering that works with Rogowski Coil CTs and standard communication protocols. UL Recognized and CE marked certifications support global compliance while the compact DIN-rail form factor simplifies panel installation. With a flexible power input range and native RS485 communication, it delivers reliable energy measurement with minimal wiring and downtime, helping engineers optimize energy usage and improve protection coordination. This solution pairs well with Rogowski CTs for scalable monitoring and robust data in factory and utility environments.
Product Information
Extended Description
PXM1000TB1R Eaton: PXM 1000 multifunction power and energy meter,Din-rail mount transducer w/o display,45-65 Hz,,Work exclusively with PXM 1000 Rogowski Coil CTs, Power supply 100-415Vac or 100-300Vdc, Built-in RS485 port with Modbus-RTU and DNP3.0 protocol.
Product Name
Eaton Power Xpert meter 1000
Catalog Number
PXM1000TB1R
UPC
786689772031
Product Length/Depth
4 in
Product Height
4 in
Product Width
2.5 in
Product Weight
1 lb
Compliances
Contact Manufacturer CE Marked
Certifications
UL Recognized
Power Systems Experience Center Tour – Metering Focus
Power Systems Experience Center Tour – Metering Focus
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1000TB1R
Feature: DIN-rail mounted form factor and compact 4 x 4 x 2.5 inch footprint. Benefit: saves panel space and simplifies retrofit projects, enabling quick deployment in existing cabinets. Application: control panels in manufacturing lines and building automation where space is at a premium. Feature: Works exclusively with PXM 1000 Rogowski Coil CTs. Benefit: high-accuracy, scalable current measurement with reduced wiring complexity. Application: energy monitoring across motor drives and power:dist panels. Feature: Dual power input options 100-415Vac or 100-300Vdc. Benefit: versatile installation across voltages and systems, lowering power conversion concerns. Application: mixed-technology facilities and project sites with varied supply rails. Feature: Built-in RS485 with Modbus-RTU and DNP3.0. Benefit: seamless integration into existing SCADA/Energy Management systems, improving data visibility and control. Application: industrial automation networks needing standardized protocols. Feature: 45-65 Hz operating range. Benefit: supports diverse regional power systems, reducing compatibility risk. Application: global deployment in utilities and manufacturing. Feature: UL Recognized and CE Marked. Benefit: formal compliance and risk reduction, enabling broader market access. Application: certified installations across North America and Europe.
Get a Quick Quote for a Eaton PXM1000TB1R
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1000TB1R?
Enquire Now
FAQs
This meter is designed for DIN-rail mounting with a compact 4 x 4 x 2.5 inch footprint and a weight of 1 lb. Start by verifying rail alignment and securing the device to the DIN rail with the included mounting clip. Connect the supply within the 100-415Vac or 100-300Vdc range, then wire the RS485 Modbus-RTU and optional DNP3.0 line. Finally, attach the Rogowski Coil CTs for current measurement and configure the device in your SCADA or energy management system. The result is a fast, reliable installation with minimal panel disruption.
The PXM1000TB1R includes a built-in RS485 port that supports Modbus-RTU and DNP3.0, enabling straightforward integration with common SCADA and energy management platforms. This reduces wiring complexity and data interpretation time while delivering harmonized metering data for voltage, current, and energy usage. Ensure correct addressing and baud rate settings on both the meter and the host system to maximize polling efficiency and reliability.
Yes. The device is UL Recognized and CE Marked, reflecting cross-regional compliance for safety and electrical performance. These certifications support use in North American and European markets, helping procurement teams meet regulatory requirements and reduce traceability concerns during audits. Always verify local electrical codes and panel requirements when integrating metering into distributed energy systems.
The PXM1000TB1R measures 4 inches in length, 4 inches in height, and 2.5 inches in width, with a weight of approximately 1 pound. These compact dimensions simplify panel layout and reduce heat density compared with larger metering solutions. When wiring, plan for secure termination at the RS485 connection and room for Rogowski CT routing to maintain safe clearance and serviceability.
The meter is designed to work exclusively with PXM 1000 Rogowski Coil CTs, delivering high-precision current measurement without the need for conventional CT windings. This reduces installation time, minimizes thermal emissions, and improves safety by keeping high-energy conductors distant from the metering electronics. The combination enhances accuracy across broad current ranges and supports scalable energy monitoring across motor drives and feeders.
