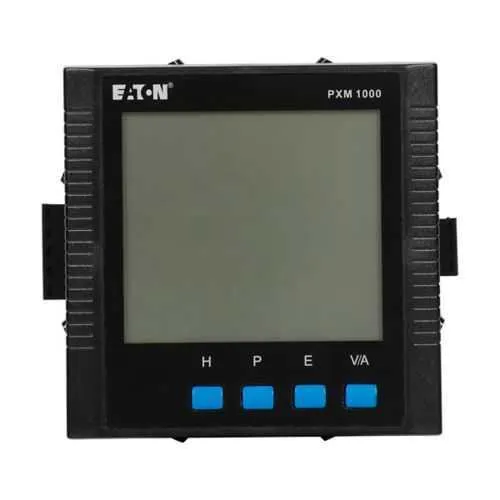

Eaton PXM1000TB1R-1 Power Xpert Meter 1000 - UL Recognized
Part Number: PXM1000TB1R-1
Quick Summary
The Eaton Power Xpert meter 1000 is a high-accuracy energy meter designed for industrial power monitoring and efficiency optimization. Engineers often face meters that complicate integration with Rogowski coil CTs and that struggle to provide reliable Modbus-RTU or DNP3.0 communication in demanding environments. With UL Recognized and CE Marked compliance, this meter also supports RS485 networking and DIN-rail mounting, ensuring regulatory alignment and easy installation. The PXM1000TB1R-1 integrates seamlessly into the Eaton Power Xpert ecosystem, delivering crisp energy data and scalable monitoring. Its compact 4x4x2.5 in form factor and ring-terminal connection simplify retrofit projects while reducing panel space and wiring costs.
Product Information
Extended Description
PXM1000TB1R-1 Eaton: PXM 1000power energy meter, Ring terminal, Din-rail mount transducer w/o display, 45-65 Hz,, Work exclusively with PXM 1000 Rogowski Coil CTs, Power supply 100-415Vac or 100-300Vdc, Built-in RS485 port with Modbus-RTU and DNP3.0 protocol
Product Name
Eaton Power Xpert meter 1000
Catalog Number
PXM1000TB1R-1
UPC
786689772048
Product Length/Depth
4 in
Product Height
4 in
Product Width
2.5 in
Product Weight
1 lb
Compliances
Contact Manufacturer CE Marked
Certifications
UL Recognized
Power Systems Experience Center Tour – Metering Focus
Power Systems Experience Center Tour – Metering Focus
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1000TB1R-1
Feature: Ring-terminal connection and DIN-rail mount transducer w/o display. Business Impact: Simplifies panel installation, reduces wiring errors, and speeds field retrofits, lowering labor costs on new builds and upgrades. Application: Ideal for control panels in manufacturing and process environments where quick termination and secure mounting are essential. Long-tail keywords: ring-terminal, DIN-rail mounting, energy meter installation. Feature: Compatibility with PXM1000 Rogowski Coil CTs. Business Impact: Delivers accurate non-contact current measurement in tight spaces and high-current circuits, improving measurement reliability. Application: Power monitoring on crowded switchgear and confined enclosures. Long-tail keywords: Rogowski Coil CTs, non-contact current measurement. Feature: Wide power supply range 100-415Vac or 100-300Vdc. Business Impact: Flexible deployment across multiple plant voltages, enabling standardized metering without rewiring. Application: Retrofit projects and multi-site installations. Long-tail keywords: universal input power, industrial voltage ranges. Feature: Built-in RS485 port with Modbus-RTU and DNP3.0. Business Impact: Enables seamless integration with SCADA, energy management, and monitoring systems, reducing external interface costs. Application: centralized energy analytics and remote device management. Long-tail keywords: RS485, Modbus-RTU, DNP3.0, SCADA integration. Feature: Compliance and ecosystem readiness. Business Impact: CE Marked and UL Recognized certification provide procurement confidence and regulatory alignment, supporting audits and supplier qualification. Application: Enterprise-wide compliance for industrial facilities. Long-tail keywords: CE Marked, UL Recognized, regulatory compliance.
Get a Quick Quote for a Eaton PXM1000TB1R-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1000TB1R-1?
Enquire Now
FAQs
Install the PXM1000TB1R-1 on a standard DIN rail and connect the Rogowski Coil CTs as per the CT datasheet. Use the ring-terminal connections for secure, low-resistance terminations and ensure the meter shares a common ground with the control system. The w/o-display configuration keeps wiring minimal while delivering accurate measurements to the RS485 port.
The meter provides a built-in RS485 port supporting Modbus-RTU and DNP3.0. Configuration is performed through the existing Eaton software tools or compatible SCADA systems. This enables straightforward integration into energy management workflows and remote monitoring without additional gateways.
Yes. The device is CE Marked for compliance with European regulatory requirements and UL Recognized for enhanced safety certification. This combination supports procurement across regional plants and simplifies supplier qualification, reducing compliance risk in audits.
The meter is designed in a compact 4 in x 4 in x 2.5 in footprint, weighing about 1 lb. It uses DIN-rail mounting and ring-terminal connections, facilitating quick installation in existing panels and minimizing space requirements in dense electrical rooms.
By delivering real-time energy data and reliable communications, the PXM1000TB1R-1 improves energy visibility, enables demand-response strategies, and supports regulatory reporting. The result is lower energy costs, faster commissioning, and a clear ROI through reduced wiring complexity and streamlined integration with SCADA systems.
