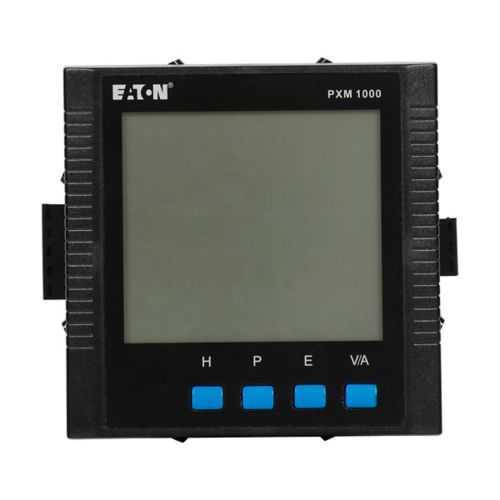

Eaton PXM1000TB41-1 Power Xpert meter 1000 - UL Recognized
Part Number: PXM1000TB41-1
Quick Summary
Power Xpert meter 1000 by Eaton provides real-time power and energy monitoring for industrial electrical panels. Many facilities struggle with energy waste and lack of visibility across critical loads. This device is CE marked and UL Recognized, delivering compliance and reliability for harsh industrial environments. Designed for energy management and data logging, it integrates via RS485 with Modbus-RTU and DNP3.0. Its DIN-rail form factor supports scalable deployments across multiple panels, reducing wiring complexity and maintenance costs. Engineers gain actionable insights from built-in measurement data, enabling faster fault detection and energy optimization across plant operations. With quick-start software and familiar communication protocols, deployment is faster and ROI begins sooner.
Product Information
Extended Description
PXM1000TB41-1 Eaton: PXM 1000 power and energy meter, Ring terminal, Din-rail mount transducer without display,, Frequency range 45-65Hz, Nominal current input 1A, Power supply 20-60Vdc, Built-in RS485 port with Modbus-RTU and DNP3.0 protocol
Product Name
Eaton Power Xpert meter 1000
Catalog Number
PXM1000TB41-1
UPC
786689770969
Product Length/Depth
4 in
Product Height
4 in
Product Width
2.5 in
Product Weight
1 lb
Compliances
Contact Manufacturer CE Marked
Certifications
UL Recognized
Power Xpert Meters
Power Xpert Meters
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1000TB41-1
Feature: Built-in RS485 port with Modbus-RTU and DNP3.0. Business Impact: Enables seamless integration with PLCs, SCADA, and energy management systems, reducing external gateway needs and data latency. Application: Direct connection to energy dashboards and control systems for real-time monitoring and reporting. Feature: Nominal current input of 1 A. Business Impact: Allows direct measurement of low-current circuits without external transducers, lowering hardware costs and simplifying wiring. Application: Monitoring of control circuits and auxiliary loads where precision at small currents is essential. Feature: Wide power supply range 20–60 Vdc. Business Impact: Flexible installation across diverse cabinets and retrofits, minimizing power-routing logistics. Application: Retrofit into existing panels and locations with varying DC supply rails. Feature: DIN-rail mounting with ring-terminal connections. Business Impact: Fast, tool-free installation in crowded panels, reducing commissioning time and field errors. Application: Industrial control panels and compact switchgear environments. Feature: Frequency range 45–65 Hz. Business Impact: Global compatibility with both 50 Hz and 60 Hz networks, simplifying cross-border deployments. Application: International installations and mixed-grid facilities. Feature: Compact form factor and weight (4 in L, 4 in H, 2.5 in W, 1 lb). Business Impact: Fits tight panel spaces and supports multi-unit deployments without crowding. Application: Scalable energy-monitoring architectures across multiple panels. Feature: Certifications CE Marked and UL Recognized. Business Impact: Procurement approval and regulatory compliance across regions, reducing qualification cycles. Application: Safe deployment in regulated facilities with strict safety standards. Feature: Software availability (Power Xpert Meter 1000 software v3.7.3). Business Impact: Simplified software updates and feature enhancements, preserving data fidelity over time. Application: Ongoing maintenance, configuration, and data management for energy programs.
Get a Quick Quote for a Eaton PXM1000TB41-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1000TB41-1?
Enquire Now
FAQs
The PXM1000TB41-1 is designed for DIN-rail mounting with a compact 4 x 4 x 2.5 inch footprint and a 1 lb weight. It uses ring-terminal connections for power and accepts a 20–60 Vdc supply, simplifying retrofit into crowded electrical cabinets and reducing wiring complexity for faster, error-free installations.
The meter includes a built-in RS485 port that supports Modbus-RTU and DNP3.0, enabling direct interoperability with PLCs, SCADA, and energy-management systems. This eliminates the need for external gateways and helps maintain data integrity with low-latency data acquisition.
Yes. It operates over a frequency range of 45–65 Hz, covering both 50 Hz and 60 Hz networks. This makes it versatile for global installations, local grid variations, and mixed-frequency facilities, while its 1 A input supports accurate monitoring of low-current circuits.
The device carries CE marking and UL Recognized certification, ensuring compliance with European safety requirements and North American safety standards. These certifications support procurement approvals and streamline regulatory qualification for panel installations worldwide.
Real-time energy data enables quick identification of losses and verification of energy invoices, reducing waste. Direct RS485 communication minimizes custom software needs and accelerates commissioning, which shortens project timelines and lowers ongoing maintenance costs over the meter’s lifecycle.
