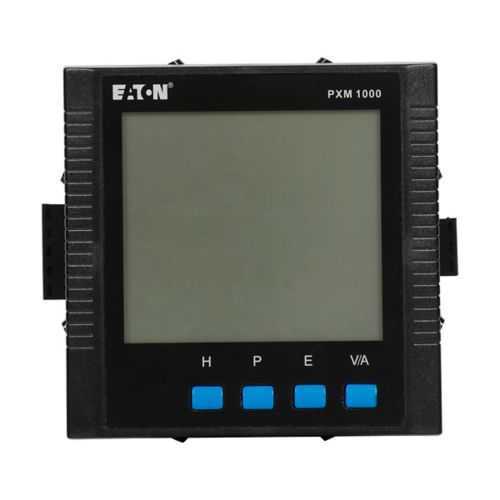

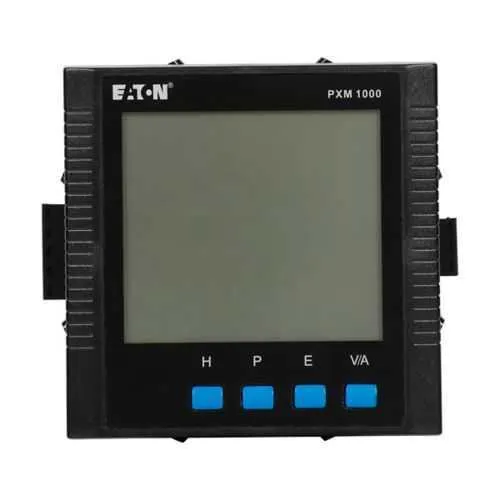

Eaton PXM1000TB45-1 Power Xpert Meter 1000 - UL Recognized
Part Number: PXM1000TB45-1
Quick Summary
Power Xpert meter 1000 from Eaton provides precise energy measurement and monitoring for industrial electrical panels and automation systems. Engineers frequently face data gaps and slow commissioning when meters lack modern communications, which stalls energy management initiatives. UL Recognized and CE Marked certifications support safety and regulatory compliance, while the DIN-rail mounting and ring-terminal connections simplify installation in crowded panels. This meter also offers built-in RS485 with Modbus-RTU and DNP3.0, easing integration with existing SCADA and energy-management software. By delivering clear, shareable energy data, it helps businesses improve efficiency, meet reporting requirements, and justify ROI across manufacturing or facility operations.
Product Information
Extended Description
PXM1000TB45-1 Eaton: PXM 1000 power and energy meter, Ring terminal, Din-rail mount transducer without display,, Frequency range 45-65Hz, Nominal current input 5A, Power supply 20-60Vdc, Built-in RS485 port with Modbus-RTU and DNP3.0 protocol
Product Name
Eaton Power Xpert meter 1000
Catalog Number
PXM1000TB45-1
UPC
786689771041
Product Length/Depth
4 in
Product Height
4 in
Product Width
2.5 in
Product Weight
1 lb
Compliances
Contact Manufacturer CE Marked
Certifications
UL Recognized
Power Xpert Meters
Power Xpert Meters
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1000TB45-1
Din-rail mount with ring-terminal wiring reduces cabinet space and wiring complexity, enabling faster installation and fewer field issues. This translates to shorter commissioning windows and lower labor costs on new builds or retrofits in manufacturing lines, data centers, or power distribution panels. Built-in RS485 with Modbus-RTU and DNP3.0 supports direct integration with common PLCs, energy management software, and SCADA systems, eliminating the need for external gateways and reducing data latency. Applications include real-time energy monitoring for line optimization and outage analysis. Nominal current input of 5A and a 20-60Vdc power supply provide flexible field wiring and safe operation across diverse facilities. The meter's compatibility with Ring-terminal connections also simplifies field installation in crowded panels and on DIN-rail mounting rails. Frequency range of 45-65Hz makes it suitable for both standard 50/60 Hz systems and regional variants, enabling cross-border deployments without multiple SKUs. The compact footprint minimizes panel intrusion, benefiting retrofits and upgrade projects. Compliances and UL Recognized certification together with CE Marking bolster procurement confidence and compliance readiness during audits. The built-in data interface supports energy accounting, regulatory reporting, and ROI-driven programs across industrial environments.
Get a Quick Quote for a Eaton PXM1000TB45-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1000TB45-1?
Enquire Now
FAQs
The device is designed for DIN-rail mounting with ring-terminal wiring, delivering a compact, tidy panel footprint and straightforward wiring. This enables fast installation and minimizes panel disruption, particularly valuable during upgrades or new equipment integration in production lines and control cabinets.
The PXM1000TB45-1 includes a built-in RS485 port that natively supports Modbus-RTU and DNP3.0. This simplifies direct communication with common PLCs, SCADA systems, and energy-management software, reducing setup time and avoiding additional gateway hardware.
Yes. It operates over a 45-65 Hz frequency range and has a nominal current input of 5A, making it compatible with many regional power networks. The combination supports flexible installation in diverse environments without compromising measurement accuracy.
The meter carries UL Recognized certification and CE Marking, which supports safety and regulatory compliance in North America and Europe. These certifications help streamline supplier qualification, audits, and cross-border deployments.
By delivering accurate energy data and interoperable communication interfaces, the meter enables real-time monitoring, trend analysis, and regulatory reporting. This drives energy-cost reductions, improved asset utilization, and faster decision-making across manufacturing, facilities, and data-center environments.
