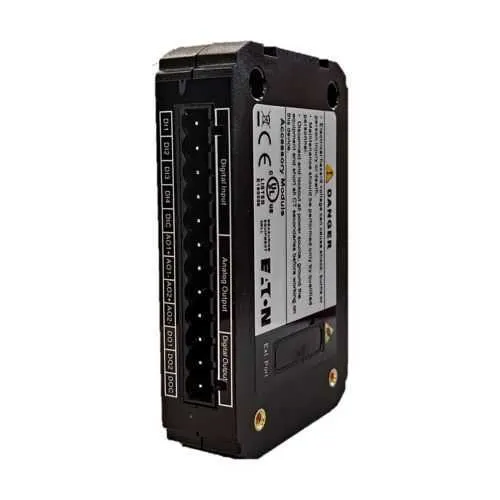

Eaton PXM1K-212 Power Xpert IO Module - 60 Hz
Part Number: PXM1K-212
Quick Summary
PXM1K-212 is an Eaton Power Xpert meter I/O module used to expand monitoring for Power Xpert Meter 1000 systems. Facilities struggle with visibility into real-time I/O data and swift fault isolation. No explicit certifications are listed; verify CE, SIL, and IP ratings with the manufacturer for your region. Its 60 Hz electrical design and compact footprint simplify field upgrades and minimize panel disruption. By enabling precise input/output expansion, it supports energy management, fault diagnostics, and data-driven maintenance programs. For integrators, its 3.5 in length, 1 in height, and 2.25 in width ensure straightforward mounting in crowded control cabinets.
Product Information
Extended Description
PXM1K-212 Eaton: Eaton Power Xpert meter 1000 I/O Module Logic Address 1; 4 DI, 2 DO, 2 AO (1-5V)
Product Name
Eaton Power Xpert meter 1000 I/O module
Catalog Number
PXM1K-212
UPC
786680173707
Product Length/Depth
3.5 in
Product Height
1 in
Product Width
2.25 in
Product Weight
0.25 lb
Warranty
1 year
Compliances
Contact Manufacturer
Type
I/O Module
Frequency rating
60 Hz
Power Xpert Meters
Power Xpert Meters
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1K-212
Feature: 4 DI, 2 DO, 2 AO (1-5V) I/O mix. Business Impact: Enables expanded sensing and control close to equipment, reducing wiring complexity and delivering richer data for diagnostics. Application: Panel-level energy monitoring and machine automation in Power Xpert ecosystems. Long-tail keywords: Power Xpert meter 1000, I/O module, real-time I/O data. Feature: Compact footprint (3.5 in L × 2.25 in W × 1 in H) and 0.25 lb weight. Business Impact: Eases installation in crowded cabinets and supports retrofits without major enclosure changes. Application: Retrofit projects and space-constrained control panels. Long-tail keywords: compact I/O module, panel mounting, installation advantages. Feature: Frequency rating 60 Hz. Business Impact: Ensures compatibility with standard North American and other 60 Hz power systems, reducing integration risk. Application: Industrial automation settings with routine 60 Hz grids. Long-tail keywords: 60 Hz I/O compatibility, power distribution, NA electrical standards. Feature: Warranty 1 year and documented compliances guidance. Business Impact: Lowers procurement risk and provides supported maintenance pathways; verify regional certifications with the manufacturer. Application: Compliance planning for plant equipment and asset management. Long-tail keywords: device warranty, regulatory verification, supplier guidance. Feature: Compatibility with Power Xpert Meter 1000. Business Impact: Streamlines integration, minimizes disruption during expansion, and enables scalable data collection. Application: Energy management and fault diagnostics across distributed facilities. Long-tail keywords: Power Xpert integration, meter expansion, scalable I/O expansion.
Get a Quick Quote for a Eaton PXM1K-212
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1K-212?
Enquire Now
FAQs
For installation, mount the PXM1K-212 in a Power Xpert Meter 1000 panel, ensure 60 Hz supply is present, and wire all DI, DO, and AO channels per the device diagram. Maintain adequate clearance for cooling and avoid over-torque on terminal screws. Verify compatibility with existing backplanes and mounting rails before energizing the system.
The module adds dedicated I/O close to equipment, reducing wiring and latency while increasing data fidelity. With 4 digital inputs, 2 digital outputs, and 2 analog outputs, it enhances real-time monitoring, fault detection, energy reporting, and automation capabilities within Power Xpert Meter 1000 ecosystems. This translates to faster decision-making and improved uptime.
Yes, the PXM1K-212 is designed to augment Power Xpert Meter 1000 networks. Ensure the host system supports 60 Hz operation and verify wiring schemes and firmware compatibility during integration. The compact form factor simplifies retrofits in existing installations without major panel modifications.
The product lists Compliances as Contact Manufacturer, so confirm CE, IP ratings, SIL compliance, and regional regulatory requirements with Eaton before deployment. This helps ensure safe operation, warranty validity, and alignment with your plant’s safety and environmental standards.
Expect reduced wiring costs and faster fault isolation due to closer I/O integration, which lowers downtime and maintenance effort. The 1-year warranty provides assurance while enabling scalable energy management and data collection that supports long-term OPEX savings through improved diagnostics and predictive maintenance.
