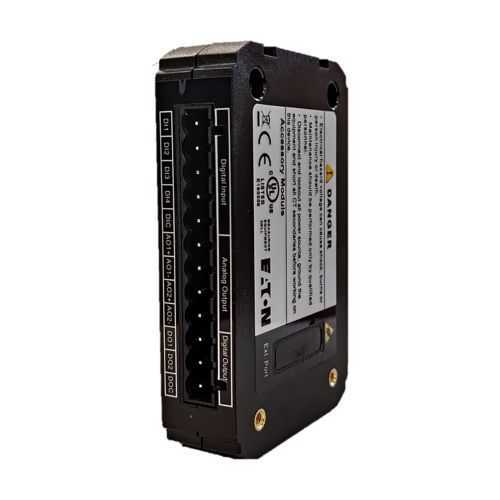

Eaton Power Xpert meter 1000 PXM1K-310 I/O Module - 60 Hz
Part Number: PXM1K-310
Quick Summary
Power Xpert meter 1000 I/O module from Eaton provides scalable I/O for precise energy metering in industrial facilities. For engineers, the challenge is integrating meters into existing control systems without causing downtime or data gaps. Certifications like CE, IP ratings, and SIL vary by region and application, so verify compliance with the manufacturer before deployment. The module supports 60 Hz systems and integrates with Power Xpert Meter 1000 software for real-time monitoring, alarming, and energy analytics. This translates to faster commissioning, improved data integrity, and lower total cost of ownership across plant operations.
Product Information
Extended Description
PXM1K-310 Eaton: Eaton Power Xpert meter 1000 I/O module, I/O Module Logic Address 1, 4 DI, 2 RO, 2 AI (4-20mA)
Product Name
Eaton Power Xpert meter 1000 I/O module
Catalog Number
PXM1K-310
UPC
786680173714
Product Length/Depth
3.5 in
Product Height
1 in
Product Width
2.25 in
Product Weight
0.25 lb
Warranty
1 year
Compliances
Contact Manufacturer
Type
I/O Module
Frequency rating
60 Hz
Power Systems Experience Center Tour – Metering Focus
Power Systems Experience Center Tour – Metering Focus
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1K-310
Feature: 4 DI, 2 RO, 2 AI (4-20 mA) I/O capability. Business Impact: Centralized metering inputs and outputs reduce wiring complexity and enable cohesive control strategies. Application: Ideal for retrofit projects in automation panels where space and clarity matter. Feature: Compact form factor (3.5 in L x 2.25 in W x 1 in H). Business Impact: Easier retrofit and panel integration with minimal footprint, accelerating deployment. Application: Suitable for crowded switchgear enclosures and modular panels. Feature: 60 Hz electrical specification. Business Impact: Reliable operation in standard North American and compatible international facilities, ensuring accurate energy measurements. Application: Widely adopted in industrial power management and energy analytics. Feature: Catalog PXM1K-310 with 1‑year warranty. Business Impact: Predictable support and protection against early failures, improving total cost of ownership. Application: Safe procurement for long-term plant upgrades. Feature: Software compatibility with Power Xpert Meter 1000 platform (e.g., software version 3.7.3). Business Impact: Seamless data integration and reporting, enabling real-time energy visibility and analytics. Application: Critical for continuous improvement programs in manufacturing and utilities. Feature: Logical addressing (Address 1) and “Delivery Type” I/O Module. Business Impact: Simplified system topology and straightforward installation within Eaton’s ecosystem. Application: Streamlined commissioning in multi‑module installations and scalable metering networks.
Get a Quick Quote for a Eaton PXM1K-310
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1K-310?
Enquire Now
FAQs
This PXM1K-310 module wires into the plant I/O network with 4 digital inputs, 2 relay outputs, and 2 analog inputs (4-20 mA). Use the specified logic address (1) and connect to the Power Xpert Meter 1000 system software for seamless data flow. Ensure 60 Hz compatibility and secure panel mounting to minimize downtime during retrofit.
Key specs include 60 Hz frequency rating, 4 DI, 2 RO, and 2 AI (4-20 mA) inputs. The module is designed for compact installations (3.5 in Ă— 2.25 in Ă— 1 in) and integrates with the Power Xpert Meter 1000 software for accurate energy data, alarms, and analytics.
Manufacturing, process industries, and utilities benefit through centralized energy metering, improved energy analytics, and scalable I/O for control applications. The module supports rapid deployment in crowded control panels and is ideal for facilities migrating to Eaton’s Power Xpert Meter 1000 platform.
Compliances are listed as Contact Manufacturer, so verify region-specific certifications (such as CE) with Eaton prior to purchase. SIL and IP ratings depend on application and enclosure; consult Eaton to confirm the exact certifications for your installation environment.
Benefits include faster commissioning, improved data quality, and centralized energy monitoring, which translate into reduced downtime and better energy management. The 1-year warranty provides protection against early failures, while software compatibility with Power Xpert Meter 1000 enables actionable insights and a clear path to documentation and compliance.
