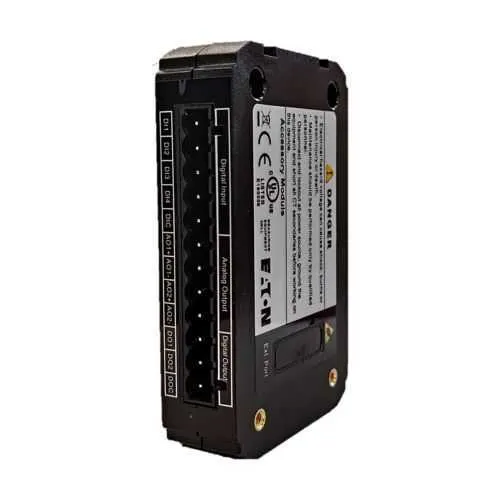

Eaton PXM1K-311 Power Xpert Meter 1000 I/O Module - 60 Hz
Part Number: PXM1K-311
Quick Summary
Power Xpert meter 1000 I/O module enables compact, real-time energy monitoring for industrial plants. Engineers often struggle with wiring complexity and data gaps when integrating meters into control systems. Compliance details are provided by the manufacturer and may include market-specific certifications; verify locally. With 60 Hz compatibility and a small 3.5x2.25x1 inch footprint, this module fits tight panel layouts and scalable metering within the Eaton Power Xpert ecosystem. The device’s compact form, 1-year warranty, and proven reliability translate into lower installation risk and improved energy management for manufacturing and process industries.
Product Information
Extended Description
PXM1K-311 Eaton: Eaton Power Xpert meter 1000 I/O Module Logic Address 1; 4 DI, 2 RO, 2 AI (0-20mA)
Product Name
Eaton Power Xpert meter 1000 I/O module
Catalog Number
PXM1K-311
UPC
786680174582
Product Length/Depth
3.5 in
Product Height
1 in
Product Width
2.25 in
Product Weight
0.25 lb
Warranty
1 year
Compliances
Contact Manufacturer
Type
I/O Module
Frequency rating
60 Hz
Power Systems Experience Center Tour – Metering Focus
Power Systems Experience Center Tour – Metering Focus
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1K-311
Feature: 4 digital inputs, 2 relay outputs, and 2 analog inputs (0-20 mA) enable direct sensing, switching, and analog measurement within the Power Xpert Meter 1000 system. Impact: reduces wiring complexity, improves data fidelity, and supports synchronous control, delivering measurable improvements in energy visibility and process control. Application: ideal for manufacturing lines seeking tighter energy metrics and streamlined panel wiring. Feature: 60 Hz compatibility and a compact 3.5 in x 2.25 in x 1 in footprint optimize deployment in standard electrical panels. Impact: saves panel space, enables rapid installations, and minimizes disruption during upgrades. Application: retrofit projects and new installs across industrial facilities. Feature: 1-year warranty and Eaton backing increase reliability and reduce lifecycle risk. Impact: lower maintenance surprises and faster risk mitigation. Application: critical energy monitoring in process industries and high-availability environments. Feature: Logic Address 1 and easy integration within the Power Xpert ecosystem improve configuration speed. Impact: faster commissioning, simpler asset management, and scalable metering. Application: large-scale energy programs and plant-wide automation projects.
Get a Quick Quote for a Eaton PXM1K-311
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1K-311?
Enquire Now
FAQs
To install PXM1K-311, mount the module in the panel and connect it to the Power Xpert Meter 1000 system. Assign Logic Address 1, wire four digital inputs, two relay outputs, and two analog inputs (0-20 mA) per the manual, and ensure the system is powered at 60 Hz. Verify communications with the meter and perform functional tests of inputs, outputs, and analog signals.
PXM1K-311 provides 4 digital inputs, 2 relay outputs, and 2 analog inputs (0-20 mA). It operates at 60 Hz and has a compact footprint of 3.5 by 2.25 by 1 inches, with a weight of 0.25 lb. Catalog number PXM1K-311 and a 1-year warranty accompany the module.
Yes. The module is designed for energy monitoring and panel automation within the Eaton Power Xpert Meter 1000 ecosystem. It supports direct sensing via DI, actuation via RO, and analog measurement via AI, enabling real-time energy data capture and improved control, all within a compact, panel-friendly form factor suitable for manufacturing and process environments.
Compliance details are provided by the manufacturer and may vary by market. For PXM1K-311, the listed status is 'Compliances: Contact Manufacturer,' so verify necessary approvals (safety, EMC, environmental) with Eaton before deployment in regulated environments to ensure regional regulatory alignment.
Using PXM1K-311 reduces wiring complexity and accelerates commissioning, delivering faster time-to-value for energy intelligence projects. The module’s 1-year warranty lowers maintenance risk, while real-time energy data from the Power Xpert Meter 1000 improves decision making, drive efficiency, and contribute to shorter payback periods on energy-saving initiatives.
