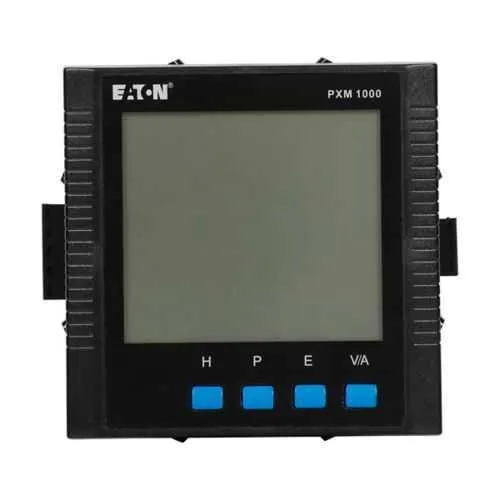

Eaton PXM1K-ETHMULTI Power Xpert Meter 1000 - Modbus TCP
Part Number: PXM1K-ETHMULTI
Quick Summary
Eaton PXM1K-ETHMULTI is a Power Xpert meter 1000 comms module with real-time energy data access for industrial facilities. Operators often struggle with data silos and slow fault detection across multiple meters. CE marking supports European safety compliance and the device is designed for 60 Hz industrial environments, promoting reliable interoperability over Modbus TCP, BACnet IP, and Ethernet IP networks. Together with Power Xpert Meter 1000 software v3.7.3, this module enables remote updates, streamlined commissioning, and lower total cost of ownership while delivering scalable energy visibility.
Product Information
Extended Description
PXM1K-ETHMULTI Eaton: Eaton Power Xpert meter 1000 communication module, 60 Hz, with Web/HTTP Push
Product Name
Eaton Power Xpert meter 1000 communication module
Catalog Number
PXM1K-ETHMULTI
UPC
786689353636
Product Length/Depth
2.9 in
Product Height
1 in
Product Width
2.25 in
Product Weight
0.2 lb
Type
Comm Card
Used with
PXM1000
Communication
Modbus TCP, BACnetIP, Ethernet IP
Power Xpert Meters
Power Xpert Meters
Power Xpert Meter 1000 meter software version 3.7.3
Eaton Specification Sheet - PXM1K-ETHMULTI
Technical datasheet Modbus Gateway function - TD150055EN
Feature → Business Impact → Application: Compact form factor (2.9 in x 2.25 in x 1 in) and light 0.2 lb weight enable easy panel mounting and minimal retrofit footprint, reducing install time and space requirements in new builds or retrofits. This translates to faster project timelines and lower labor costs during deployment across distributed facilities. Feature → Business Impact → Application: Multi-protocol support (Modbus TCP, BACnet IP, Ethernet IP) delivers seamless integration with existing SCADA, BMS, and energy management systems, enabling centralized monitoring, improved data accuracy, and faster decision-making in process industries and commercial campuses. Feature → Business Impact → Application: Comm Card delivery with PXM1000 compatibility simplifies field installation, reduces wiring complexity, and accelerates commissioning, delivering measurable reductions in maintenance overhead and startup risk. Feature → Business Impact → Application: Web/HTTP Push capability for remote notifications and firmware updates enhances proactive maintenance and uptime, lowering on-site visits and service costs while supporting secure, scalable operations. Feature → Business Impact → Application: Software compatibility with Power Xpert Meter 1000 (v3.7.3) ensures continuity with Eaton’s ecosystem, enabling future-proof data collection, cloud-ready reporting, and compliant energy management workflows in regulated environments.
Get a Quick Quote for a Eaton PXM1K-ETHMULTI
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM1K-ETHMULTI?
Enquire Now
FAQs
The PXM1K-ETHMULTI is a Comm Card that fits with the Power Xpert Meter 1000. Install it into the designated slot on themeter chassis, ensure 60 Hz operation compatibility, and connect the Modbus TCP, BACnet IP, and Ethernet IP network cables to your SCADA/BMS. The compact form factor minimizes panel space, simplifies wiring, and speeds commissioning; refer to the TD150055EN datasheet for detailed installation steps.
The module supports Modbus TCP, BACnet IP, and Ethernet IP, enabling direct communication with common industrial automation and energy-management systems. This interoperability reduces data silos, enables centralized monitoring, and supports scalable integration across existing plant networks without reworking current interfaces.
Yes. As a comms module for Power Xpert Meter 1000, it aggregates energy data from multiple meters, supports standard industrial protocols, and provides seamless integration with SCADA/BMS platforms. Its compact design and remote update capability help maintain performance across large deployments while minimizing on-site maintenance.
The product carries CE marking for European safety compliance and is designed for 60 Hz operation in industrial settings. For regulatory use, verify your installation conforms to local electrical codes and your facility’s safety requirements; consult the official Eaton datasheets for the latest standards references.
ROI comes from faster commissioning, reduced wiring and panel space, centralized energy data access, and lower maintenance trips due to Web/HTTP Push updates. By consolidating metering data with Power Xpert Meter 1000 software v3.7.3, you gain improved visibility, quicker fault detection, and enhanced energy optimization across facilities.
