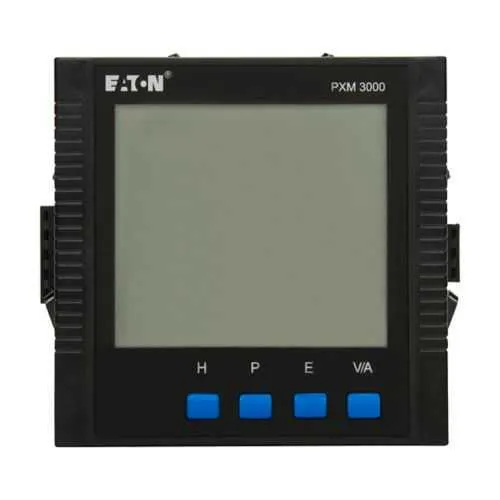

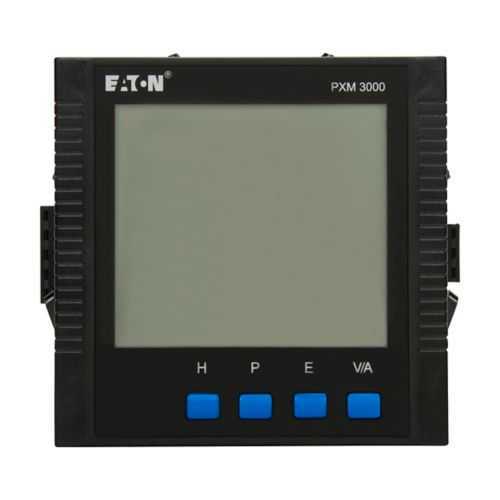

Eaton PXM3000MA15 Meter - CE Marked, UL Recognized
Part Number: PXM3000MA15
Quick Summary
The Eaton PXM3000MA15 meter is a compact power monitoring device designed for electrical systems and energy management. Engineers and procurement teams often struggle with data gaps and integration when scaling monitoring across multiple panels. It carries CE Marked compliance for European markets and UL Recognized certification for safety, helping with audits and supplier qualification. With Ethernet and Modbus TCP, and a wide supply range, it integrates with existing energy-management software while delivering precise, per‑phase insights. Its 2 GB memory, 128 cycle waveform capture, and per‑phase current/voltage views enable rapid diagnostics and proactive maintenance.
Product Information
Extended Description
PXM3000MA15 Eaton: Eaton PXM3000 meter with display, Power supply 100-277 Vac, Ethernet, Modbus TCP
Product Name
Eaton Power Xpert meter 3000
Catalog Number
PXM3000MA15
UPC
786689327248
Product Length/Depth
4 in
Product Height
4 in
Product Width
2.5 in
Product Weight
1 lb
Compliances
CE Marked
Certifications
UL Recognized
Type
Meter
Voltage rating
100-240 Vac or 110-250 Vdc
Memory
2 GB
%Thd - current and voltage
To 63rd
Individual harmonics magnitude
To 63rd
Waveform capture sampling rate
128/cycle
Impulse transient capture
None
ANSI % revenue accuracy
C12.20 (0.2)
Current sensor input
5A
Instrumentation
Watts Demand Metering Neutral Current Power-Real, Reactive, Apparent Va demand Watt Demand Wh --Positive & Negative Per Phase Power Factor View current & voltage phasors on display Current & Voltage - Per Phase
Logging
Time / date stamp
I/O capability
Analog Input/Output Prog. Pulse Output --Wh, Varh, Vah Digital Input/Output Sub Cycle- Sag/ Swell
Power Systems Experience Center Tour – Metering Focus
Power Systems Experience Center Tour – Metering Focus
Eaton Specification Sheet - PXM3000MA15
Feature: Compact form factor and wide power input; Business Impact: Simplifies installation across diverse panels and reduces wiring complexity, supporting 100-277 Vac operation and 110-250 Vdc capability. Application: Great for retrofit projects and new installations in manufacturing lines where space is at a premium. Feature: High-accuracy metering with harmonic analysis; Business Impact: Improves billing accuracy and regulatory compliance by reporting ANSI C12.20 (0.2) accuracy and harmonics up to the 63rd order. Application: Critical in data centers and process industries where power quality drives uptime. Feature: Rich data logging and waveform capture; Business Impact: Enables fault detection and trend analysis with 2 GB memory and 128/cycle sampling. Application: Ideal for predictive maintenance and energy optimization programs. Feature: Comprehensive I/O and energy metrics; Business Impact: Provides per‑phase power, Watt/VAR/Watt-hour metrics and programmable outputs for automation. Application: Supports demand metering and efficiency projects with seamless control. Feature: Displayed phasor visibility and multi‑parameter view; Business Impact: Enhances on-site commissioning and operator decision making. Application: Field technicians gain immediate insights during installation. Compatibility & installation Advantage: Ethernet and Modbus TCP support, 5A current sensor inputs, and standard 4x4x2.5 in form factor simplify integration with existing panels and energy-management systems, reducing project risk and deployment time.
Get a Quick Quote for a Eaton PXM3000MA15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM3000MA15?
Enquire Now
FAQs
The PXM3000MA15 supports Ethernet and Modbus TCP, enabling seamless integration with common energy management systems and SCADA environments. Its flexible input range (100-240 Vac or 110-250 Vdc) simplifies installation across varied facilities, while its 4x4x2.5 inch form factor fits standard panel spaces. This reduces wiring complexity and accelerates time-to-value for retrofit projects.
It delivers comprehensive power measurements with ANSI C12.20 accuracy at 0.2%, including per‑phase voltage, current, power factor, and demand metrics. Harmonics are tracked up to the 63rd order, and THD metrics cover both current and voltage. This level of precision supports accurate billing, compliance reporting, and detailed power quality analysis.
Yes. With 2 GB of memory, 128/cycle waveform capture, logging with time/date stamps, and per‑phase phasor displays, it provides the data granularity needed for data centers. Ethernet/Modbus TCP connectivity enables joins with energy dashboards, and its accurate metering supports capacity planning and peak-shaving strategies.
The meter is CE Marked for European market compliance and UL Recognized for safety certification. These certifications support procurement qualification, regulatory audits, and installation approvals across multinational facilities, reducing risk during commissioning and ensuring consistent safety standards across sites.
By delivering precise energy data, harmonics analysis, and reliable fault diagnostics, the PXM3000MA15 enables reduced energy waste, improved power quality, and proactive maintenance. Its seamless network integration and compact form factor minimize installation costs, while accurate metering supports billable energy audits and faster payback on energy-management initiatives.
