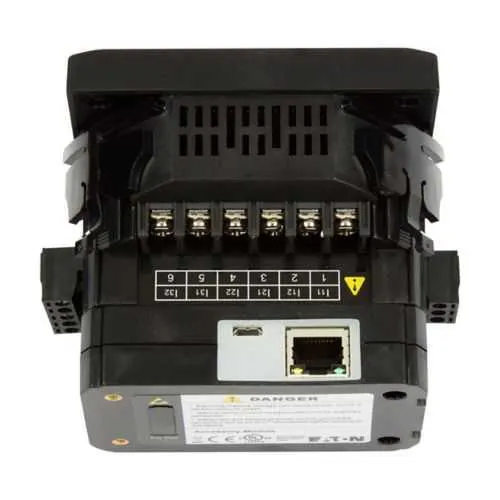

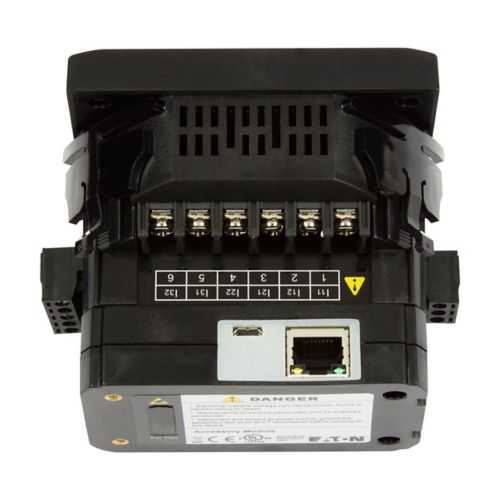

Eaton PXM3000TA15 Meter - UL Recognized & Modbus TCP
Part Number: PXM3000TA15
Quick Summary
Eaton PXM3000TA15 Meter is a web-enabled power quality meter for monitoring electrical distribution in facilities. When managing complex sites, limited visibility and fragmented data can slow maintenance and compliance efforts. This device is CE Marked and UL Recognized, offering interoperability through Modbus RTU/TCP, DNP3 RTU, and BACNet IP to simplify integration with EMS and building management systems. By delivering accurate energy data and event logging, the PXM3000TA15 supports energy management programs, utility reporting, and continuous improvements in power reliability. In short, it combines reliability, connect‑ability, and actionable insights for engineers and procurement teams.
Product Information
Extended Description
PXM3000TA15 Eaton: Eaton PXM3000 web enabled power quality meter without display, 5A/1A current input, Frequency range 45-65Hz, Built in RS-485 and Ethernet ports with Modbus RTU, DNP 3.0 RTU, Modbus TCP and BACNet IP
Product Name
Eaton Power Xpert meter 3000
Catalog Number
PXM3000TA15
UPC
786689327255
Product Length/Depth
4 in
Product Height
4 in
Product Width
2.5 in
Product Weight
1 lb
Compliances
CE Marked
Certifications
UL Recognized
Type
Meter
Voltage rating
100-240 Vac or 110-250 Vdc
Memory
2 GB
%Thd - current and voltage
To 63rd
Individual harmonics magnitude
To 63rd
Waveform capture sampling rate
128/cycle
Impulse transient capture
None
ANSI % revenue accuracy
C12.20 (0.2)
Current sensor input
5A
Instrumentation
Power-Real, Reactive, Apparent Current & Voltage - Per Phase Per Phase Power Factor Wh --Positive & Negative Neutral Current Va demand Watt Demand Watts Demand Metering View current & voltage phasors on display
Logging
Time / date stamp
I/O capability
Prog. Pulse Output --Wh, Varh, Vah Analog Input/Output Sub Cycle- Sag/ Swell Digital Input/Output
Feature: Web-enabled meter without a display, 5A/1A current input, and waveform capture at 128 samples per cycle → Business Impact: Real-time visibility into voltage sags, swells, and harmonics without local readouts, enabling quick fault isolation and remote troubleshooting → Application: Data centers and manufacturing lines requiring centralized monitoring. Feature: 2 GB memory and time/date stamped logging → Business Impact: Rich historical datasets support long-term energy analytics, trend analysis, and compliance reporting while reducing data gaps → Application: Facility energy dashboards and tariff analysis. Feature: Built-in RS-485 and Ethernet ports with Modbus RTU, DNP3 RTU, Modbus TCP, and BACNet IP → Business Impact: Seamless integration with existing EMS, SCADA, and BAS platforms, lowering integration costs and implementation time → Application: Multi-system environments spanning utilities, commercial buildings, and industrial plants. Feature: ANSI % revenue accuracy of C12.20 (0.2%) → Business Impact: High billing accuracy and regulatory compliance, minimizing revenue loss and dispute risk → Application: Submetering and main power monitoring with strict accuracy requirements. Feature: Compact form factor (4 in x 4 in x 2.5 in) and light weight (1 lb) with CE and UL certifications → Business Impact: Easy retrofit and compliant deployment in panel boards and existing enclosures, reducing installation time and component footprint → Application: Retrofit projects and new builds where space and certification matter.
Get a Quick Quote for a Eaton PXM3000TA15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM3000TA15?
Enquire Now
FAQs
The PXM3000TA15 accepts 100-240 VAC or 110-250 VDC and uses 5A current inputs. Mount the unit in a suitable panel, connect the current transformers in the proper phase sequence, then wire the RS-485 and Ethernet ports for Modbus RTU/TCP, DNP3 RTU, and BACNet IP. Configure network addressing, baud rate, and protocol mapping through your EMS or BAS interface.
The meter offers RS-485 with Modbus RTU, Ethernet with Modbus TCP, plus DNP3 RTU and BACNet IP. This wide protocol support enables direct interoperability with common energy management systems, building management systems, and SCADA platforms, reducing custom gateway needs and speeding commissioning.
The PXM3000TA15 provides ANSI revenue accuracy of C12.20 at 0.2%. This level of precision is critical for billing, energy procurement, and regulatory compliance. It ensures energy usage is measured and billed with minimal error, supporting accurate consumption reporting and tariff verification across meters in a facility.
Yes. With 128/cycle waveform capture, harmonic analysis up to the 63rd order, and granular per‑phase measurements, the PXM3000TA15 delivers detailed power quality data essential for data center reliability. Its web connectivity and EMS/BAS interoperability streamline monitoring, alerting, and energy optimization in mission-critical environments.
The meter is CE marked and UL Recognized, signaling compliance with European and North American safety standards. These certifications simplify procurement for multi-region deployments, enable safer field installations, and support customer audits and regulatory reporting for industrial facilities.
