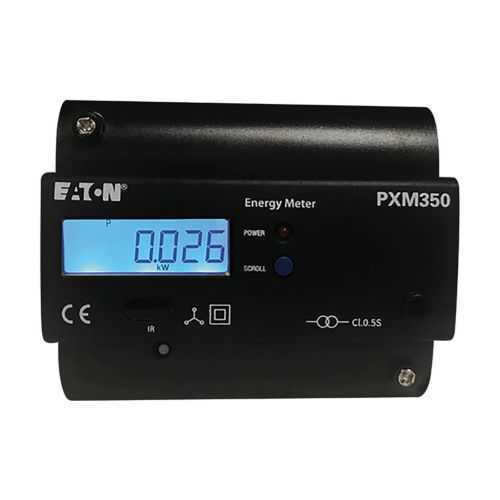

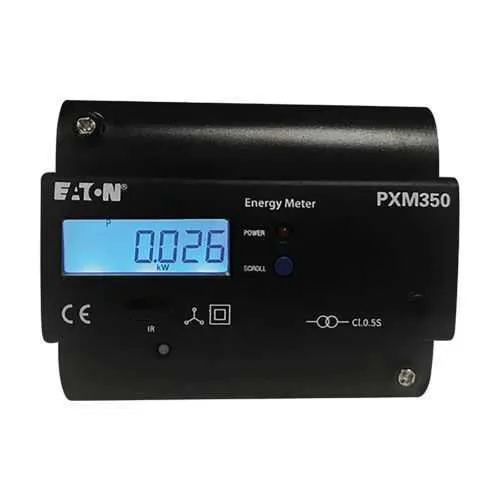

Eaton PXM350MA6121 Power Xpert meter 350 - Modbus Output
Part Number: PXM350MA6121
Quick Summary
Power Xpert meter 350 from Eaton measures true power, voltage, and current for industrial electrical panels. Many plants struggle with incomplete energy data and slow reporting, hindering optimization. UL Recognized, CE Marked RoHS compliant, and Modbus RTU support ensure reliable, regulator-ready operation. With per-phase energy metrics, TOU data, and a compact, field-ready form factor, it enables faster dashboards and smarter energy decisions. Built for rugged industrial environments, the meter ships with a compact footprint that fits crowded control spaces and minimizes wiring complexity. It’s designed for straightforward installation with standard current sensing options and a clear Modbus interface that integrates with existing PLCs and energy dashboards. For engineers and procurement teams, the PXM350MA6121 provides a reliable foundation for energy analytics, bill verification, and tariff optimization.
Product Information
Extended Description
PXM350MA6121 Eaton: Eaton PXM350 METER, 80/100/200MA CURRENT INPUT, PULSE OUTPUT, MODBUS RTU, TOU, 1 RELAY OUTPUT
Product Name
Eaton Power Xpert meter 350
Catalog Number
PXM350MA6121
UPC
786687035046
Product Length/Depth
3.8 in
Product Height
4.6 in
Product Width
5.9 in
Product Weight
0.85 lb
Warranty
1 year
Compliances
CE Marked RoHS Compliant
Certifications
UL Recognized
Type
Modbus output
ANSI % revenue accuracy
C12.20 (0.5)
Communications
Modbus
I/O capability
Pulse Output KYZ output
Instrumentation
Current & Voltage - Per Phase Va Wh Var Apparent Power Factor Watts
Output
Pulse output, modbus
Voltage rating
400Vac L-N, 690Vac L-L
Flexible current input ranges (80/100/200 mA) simplify sensor pairing and reduce wiring complexity, lowering installation costs and avoiding bespoke shunts. In practice this supports a wide range of CT ratios in motor drives and switchgear, enabling accurate revenue measurement across diverse assets. Pulse output with KYZ capability provides a robust pulse stream to PLCs and data loggers, improving demand metering, event-driven control, and energy accounting without additional hardware. Modbus RTU communications deliver plug-and-play integration with existing PLCs, SCADA, and energy dashboards, reducing engineering effort and speeding commissioning. TOU energy data and per-phase instrumentation give actionable insights for tariff optimization, energy budgeting, and compliance reporting, helping facilities meet regulatory requirements while pursuing cost reductions. The meter also includes voltage ratings of 400 Vac L-N and 690 Vac L-L, a 0.5% ANSI C12.20 revenue accuracy class, a single relay output for local alarms, and a compact footprint that fits tight panels while supporting straightforward retrofit and expansion. Coupled with UL Recognized, CE Marked RoHS compliance, and Eaton’s warranty, this device provides reliable performance with long-term serviceability in harsh environments and evolving standards.
Get a Quick Quote for a Eaton PXM350MA6121
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM350MA6121?
Enquire Now
FAQs
The PXM350MA6121 supports standard 400 Vac L-N and 690 Vac L-L connections with 80/100/200 mA current input ranges. Install per phase, connect the Modbus RTU interface to the PLC/SCADA network, and wire the pulse output (KYZ) and 1 relay as needed for alarms or control. The compact form factor simplifies panel fitment and minimizes wiring complexity.
Key specs include 400 Vac L-N and 690 Vac L-L voltage ratings, 80/100/200 mA current input, Modbus RTU communications, pulse output, TOU energy data capability, and ANSI C12.20 revenue accuracy of 0.5%. It also provides one relay output and per‑phase instrumentation including Va, Wh, Var, Apparent Power, Power Factor, and Watts.
Ideal for panel boards, switchgear, data centers, and manufacturing facilities that require accurate energy measurement, tariff optimization, and reliable data for energy dashboards. Its Modbus interface enables seamless integration with existing control systems, while TOU data supports demand management and regulatory reporting.
The meter is UL Recognized, CE Marked, and RoHS Compliant, ensuring regulatory readiness and environmental compliance across many markets. These certifications support safe operation in industrial environments and simplify procurement for compliant deployments.
ROI is driven by improved energy visibility, accurate billing with 0.5% revenue accuracy, and reduced field service due to straightforward Modbus integration and pulse outputs for remote monitoring. The device carries a 1-year warranty and Eaton’s support, contributing to predictable maintenance costs and long-term reliability.
