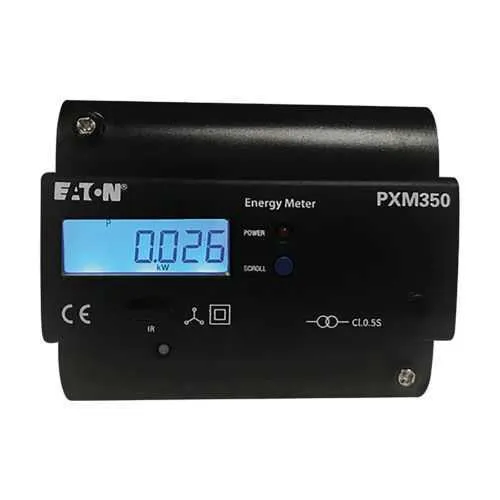

Eaton PXM350MA6521-MC Power Meter - UL Recognized
Part Number: PXM350MA6521-MC
Quick Summary
Power Xpert meter 350 provides precise energy monitoring for industrial and commercial electrical systems. Engineers often struggle with fragmented data and slow integration when meters sit outside their control panels. This model is CE marked, RoHS compliant, and UL Recognized, with MODBUS RTU, TOU, pulse output, and a relay output to streamline analytics. By aligning with your energy management strategy, it enables faster fault isolation, better demand response, and measurable reductions in energy waste, all while simplifying installation and ongoing compliance across multi-site facilities.
Product Information
Extended Description
PXM350MA6521-MC Eaton: Eaton Power Xpert meter 350, 5 A/1 A, Current input, Pulse output, MODBUS RTU, TOU, 1 Relay output
Product Name
Eaton Power Xpert meter 350
Catalog Number
PXM350MA6521-MC
UPC
786687079460
Product Length/Depth
3.8 in
Product Height
3.75 in
Product Width
4.5 in
Product Weight
0.85 lb
Warranty
1 year
Compliances
RoHS Compliant CE Marked
Certifications
UL Recognized
Type
Modbus output
ANSI % revenue accuracy
C12.20 (0.5)
Communications
Modbus
I/O capability
Pulse Output KYZ output
Instrumentation
Current & Voltage - Per Phase Va Watts Wh Var Apparent Power Factor
Output
Pulse output, modbus
Voltage rating
400Vac L-N, 690Vac L-L
Feature → Business Impact → Application: 5 A/1 A current input with a 400Vac L-N and 690Vac L-L rating enables direct compatibility with standard three-phase electrical feeds, reducing the need for additional transformers and simplifying panel integration in retrofit projects. This translates to faster installation and lower upfront costs for data capture across commercial and industrial sites. Application: panel builders and retrofit teams benefit from plug-and-play reliability when upgrading legacy meters. Feature → Business Impact → Application: MODBUS RTU data output delivers real-time energy data to EMS/BMS platforms, enabling centralized monitoring and automated demand management. Application: data centers, manufacturing floors, and building automation projects. Feature → Business Impact → Application: TOU metering and a single relay output enable time-based energy optimization and simple shutdown signaling, cutting peak demand charges and improving operational efficiency. Application: utilities-adjacent facilities and campus networks. Feature → Business Impact → Application: I/O capability including KYZ pulse output supports external metering and integrated control schemes, reducing wiring complexity and improving data fidelity. Application: metering panels and submetering across multi-tenant buildings. Feature → Business Impact → Application: Compliance-ready construction with UL Recognized, CE Marking, and RoHS compliance minimizes regulatory risk and supports multinational deployment. Application: global manufacturing operations and international installations. Feature → Business Impact → Application: Compact form factor with documented dimensions and modest weight simplifies retrofits and enclosure design, enabling faster project delivery and reduced enclosure tooling.
Get a Quick Quote for a Eaton PXM350MA6521-MC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM350MA6521-MC?
Enquire Now
FAQs
The PXM350MA6521-MC uses a 5 A/1 A current input, supports 400Vac L-N and 690Vac L-L, and features MODBUS RTU and pulse output. It is designed for straightforward panel mounting and can be wired as a submeter in existing switchgear. Ensure correct phase connections and consider KYZ pulse wiring for external counting devices.
This meter provides per-phase current and voltage measurements with Va, Watts, Wh, Var, Apparent Power, and Power Factor. It carries ANSI C12.20 revenue accuracy at 0.5%, and offers TOU metering plus a single relay output for alarms or control signals, supporting reliable energy analytics and billing-grade reporting.
Ideal for industrial facilities, commercial buildings, data centers, and campus networks requiring robust energy analytics, demand management, and submetering. Its MODBUS RTU interface integrates with EMS/BMS platforms, while the relay output supports simple automation tasks, making it suitable for retrofit projects and new builds alike.
The meter is UL Recognized, CE Marked, and RoHS compliant, indicating regulatory readiness for global deployment. This combination minimizes compliance risk, facilitates cross-market installations, and supports maintenance and warranty audits across facilities in different regions.
With a 1-year warranty and a compact, durable design, maintenance needs are minimal. ROI is accelerated through improved energy visibility, reduced manual data collection, and better demand management via MODBUS integration and TOU metering, leading to lower energy costs and faster project payback.
