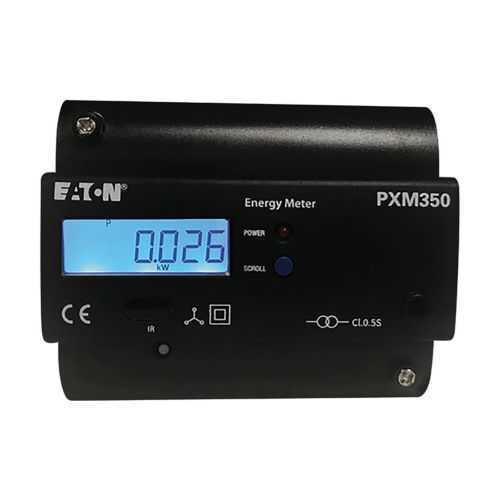

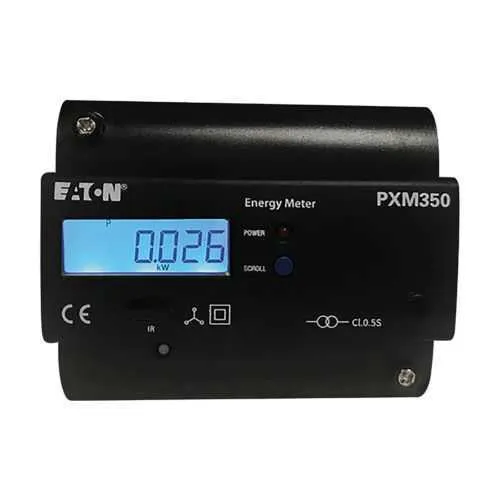

Eaton Power Xpert meter PXM350MA6541 - UL Recognized
Part Number: PXM350MA6541
Quick Summary
Power Xpert meter PXM350MA6541 provides real-time branch circuit monitoring for data centers, manufacturing facilities, and commercial buildings. Engineers often struggle with hidden energy waste, unbalanced loads, and unpredictable demand charges that erode operating margins. UL Recognized, RoHS Compliant, and CE Marked standards help ensure safety, environmental compliance, and global applicability across sites. By combining Modbus RTU communications with TOU energy tracking and flexible outputs, this meter enables smarter energy management, easier integration with existing SCADA or EMS systems, and clearer ROI through accurate measurement and reporting.
Product Information
Extended Description
PXM350MA6541 Eaton: Eaton Power Xpert branch circuit monitor meter base, 5A/1A CURRENT INPUT, PULSE OUTPUT, MODBUS RTU, TOU, BIDIRECTIONAL ENERGY, 4TH CURRENT INPUT, 1 RELAY OUTPUT
Product Name
Eaton Power Xpert meter 350
Catalog Number
PXM350MA6541
UPC
786687035169
Product Length/Depth
3.8 in
Product Height
4 in
Product Width
4.5 in
Product Weight
0.85 lb
Warranty
1 year
Compliances
RoHS Compliant CE Marked
Certifications
UL Recognized
Type
Modbus output
ANSI % revenue accuracy
C12.20 (0.5)
Communications
Modbus
I/O capability
Pulse Output KYZ output
Instrumentation
Apparent Power Factor Current & Voltage - Per Phase Wh Var Watts Va
Output
Pulse output, modbus
Voltage rating
400Vac L-N, 690Vac L-L
Feature: 5A/1A current input and 4th current input with a pulse output KYZ; Business Impact: scalable current sensing and revenue signaling capabilities support precise energy accounting and demand management; Application: modify measurement configuration for multi-circuit panels without replacing hardware. Feature: Modbus RTU communications and TOU energy measurement; Business Impact: seamless integration with remote monitoring and billing systems, enabling real-time charges and demand response; Application: deploy in facilities with centralized energy management for improved load visibility. Feature: Bidirectional energy tracking with phase-by-phase instrumentation; Business Impact: identify power quality issues, optimize energy purchase strategies, and reduce waste; Application: per-phase monitoring in data centers or manufacturing lines. Feature: 400VAC L-N and 690VAC L-L voltage rating; Business Impact: broad compatibility with today’s commercial and industrial electrical networks; Application: retrofit or new installations across mixed voltage environments. Feature: Pulse output for external signaling and a single relay output for alarms or control; Business Impact: supports event-driven automation and alerting to maintenance teams; Application: integrate with PLCs or building management systems for proactive maintenance. Certification and warranty context: UL Recognized, RoHS Compliant, CE Marked with a 1-year warranty provide assurance of reliability and regulatory compliance across global sites.
Get a Quick Quote for a Eaton PXM350MA6541
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM350MA6541?
Enquire Now
FAQs
The PXM350MA6541 installs on a meter base with 5A/1A current inputs and a 4th current input option. Connect the pulse output KYZ, MODBUS RTU bus, and power connections per the Eaton installation guide. The unit supports l-N and l-L voltage configurations up to 400Vac and 690Vac, enabling straightforward integration into existing panels without extensive rewiring.
Key specs include 5A/1A current input, 4th current input, pulse output KYZ, MODBUS RTU, TOU energy, bidirectional energy, 1 relay output, 400Vac L-N, and 690Vac L-L voltage rating. It is UL Recognized, RoHS Compliant, and CE Marked, with a 1-year warranty. This combination supports accurate energy tracking and reliable remote communication.
Yes. The meter provides per-phase instrumentation, TOU energy measurement, and Modbus connectivity, enabling real-time energy visibility and cost control. Its bidirectional energy capability supports downstream power management strategies, while the pulse output and relay facilitate alarms and automated responses in data centers and manufacturing environments.
The device carries UL Recognized status, RoHS compliance, and CE marking, ensuring safety, environmental stewardship, and compliance with European and global regulations. These certifications support cross-border deployments and easier procurement within regulated industries.
The PXM350MA6541 delivers improved energy visibility, enabling precise demand management and TOU optimization, which reduces energy costs and helps meet regulatory reporting requirements. Its modular inputs and standard Modbus interface simplify maintenance and integration with existing EMS or SCADA systems, lowering total cost of ownership over time.
