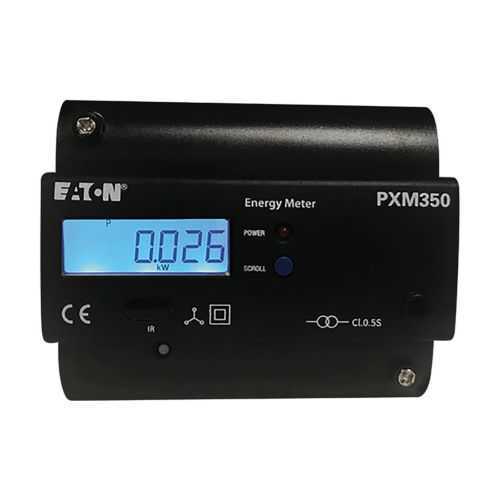

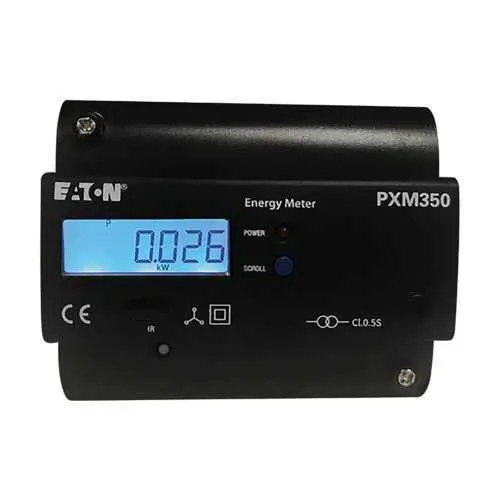

Eaton PXM350MA6R21 Power Xpert Meter 350 - UL Recognized
Part Number: PXM350MA6R21
Quick Summary
Eaton Power Xpert meter 350 is a precise energy monitor ideal for panel boards and facility energy management. It helps you overcome opaque utility bills and untracked demand charges by delivering clear, actionable data. The device carries CE Marked and RoHS compliant certifications, with UL Recognized certification for safety and reliability in demanding environments. By combining Modbus RTU communications and TOU metering with pulse output, you gain seamless integration with existing energy-management software and measurable savings. Its Rogowski coil input enables flexible, non-invasive current sensing, reducing installation time and equipment intrusion.
Product Information
Extended Description
PXM350MA6R21 Eaton: Eaton Power Xpert branch circuit monitor meter base, ROGOWSKI COIL INPUT, PULSE OUTPUT, MODBUS RTU, TOU, 1 RELAY OUTPUT
Product Name
Eaton Power Xpert meter 350
Catalog Number
PXM350MA6R21
UPC
786687035190
Product Length/Depth
4.6 in
Product Height
3.75 in
Product Width
4.5 in
Product Weight
0.85 lb
Warranty
1 year
Compliances
CE Marked RoHS Compliant
Certifications
UL Recognized
Type
Modbus output
ANSI % revenue accuracy
C12.20 (0.5)
Communications
Modbus
I/O capability
Pulse Output KYZ output
Instrumentation
Current & Voltage - Per Phase Wh Apparent Power Factor Va Watts Var
Output
Pulse output, modbus
Voltage rating
400Vac L-N, 690Vac L-L
Power Systems Experience Center Tour – Metering Focus
Power Systems Experience Center Tour – Metering Focus
Eaton Specification Sheet - PXM350MA6R21
Rogowski coil input enables flexible current measurement without bulky CTs, simplifying retrofits and reducing hardware costs. This approach supports compact meter bases and non-invasive installation in crowded panels. Modbus RTU communications ensure reliable, interoperable data exchange with existing SCADA, energy management software, and PLCs. The meter’s Modbus interface enables remote configuration, data logging, and alarm integration in industrial networks. TOU metering helps capture time-of-use energy profiles for accurate demand charges and variable-rate programs. Paired with per‑phase measurement and energy data (Wh, Va, Watts, Var), it provides actionable insights for optimizing run times and peak shaving. I/O options include KYZ pulse output for revenue-grade demand data and a single relay output for local signaling or control. This combination supports straightforward automation and rapid response to energy events. Measured values cover comprehensive electrical parameters including current & voltage per phase, and 400Vac L-N / 690Vac L-L voltage ratings. With ANSI C12.20 revenue accuracy of 0.5%, CE and RoHS compliance, and UL Recognition, the PXM350MA6R21 delivers dependable performance with trusted safety.
Get a Quick Quote for a Eaton PXM350MA6R21
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM350MA6R21?
Enquire Now
FAQs
The PXM350MA6R21 uses Rogowski coil input for flexible, non-invasive current sensing, enabling easier retrofits in crowded panels. It supports 400Vac L-N and 690Vac L-L voltage ratings and Modbus RTU communications for integration with existing systems. Ensure proper coil placement and adherence to insulation and enclosure requirements during installation.
Key specs include current and voltage measurements per phase, Wh, Va, Watts, Var metrics, 400Vac L-N and 690Vac L-L voltage ratings, Modbus RTU communications, TOU metering, KYZ pulse output, and one relay output. The device offers ANSI C12.20 revenue accuracy at 0.5%, suitable for revenue-grade energy monitoring.
Ideal for industrial facilities, manufacturing lines, and large panels where energy management, submetering, and demand control are critical. It suits energy management systems (EMS), SCADA integrations, and panel-board retrofits requiring reliable Modbus connectivity and time-of-use metering for cost optimization.
The meter is CE Marked and RoHS Compliant, and UL Recognized, ensuring compliance with safety and environmental standards. These certifications support safe installation in industrial environments and reliable integration with existing electrical systems.
The meter’s compact, lightweight form factor and Rogowski coil input reduce installation time and hardware costs. With Modbus RTU connectivity and TOU metering, it enables proactive energy analytics and faster fault detection, contributing to lower energy costs and a clear return on investment over time.
