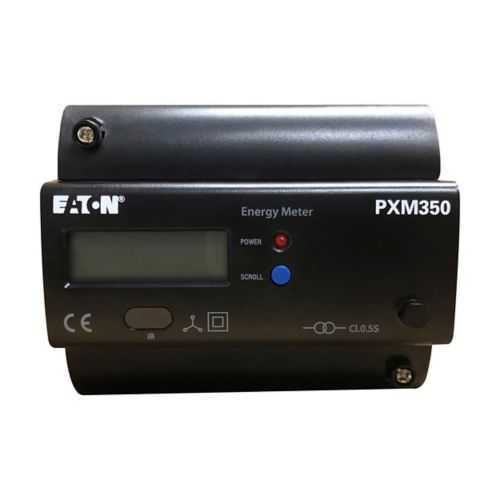

Eaton PXM350MA6R41 Power Xpert Meter 350 - UL Recognized
Part Number: PXM350MA6R41
Quick Summary
Power Xpert meter 350 from Eaton provides precise energy measurement for commercial and industrial electrical systems. Engineers often struggle with fragmented data, limited visibility into energy use, and difficult integration with control systems. It carries UL Recognized, CE Marked, and RoHS Compliant certifications, supporting safe, compliant procurement. Its Modbus RTU communication, TOU features, and pulse output help optimize energy costs and simplify reporting, empowering energy management programs and seamless SCADA integration for better operational insight.
Product Information
Extended Description
PXM350MA6R41 Eaton: Power Xpert meter 350, ROGOWSKI COIL INPUT, PULSE OUTPUT, MODBUS RTU, TOU, BIDIRECTIONAL ENERGY, 4TH CURRENT INPUT, 1 RELAY OUTPUT
Product Name
Eaton Power Xpert meter 350
Catalog Number
PXM350MA6R41
UPC
786687035015
Product Length/Depth
3.6 in
Product Height
4.25 in
Product Width
2.9 in
Product Weight
0.64 lb
Compliances
RoHS Compliant CE Marked
Certifications
UL Recognized
Type
Modbus output
ANSI % revenue accuracy
C12.20 (0.5)
Communications
Modbus
I/O capability
Pulse Output KYZ output
Instrumentation
Var Va Apparent Power Factor Current & Voltage - Per Phase Watts Wh
Output
Pulse output, modbus
Voltage rating
400Vac L-N, 690Vac L-L
Modbus RTU output enables straightforward integration with existing SCADA and energy management systems, reducing data gaps and enabling centralized monitoring. Business impact: faster decision cycles and improved accuracy in energy accounting across multiple devices and feeders. Application: data centers and manufacturing floors that rely on reliable remote readouts and real-time alarming. Pulse output (KYZ) and a relay output provide compatible signaling for demand management and external event triggering. Business impact: automated billing verification and streamlined demand-response workflows. Application: busy electrical rooms needing simple integration with external meters and control schemes. Rogowski coil input offers flexible current measurement without intrusive CTs, simplifying retrofit projects. Business impact: lower installation time and reduced wiring complexity. Application: retrofits in legacy systems and tight panel spaces. A fourth current input augments phase current monitoring, improving accuracy in 3-phase 4-wire systems with complex loads. Business impact: better power quality data and reduced revenue-metering risk. Application: mixed-load facilities with harmonics or high inrush. TOU metering capability combined with bidirectional energy measurement supports proactive energy cost control. Business impact: precise time-based billing and optimized peak-shaving strategies. Application: commercial buildings, data centers, and plants pursuing energy-management-driven ROI. The meter supports 400Vac L-N and 690Vac L-L voltages, broadening compatibility with global electrical standards. Business impact: fewer compatibility concerns during procurement. Application: international installations and multi-site rollouts. Compact form factor with clear electrical ratings and robust RoHS/CE/UL certifications facilitates procurement and compliance. Business impact: faster approvals, lower risk, and safer operation. Application: procurement teams seeking risk-averse, standards-compliant meters. In summary, PXM350MA6R41 combines comprehensive electrical metrics with easy integration and global compatibility, delivering measurable efficiency gains and improved data integrity for energy programs and compliance reporting.
Get a Quick Quote for a Eaton PXM350MA6R41
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PXM350MA6R41?
Enquire Now
FAQs
The PXM350MA6R41 is designed for three-phase applications with an additional fourth current input for CT monitoring. Connect the Modbus RTU interface to your SCADA/BMS network, wire the Rogowski coil input where flexible current sensing is required, and link the pulse output to external counters if needed. Verify wiring against the 400Vac L-N / 690Vac L-L ratings and confirm UL/CE/RoHS compliance before energizing.
The meter adheres to ANSI C12.20 with a revenue accuracy of 0.5%. This rating indicates high measurement fidelity suitable for revenue-grade metering in energy management and cost allocation. Confirm installation conditions to maintain accuracy, including proper CT ratios and wiring integrity.
Yes. The meter supports Time-of-Use metering and bidirectional energy measurement, enabling detailed usage profiling and demand management in data centers. Its Modbus RTU output simplifies integration with DC monitoring systems, and the pulse output can feed external energy counters for verification and billing reports.
The PXM350MA6R41 is UL Recognized, CE Marked, and RoHS Compliant. These certifications simplify procurement, ensure compliance with safety standards, and reduce regulatory risk for global installations.
By delivering precise energy data, TOU capabilities, and seamless SCADA integration, the meter enables accurate billing, improved energy management decisions, and potential reductions in peak demand charges. Regular verification of wiring, firmware updates (via manufacturer resources), and monitoring of Modbus communications ensure sustained performance and a favorable ROI.
